28 "Window Channel Balances

Home Owner from USA

Aug 27, 2014 2:33 pm

I need two 28" assembled window balances. There is a stamped marking 2740 H.F on it .
Looking at your website it looks like your 28" Series 385 Channel Balance option 2740 will fit . But I think the shoe is 15-005. The shoe is 1 " like that in your catalog page 'Channel-Balance-Shoe/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-004 '

Please let me know if these are the ones.

6 Replies

Tom from SWISCO

Aug 27, 2014 2:59 pm

I'm afraid your images didn't come through. You can try uploading again, but you may not need to. If you think you have the Series 385 but with a 15-005 shoe, could our Series 380 work? That's essentially what a Series 380 is!

Quick Learner from San Diego

Aug 27, 2014 9:40 pm

I have uploaded the images.

Thanks,

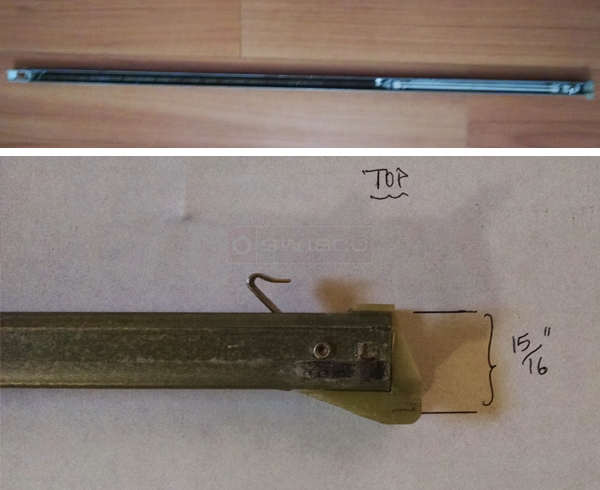

User submitted photos of a window balance.

Quick Learner from San Diego

Aug 27, 2014 9:42 pm

Uploaded images.

Quick Learner from San Diego

Aug 27, 2014 9:44 pm

In addition the top the of window frame has a broken piece. Would you have this piece ?

Thanks,

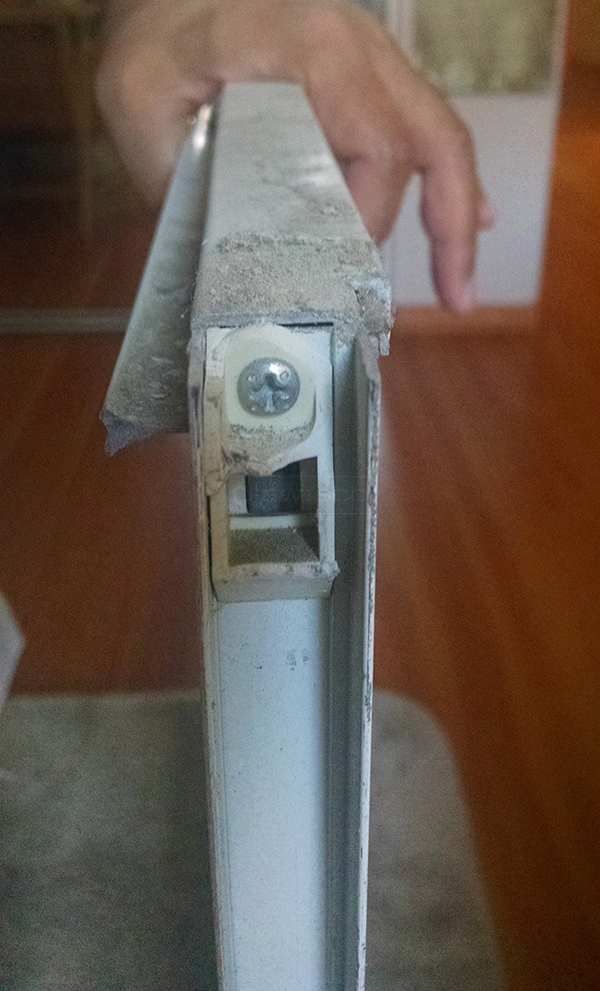

User submitted a photo of window hardware.

Paul from SWISCO

Aug 29, 2014 9:37 am

For the balance, it appears the Series 350 is the best match, especially since the shoe's depth is 15/16". It likely used to be 1" but simply wore down a little over time. The top attachment for the Series 380 has wings, but I think you can just clip them off if they get in the way.

As for the top sash guide, see our 18-009 and see if that is a match.
