Need new crank, window slide and hinge : SWISCO.com

Home Owner from Kiawah Sc 29455

Jan 12, 2026 12:49 pm

Hi I am looking for the correct parts for replacement on this Anderson window for my window installer. The crank is broken and the henges are rusted and need to be replaced. The size of the window is
23.75 w
66.75 length
It is a right hand open window. Which parts do you suggest I should order?

1 user uploaded image

6 Replies

Casey from SWISCO

Jan 14, 2026 8:44 am

Hello,

Your operator resembles the Andersen 39-146. We also offer the 39-147 opposite-handed version. Review the specifications below to confirm. See the 39-286 handle if needed.

Dimensions for 39-146

As for the hinges, take a look at the 36-048 hinge set. As long as the 10" long base that attaches to the window sill matches yours, you should be good to go. Thanks for posting!

Detail of 36-048

Home Owner from Kiawah Sc 29455

Jan 14, 2026 3:58 pm

Hi Casey,

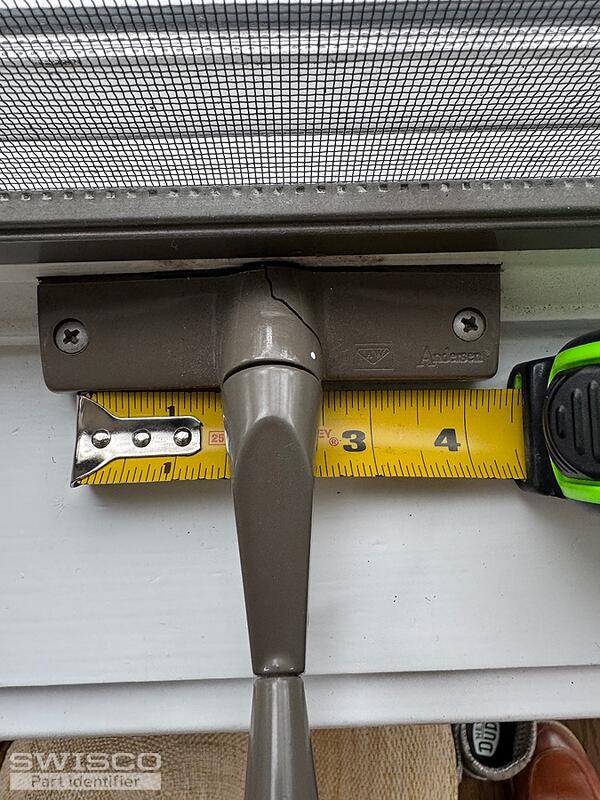

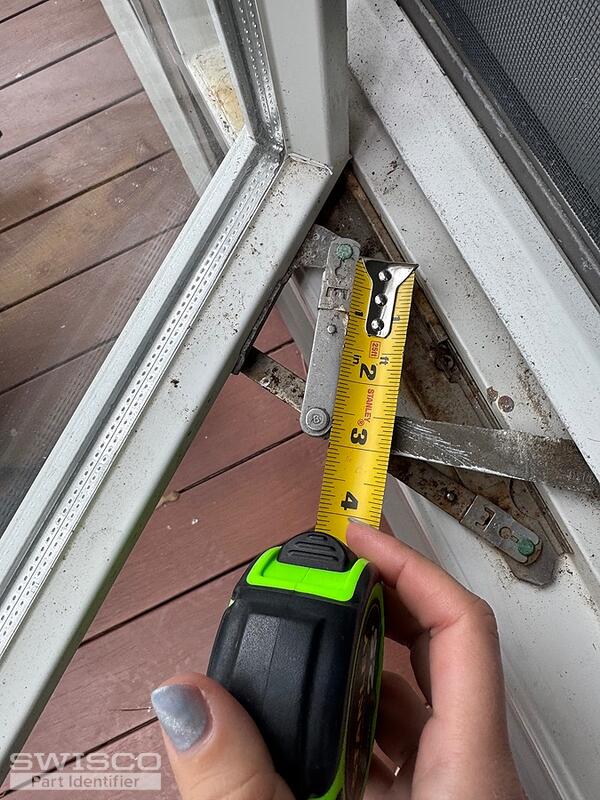

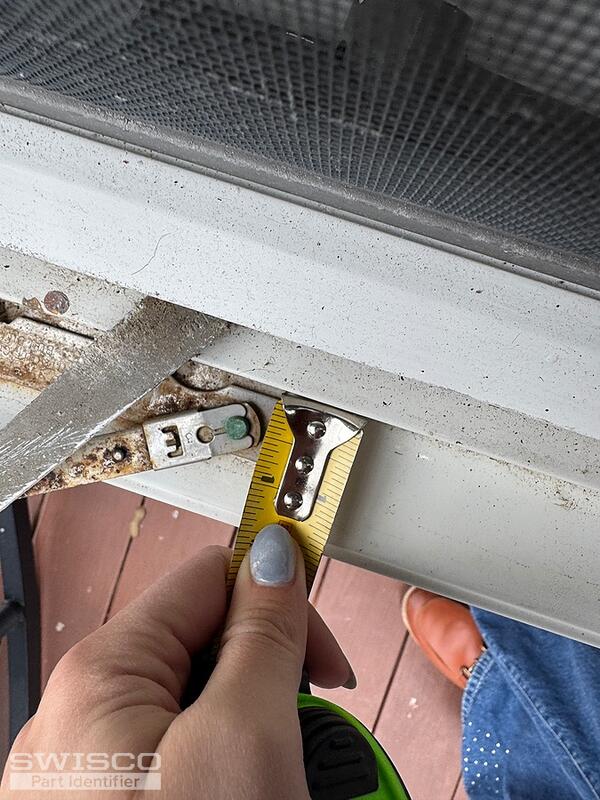

Thanks for your help. I have no clue what I'm doing? so I took more measurement photos that will hopefully help determine a better fit because the current operator measurements are a little different. For the hinge set, my current base is closer to 11 inches. Do you have another left opening hinge set that would fit this better?

Thanks,

Natalie

5 user uploaded images

Casey from SWISCO

Jan 15, 2026 9:24 am

The next size that we carry would have a 14" base, but the 10" 36-048 will still work as long as you replace the top and bottom hinges. Note that the range that the window opens may be slightly reduced.

Home Owner from Kiawah Sc 29455

Jan 16, 2026 8:55 am

Thanks! Which top hinge parts do you recommend?

Casey from SWISCO

Jan 16, 2026 9:15 am

The 36-048 comes with two hinges, one for the top and one for the bottom of the sash.
