I ordered a centered keyed handle set, 82-030A, and the original lock assembly on the door does not match. The distance between the two screws on my lock is 7 5/16", and the measurement between those two screws is just shy of 4". I didn't know that the components inside the door, and the frame had to be changed as well. So, I need the other parts to make the changeover.
What locking mechanism goes with the part I ordered?

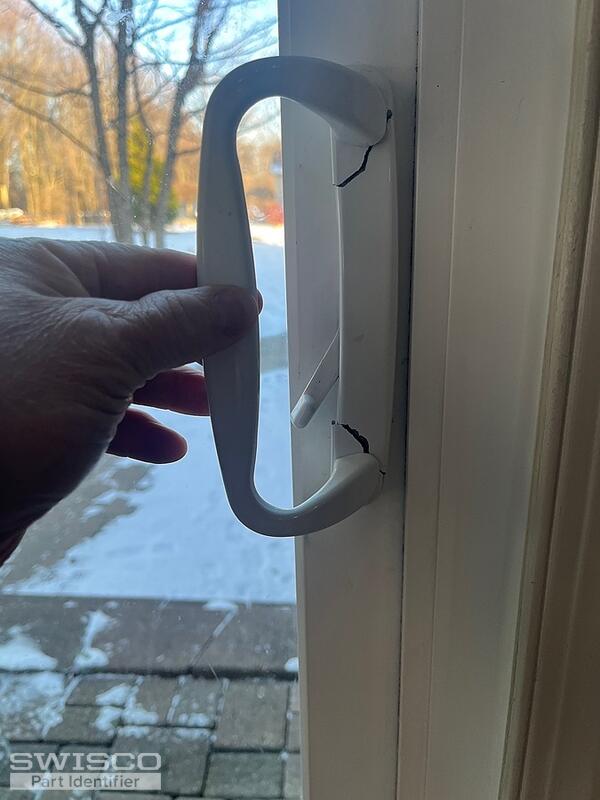

Broken door handle
Handy Person from Ohio
Jan 12, 2026 5:02 pm
4 user uploaded images
2 Replies
Dave Sr. from SWISCO
Jan 15, 2026 9:02 am
Hello,
Your photos resemble the keyed 82-081 handle set, but the hole spacing measures 4-15/16" on center. Take a look at the specifications below, along with the related hardware, to see if this might be the correct replacement. Thanks for posting!
Dimensions for 82-081
