sash balance (very old)

Question

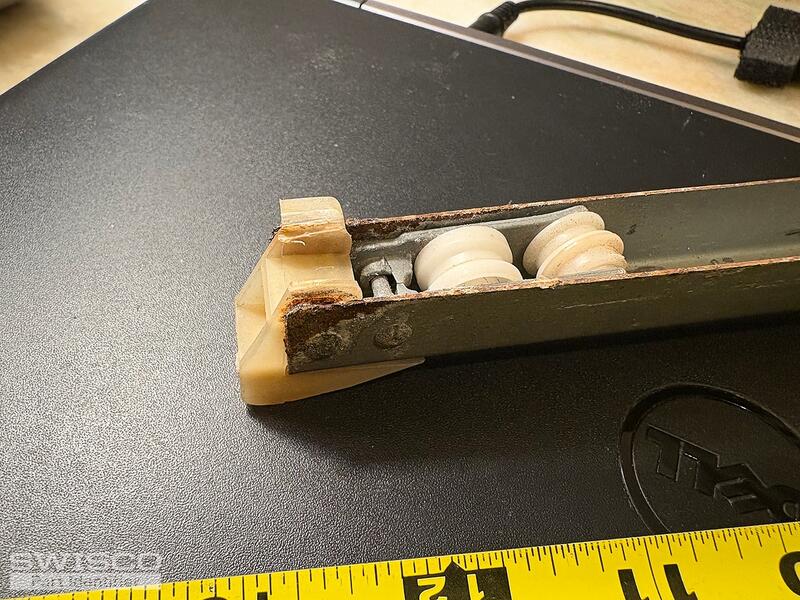

no numbers or markings
the metal channel is 1/2 inch inside width 5/8 overall depth 24 inches long not including plastic bits
windows are 24 x 50( heavy)

Casey · Accepted Answer

Hello,

It looks like your balance uses the 19-041 top fitting and possibly the 15-004 bottom fitting, depending on how the 1-3/32" depth compares to yours. We can supply these balances, but it will need to be a custom order. Since there is no stamp code on your balance, we'll need ot know the exact weight of the sash that they support. We'll also need to know the number of balances you need, with the minimum being two. Thank you!

View of the opposite side of 19-041

Dimensions for 19-041

Alternate view of 15-004
