Sliding door double roller

Question

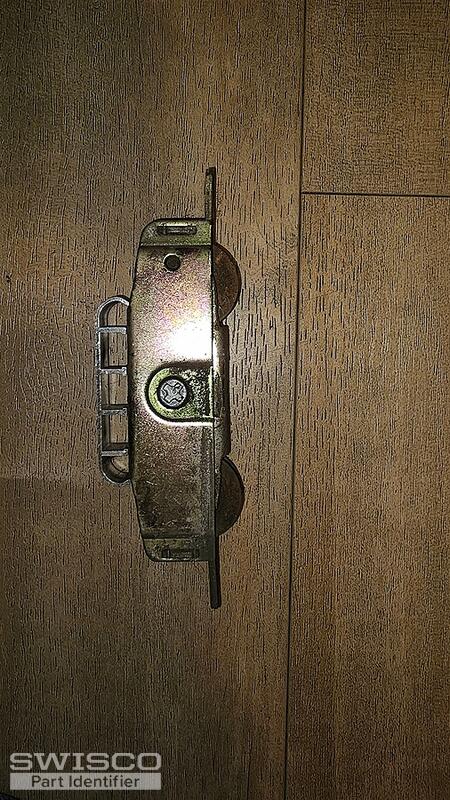

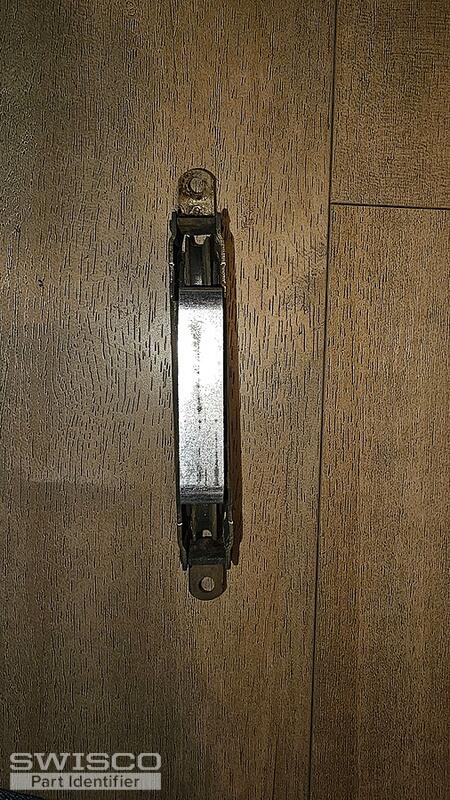

Make of door is unknown manufacturer. Roller details are:
Mounting screw holes are ¼" diameter (countersunk) and 5¾" apart.
Wheels are 3" apart
Frame is 4 5/8 " x 1¼ x ¹¹/¹6 (not including the 7/16" tall extruded aluminum spacer on the top, which could be "removed" and added to new roller assembly).
Wheel is steel. 1¼" diameter x 5/16" wide x 3/16" wide groove ( 1/8 deep)

Jasmine · Accepted Answer

Thanks for your post! This patio door roller reminds me of the 81-018 Sliding Patio Glass Door Tandem Roller. To determine if this is the correct replacement match, carefully double check the dimensions below.

We do not sell the bracket on the top of the roller, so you'll need to reuse it for the installation.

Alternate image for 81-018
