Window Balance / channel

Handy Person from Matewan, WV 25678

Jan 13, 2026 9:16 pm

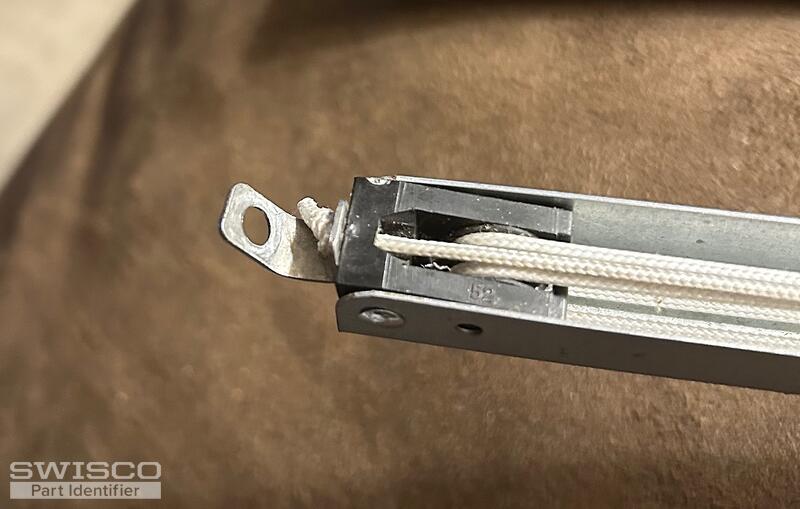

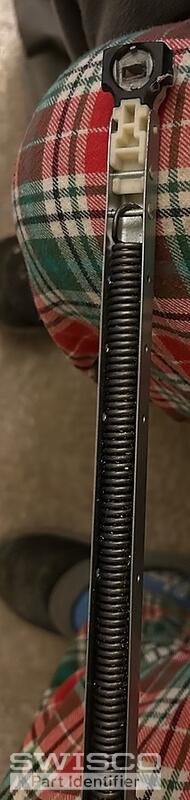

We need one of these window channel/balance, one is missing from a used window we purchased. Here are pictures of each end, the channel itself is 28 inches, not including the ends.

3 user uploaded images

4 Replies

Jasmine from SWISCO

Jan 14, 2026 11:02 am

Thanks for your post! I'm confident we can supply the replacement for this balance but I'll need to see a clearer photo of the top attachment. It is hard to make out from the photos, unfortunately.

Please let me know if you have any questions.

Quick Learner from Matewan, WV

Jan 14, 2026 11:10 pm

We need one of these window channel/balance, one is missing from a used window we purchased. Here are pictures of each end, the channel itself is 28 inches, not including the ends.

3 user uploaded images

Jasmine from SWISCO

Jan 15, 2026 11:53 am

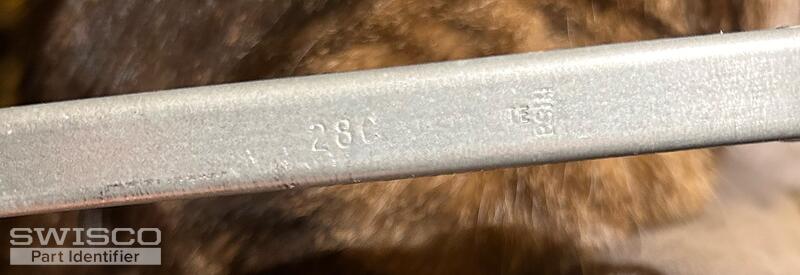

Thanks for reaching out! This window balance can be replaced with the S795-28. Our 28C stamp will support a sash weighing 18 to 23lbs.

You'll also need to purchase the 15-194 1" T-Lock Shoe, which is sold separately from the balance. These are fairly easy to swap out with the shoe that comes on the balances.
