Truth hardware 30905

Question

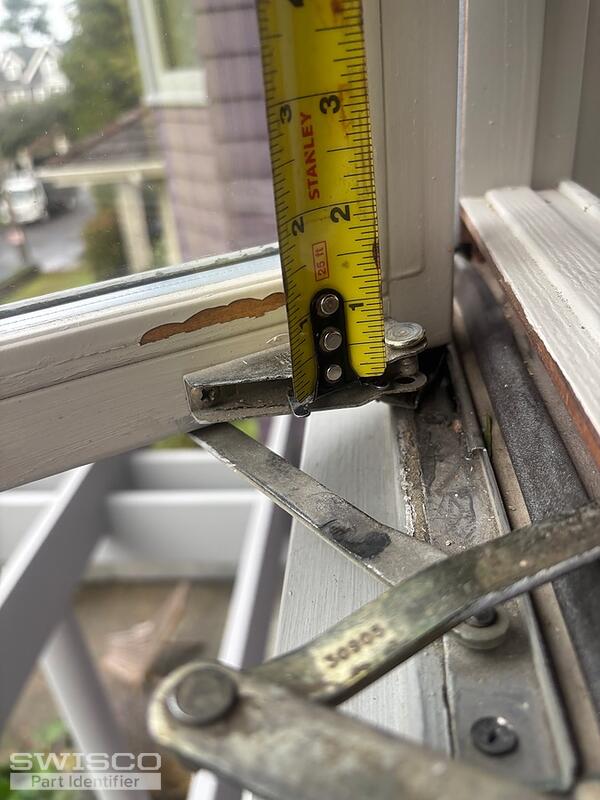

Hi there. I am trying to repair a couple of windows. Trying not to get into completely replacing the operators. On one window the bottom hinge broke. I am thinking of getting a set of 10". Hinges for that (36-004-10). for the other window I am missing a pin or rivet that attaches the operator arm to the window. 1/4" thick pin that is approximately 1/2" long. Do you happen to have anything for that or advice on sourcing?

Bob · Accepted Answer

Hello there. Yes, I think the 10" 36-004-10 hinge pair is likely a good choice for the window, so long as the dimensions are comparable and you replace both hinges in the window at the same time. For the stud brackets, I think you might have window operators like the 39-171 and 39-172. Take a look and see if that is right. If so, see if you could adapt the newer style 39-545 and 39-546 brackets to the window; they should work with the operators.
