Casement window sash track shoe / keeper needed

Home Owner from Chicago
These photos are of a working casement window in my unit. I am using this window as a reference. Another identical window in the unit will not open because this sash-mounted track shoe / keeper is missing after glass replacement.

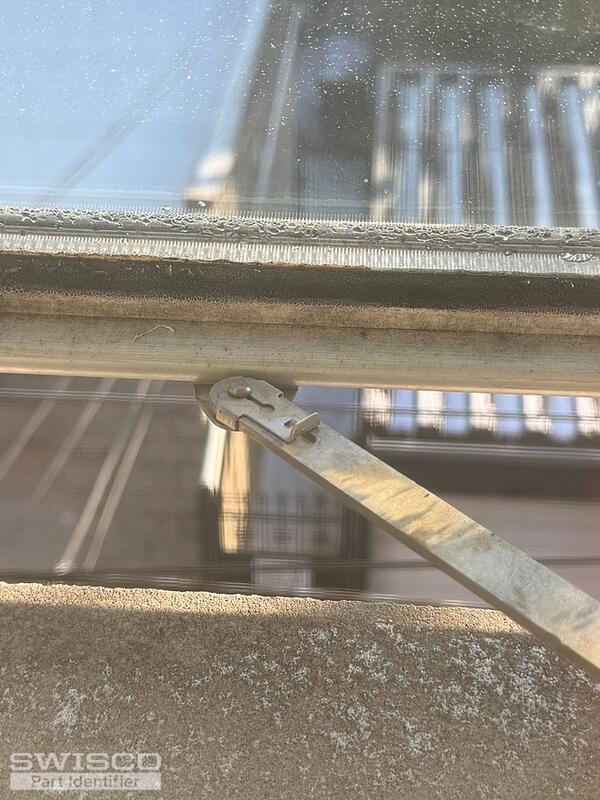

The part I need is the metal sash track shoe that mounts to the bottom of the sash and captures the operator arm, allowing the window to open outward and pull tight when closed. The photos show the clip installed on the working window, the operator arm engaged, and the full window context. I need the exact replacement of this sash track shoe.

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your detach clip resembles the 39-106. Review the specifications below to confirm it's a match. Thanks for posting!

Alternate image for 39-106
Alternate image for 39-106

Home Owner from Chicago
Hi this is the top piece, we need the bottom piece please. The bottom piece in our picture is what's missing.
Casey
Casey from SWISCO
SWISCO
Expert

We can't be sure without seeing the entire part, but you may be looking for the 36-078shoe stud. Review the dimensions to confirm.

Dimensions for 36-078
Dimensions for 36-078

Dimensions for 36-078
Dimensions for 36-078
