I ordered 20 each item# 39-473 rear mount scissor arm operator 16". I need the bracket that mounts to bottom to the of item# 39-473. The existing bracket holes do not line up correctly.

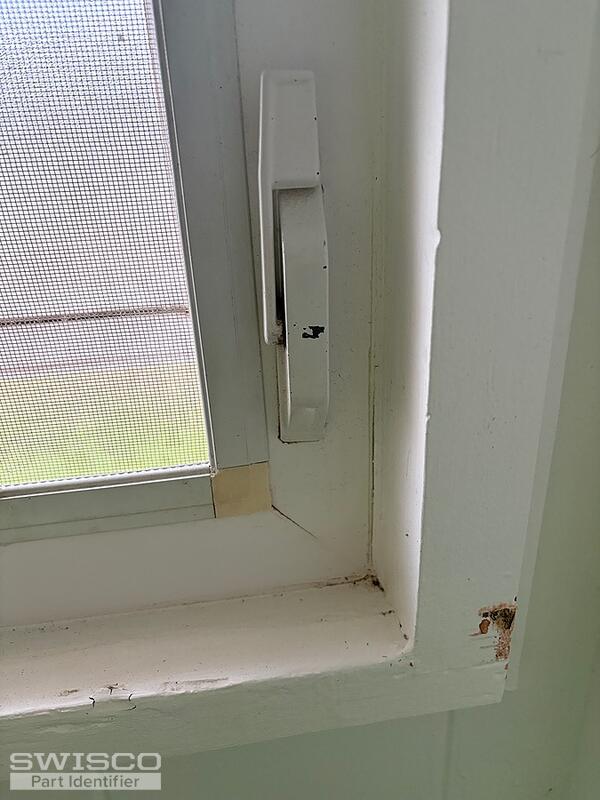

i also need one window lock for the window pictured above.
mahalo for your assistance, Anthony.
Item# 39-473 & window lock
Quick Learner from Hawaii
Jan 24, 2026 7:47 pm
4 user uploaded images
8 Replies
Lauren from SWISCO
Jan 28, 2026 9:26 am
Hi Anthony, thank you for posting,
We carry a few compatible brackets for the 39-473 operator. Please review the 39-178, 39-170 or 39-177 to see which one matches up the best with your window sash.
Unfortunately we do not carry a replacement for the window lock shown. I apologize for the inconvenience. Please let us know if you have any additional questions.
Quick Learner from Hawaii
Jan 28, 2026 7:15 pm

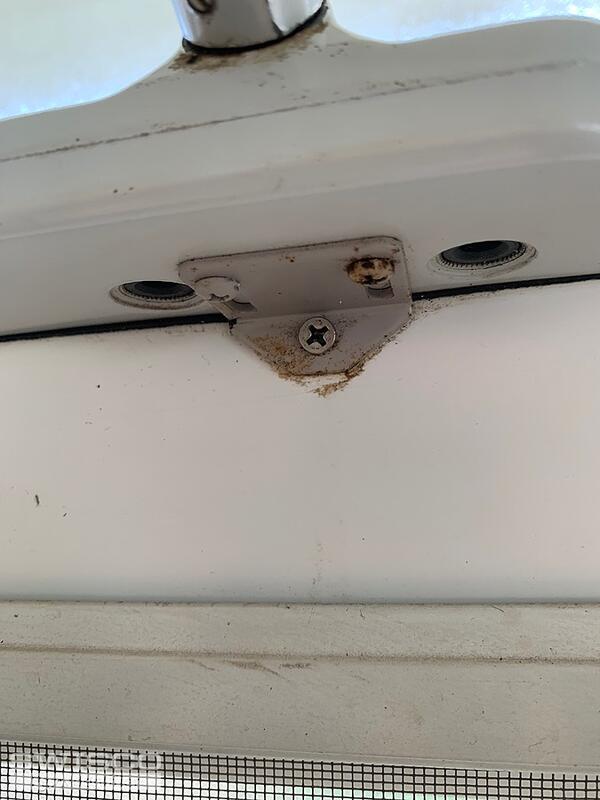

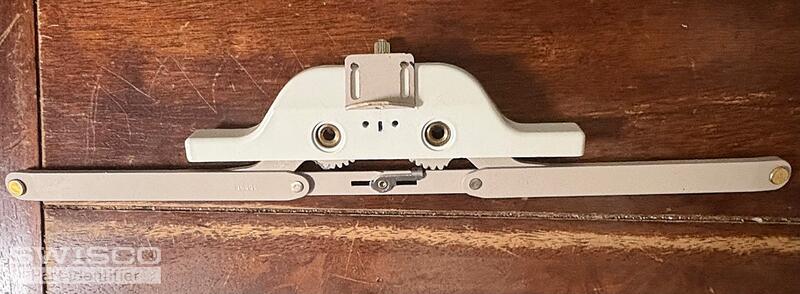

I was looking for the bracket that is screwed on the inside to the bottom of the 39-473 awning operator (see photo). The screw holes are closer together on the 39-473 than the original operator being replaced. Please refer to photo of 39-473 with old bracket that screws to the bottom inside and note the screw hole difference between the original bracket and the screw hole distance of the 39-473. I'm looking for the correct bracket for the 39-473 operator. Mahalo.
2 user uploaded images
Quick Learner from Hawaii
Jan 28, 2026 7:24 pm

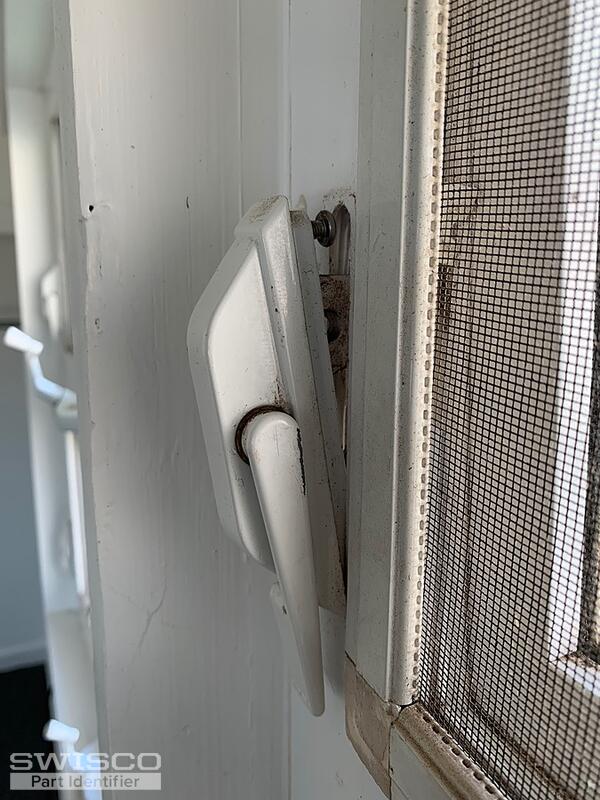

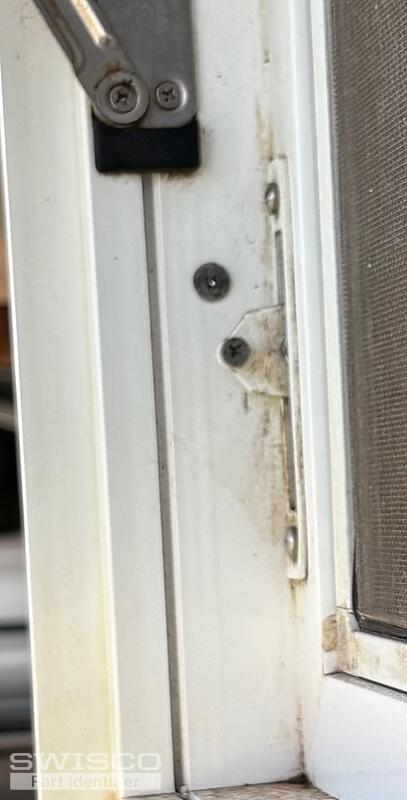

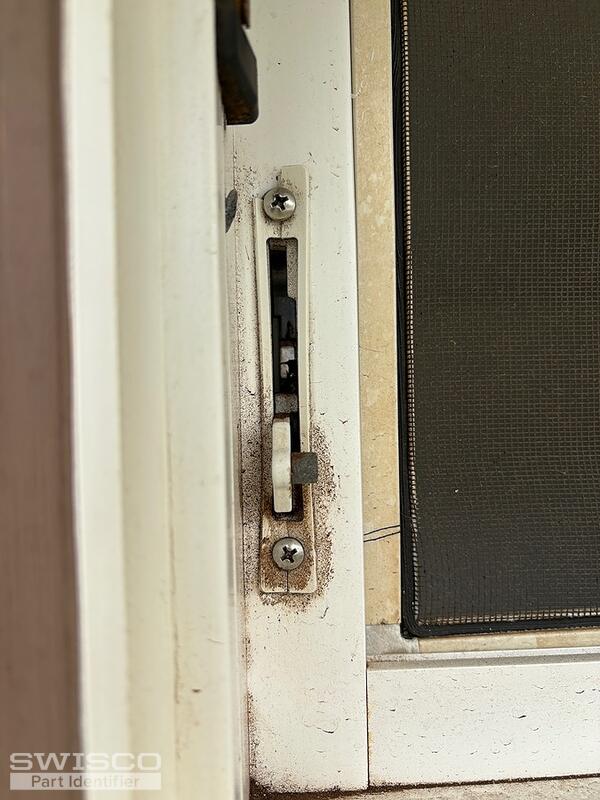

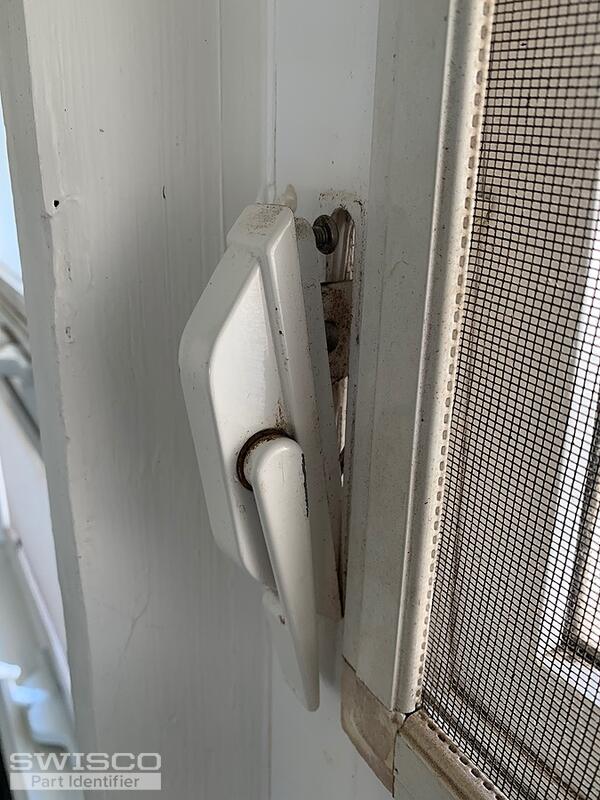

Locking mechanism is still good. I need the gasket or the piece that the screws are screwed into in order to secure the locking mechanism in place. That piece has broken and is now missing. Mahalo.
4 user uploaded images
Lauren from SWISCO
Jan 29, 2026 12:52 pm
I apologize for the misunderstanding,
For the lock plate, the closest we carry is the 38-158. Please review the dimensions below to confirm a good fit!
Alternate image for 38-158
Alternate view of 38-158
We do not currently carry the bracket shown for the operator, but researching to see if it is still available. I will be back in contact as soon as more information is available. Thank you for your patience!
Lauren from SWISCO
Feb 9, 2026 1:36 pm
Thank you for your patience,
We have located the support bracket for the 39-473 and ordering it in for you. I will be back in contact when it is available and ready for your review. Thank you for your continued patience!
Quick Learner from Hawaii
Feb 9, 2026 11:07 pm
Lauren from SWISCO
Apr 24, 2026 11:57 am
Good news! The 39-584 support tab is now available for purchase. See the specifications below, and thanks for posting.

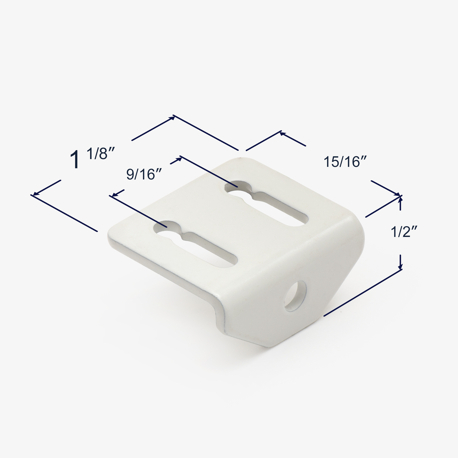

Dimensions for 39-584
