Good morning!

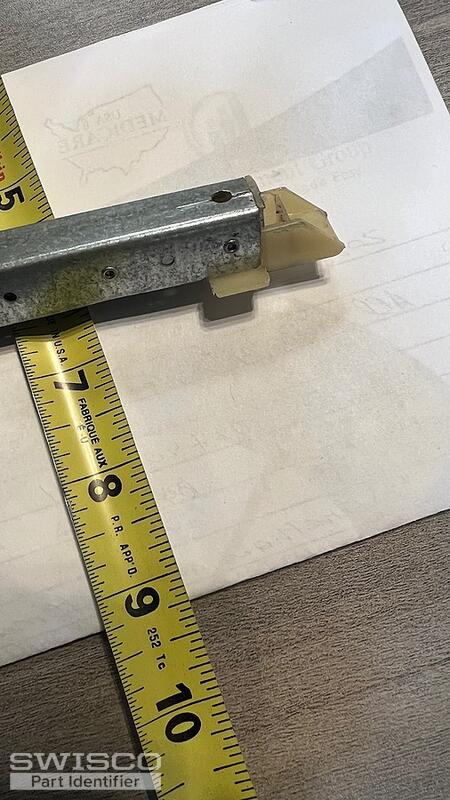

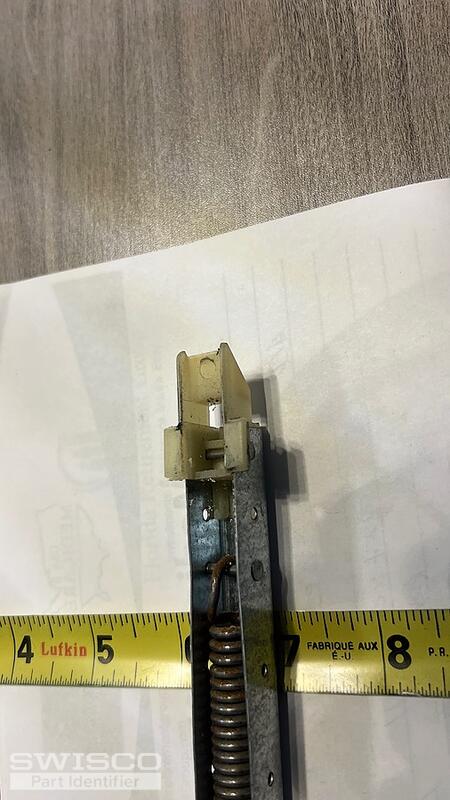

here are pictures of top and bottom of the same channel balance. Can you please tell me which one I have to purchase?
Channel because identification needed
Quick Learner from FL
Feb 4, 2026 11:40 am
5 user uploaded images
4 Replies
Casey from SWISCO
Feb 5, 2026 11:51 am
Hello,
With this combination of attachments, you could have either the S378, S380, or S385 channel balance. You’ll need to measure as shown below.
You'll also need to check the stamp code on the metal channel, which should correspond to one of our strength options. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from FL
Feb 6, 2026 11:52 am

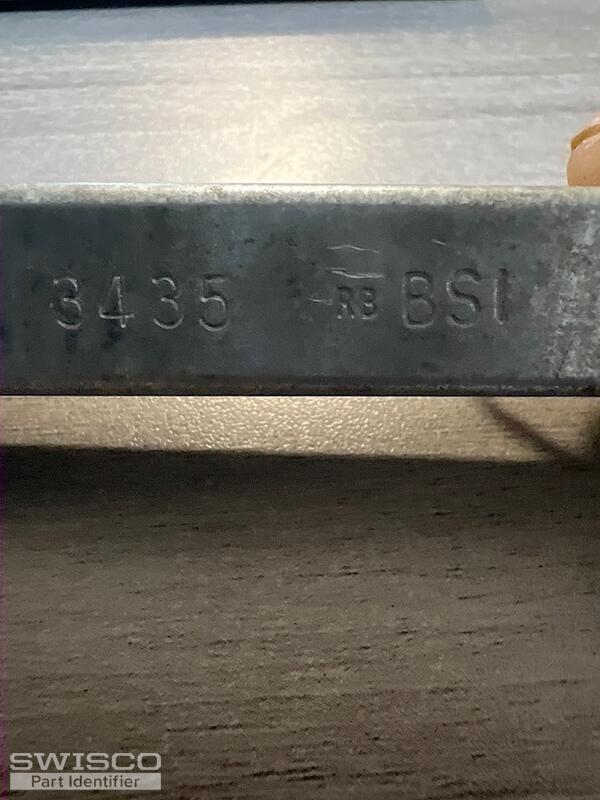

Thank you so much! Are other end plastics inserts are the same? Balance/channal stamp reading 3435 while options on your website are 3430 and 3440. Would you suggest 3440? Thank you again!
1 user uploaded image
Casey from SWISCO
Feb 6, 2026 12:23 pm
Yes, the top fittings are the same for all three balances. The bottom fitting depth is the only difference. Since your stamp code differs from ours, you'll need to weigh your sash to determine the correct option. There is a chart on the product page that explains how to choose your option based on the sash weight.
