Need Balances

Hello,

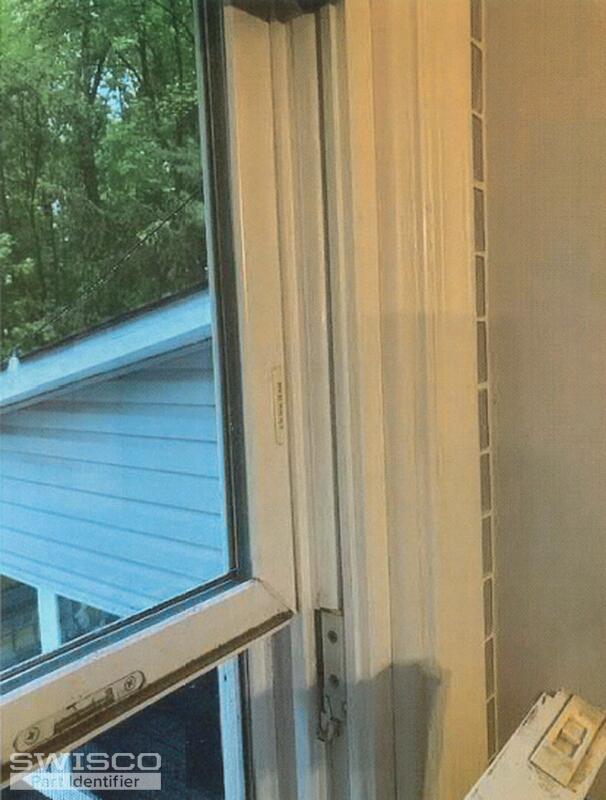

Thanks for your post! The shoe you have here is the 15-180 Coil Balance Shoe. It is compatible with the Series 190 Coil Balance, which is attached using the 33-073 screw. The coils are anchored to the window track using the 15-181 Double Detent Support Clip and 15-182 Balance Bushing.

You'll need to remove the coil springs from the window, and check them for a stamp/marking, to confirm the correct coils. If there aren't any, please see the video tutorial (tagged below) for instructions on selecting the correct coil weight option.

Alternate image for 15-180
