"Milgard" 4' 0'" X 3' 9" single hung, Kitchen Window

Home Owner from Santa Clara Ca

Jul 31, 2023 8:59 pm

Need to replace both sides.

String broke on right side window. Had to raise, won't stay in track,won't stay open.

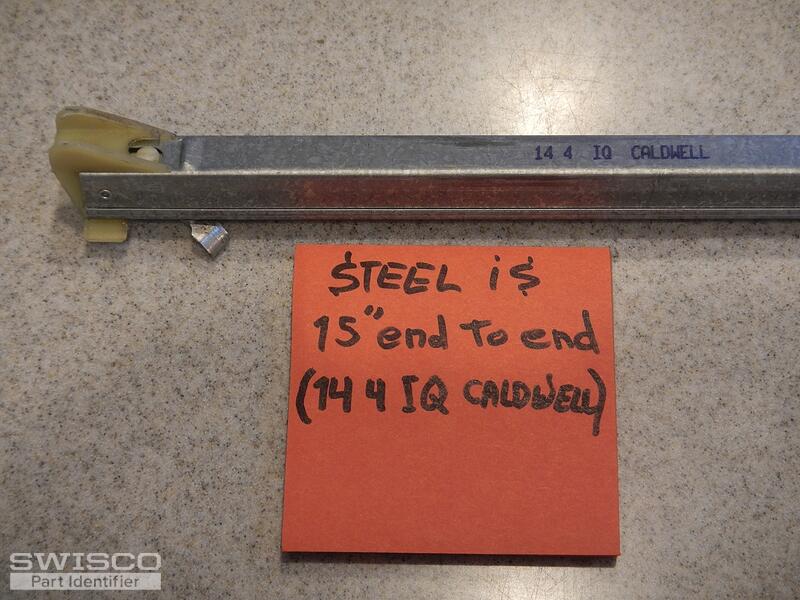

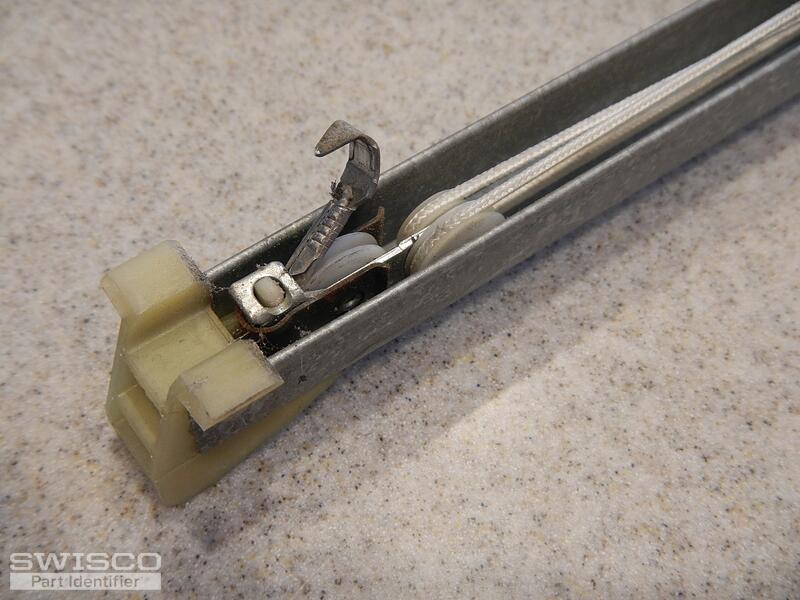

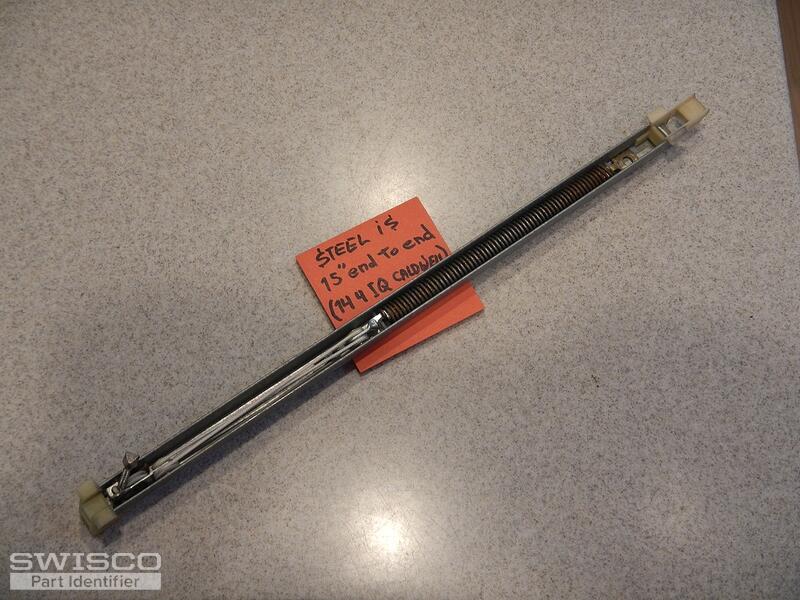

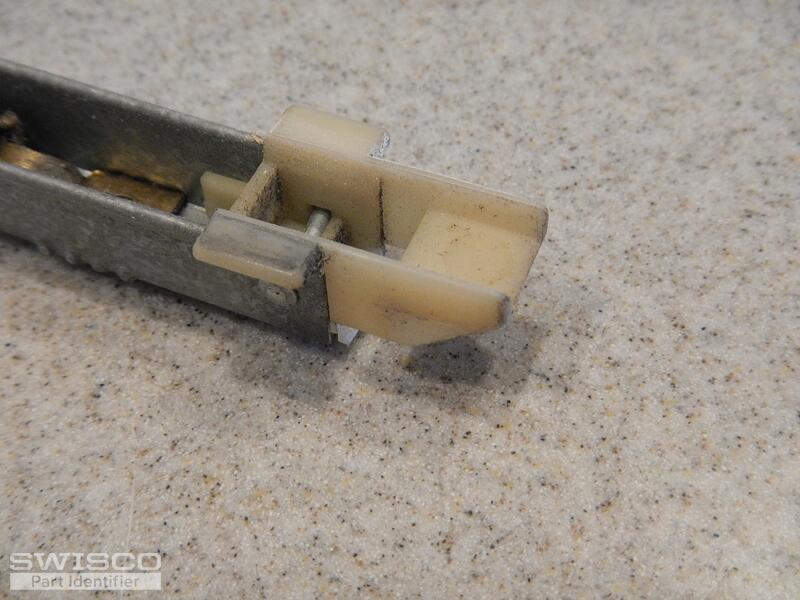

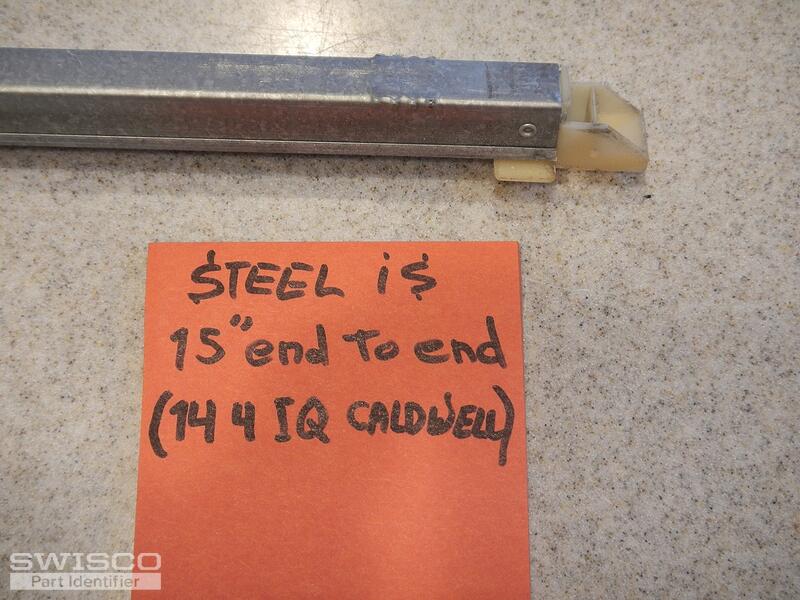

DSCN3074

DSCN3073

DSCN3072

DSCN3071

DSCN3075

5 user uploaded images

1 Replies

+ Add a Comment

Lauren

Lauren from SWISCO

Aug 1, 2023 10:36 am

SWISCO

EXPERT

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 15" balance with a 1440 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.
