Need replacement channel balances

Start a new Discussion

Quick Learner from Los Angeles

Jun 25, 2024 2:31 pm

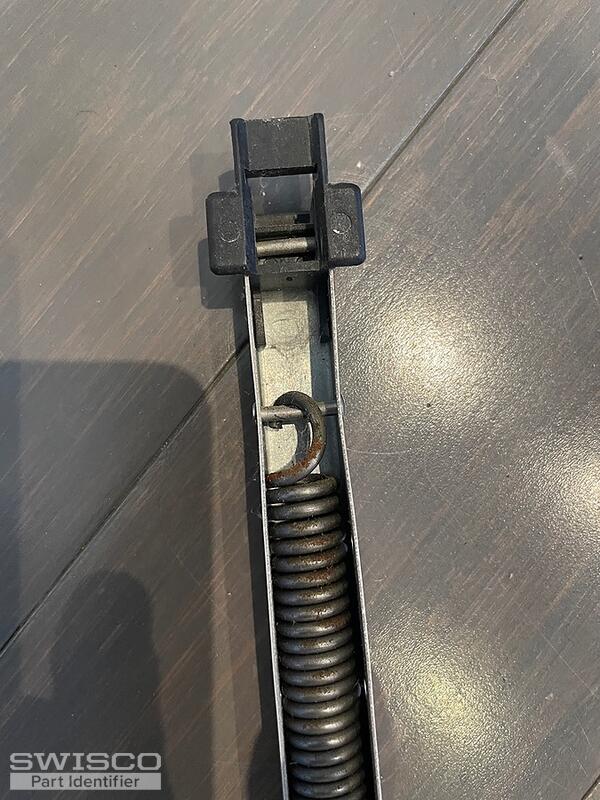

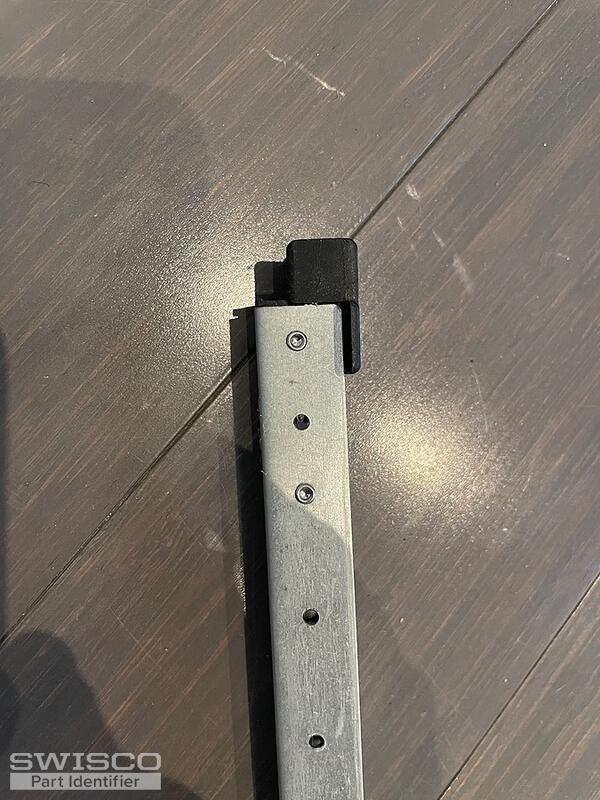

30 inches long and 9/16 wide

5 user uploaded images

7 Replies

Quick Learner from Los Angeles

Jun 25, 2024 7:47 pm

Based on some additional research, I've learned that the window used with the channel balance was manufactured in 2007 by the company Window Master (no longer in business).

Lauren from SWISCO

Jun 27, 2024 9:57 am

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 30" balance with a 2940 stamp option. Please review and let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from Los Angeles

Jun 27, 2024 1:01 pm

Thanks for the response.
The bottom attachment measures 1 + 3/32, so I have an S385.

I have a follow up question. The 30" 2940 stamped S385 I see at Swisco have a top attachment that looks different from mine (see prior photos). Should the Swisco item work with my window nonetheless?

Lauren from SWISCO

Jun 27, 2024 1:46 pm

Yes, we do not think you will have a problem with the different style top. We have seen this balance top before and have recommended the Series 385 in the past. Let me know if you have any additional questions!

Quick Learner from Los Angeles

Jun 27, 2024 3:49 pm

Many thanks - order placed.

Lauren from SWISCO

Jun 28, 2024 7:57 am

No problem! Please let us know if you have any future hardware questions.
