Non tilt window balance replacement : SWISCO.com

Home Owner from California

Aug 2, 2025 3:54 pm

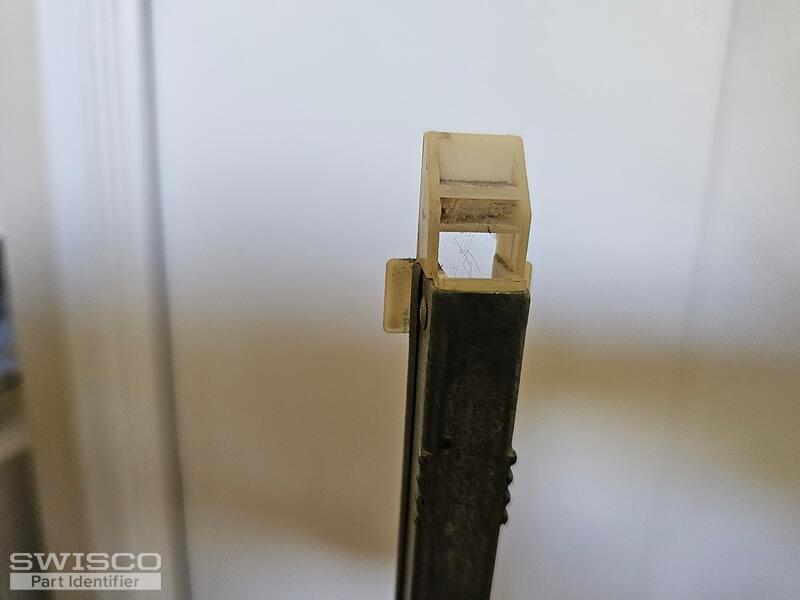

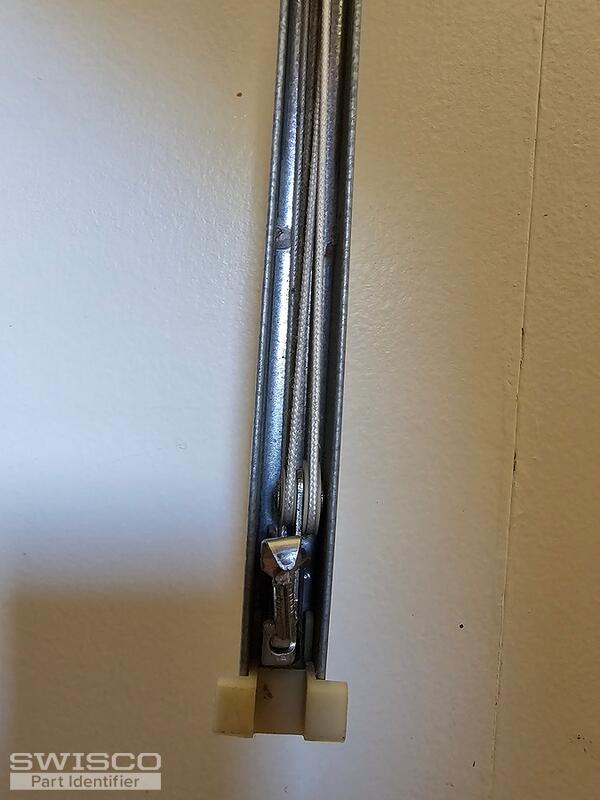

Non tilt window balance marked 26 3 BT Caldwell. The metal section is 27 inches and both top and bottom plastic ends have wings. What is the replacement part number?
Thank you.

5 user uploaded images

6 Replies

Bob from SWISCO

Aug 4, 2025 2:48 am

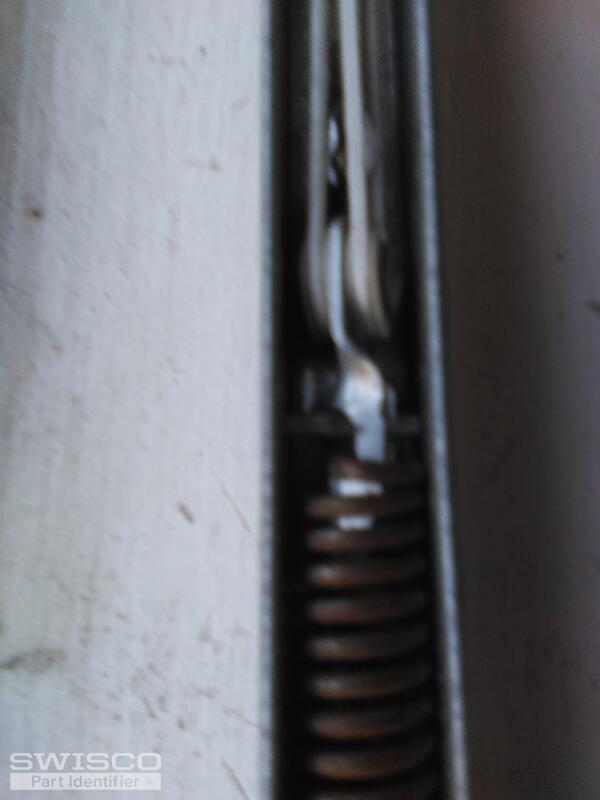

Hi there. I'm sure we can help, but I need to verify one extra detail. Can you show me further photos of the 'guts' or underside of the metal channel? Some balances from the west coast have a special design we must account for. We should be able to wrap this up thereafter.

Home Owner from California

Aug 4, 2025 10:37 am

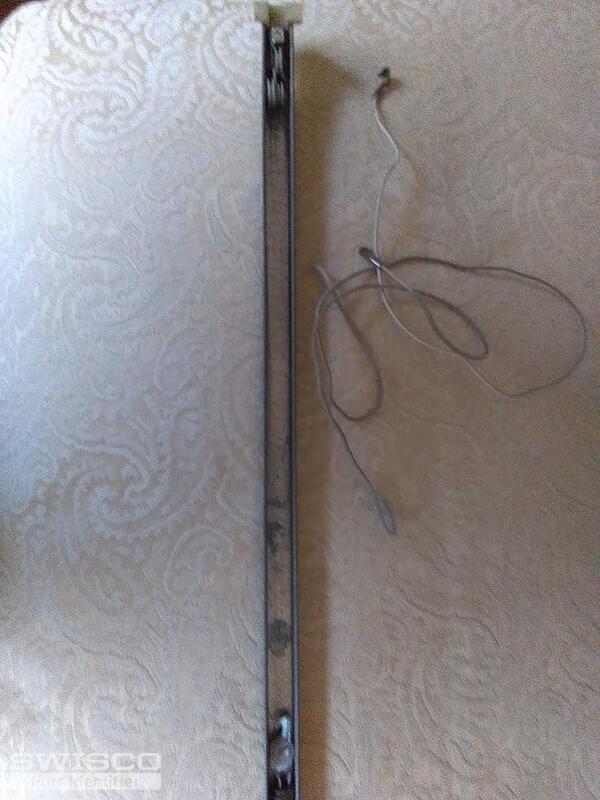

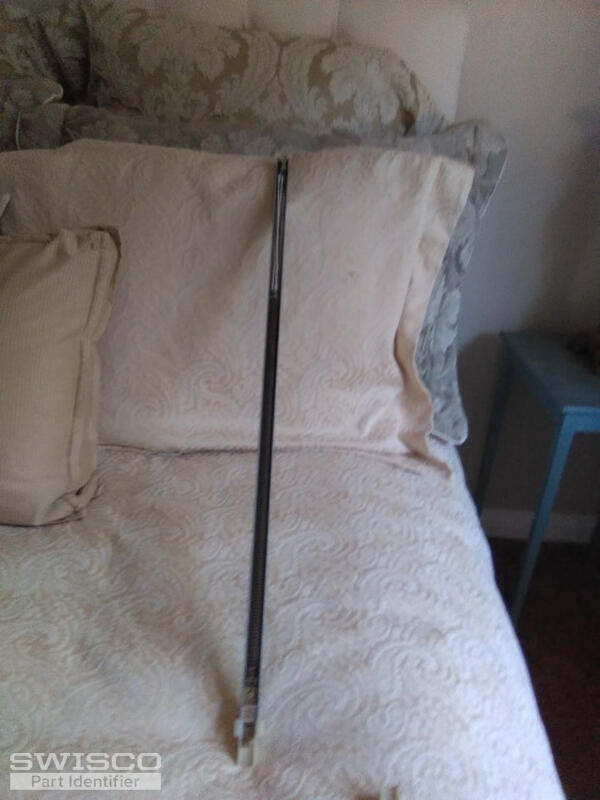

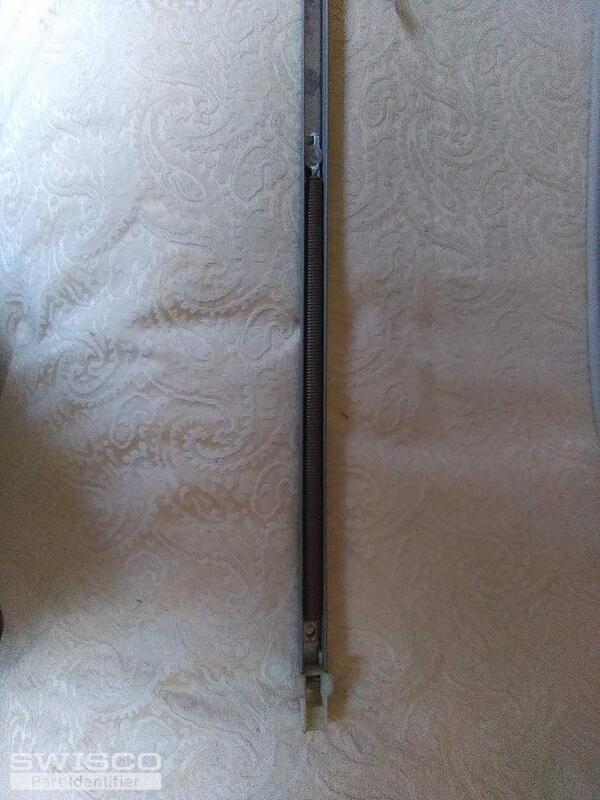

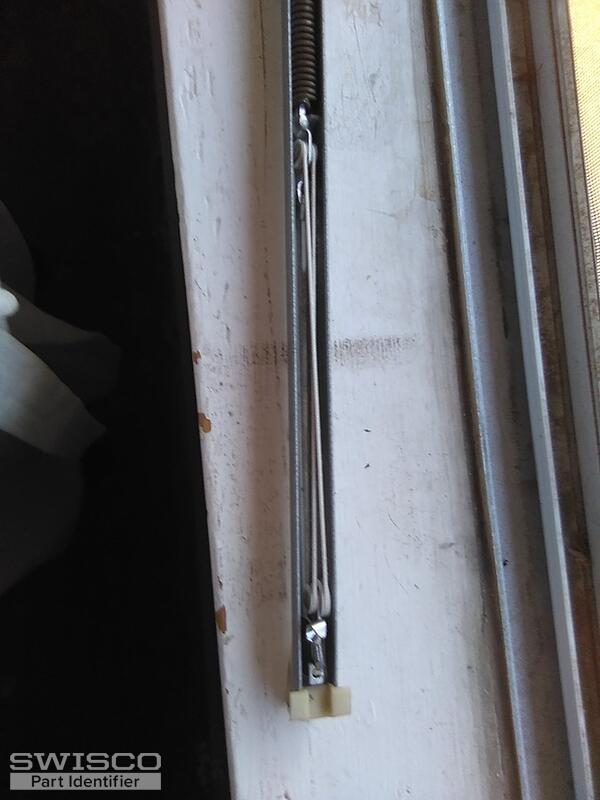

Thank you for your reply. I hope these pictures help. The first 2 are the broken balance.

5 user uploaded images

Bob from SWISCO

Aug 4, 2025 3:46 pm

Thanks for getting back to me. I think this is either an S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe. See below. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2630.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from California

Aug 4, 2025 5:17 pm

Thank you for your help!

Bob from SWISCO

Aug 5, 2025 2:55 pm

My pleasure. Let us know if you need anything else, and thanks for contacting us.
