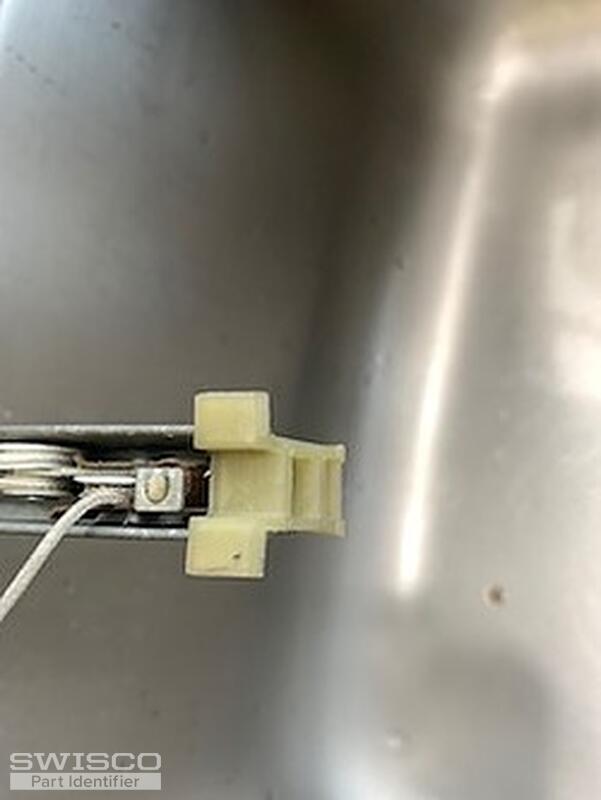

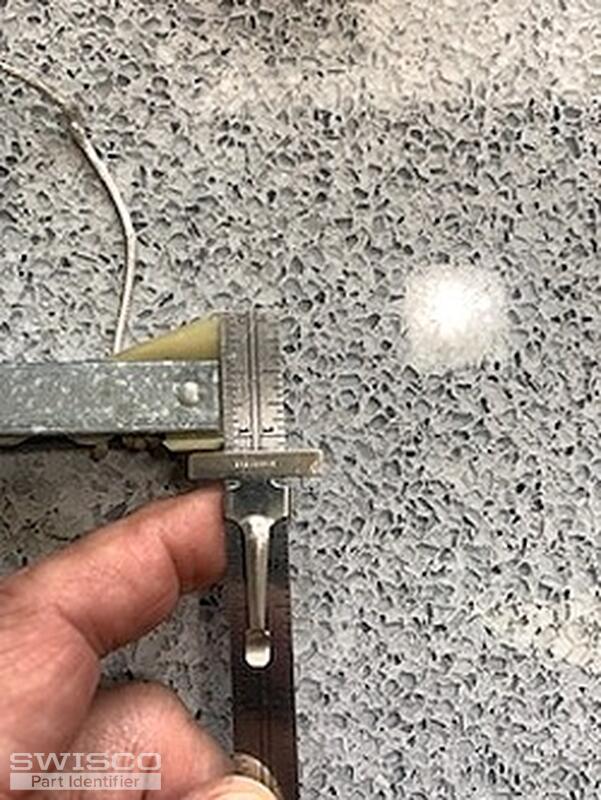

Looking for correct cross reference balance number to order and purchase (4) new replacement balances for (2) of my Milgard windows. Metal frame length is 21". Both nylon ends have wings. Old balance identification number is (blue letters) #20-4 FQ CALDWELL. Please see attached photos showing, full metal length of frame, hook, bottom end (1-3/32" depth), top (11/16" depth) and booth with wings @ 15/16" width.
Thank You, Jim.
Replacement balance needed for Part # 20-4 CALDWELL
Professional from Los Gatos, CA.
Jan 20, 2024 5:46 pm
5 user uploaded images
4 Replies
Bob from SWISCO
Jan 21, 2024 5:20 pm
Hey Jim, thanks for all the thorough information. With that 1-3/32" deep shoe, I believe you need an S385-21. For a stamp option, go with 2040. Let us know if you have any other questions!
Professional from Los Gatos, CA.
Jan 21, 2024 8:38 pm
Hi Bob ,
Got it !
Thank you for your response, and correct size response. Ordered today. Thanks again Jim
Got it !
Thank you for your response, and correct size response. Ordered today. Thanks again Jim
Bob from SWISCO
Jan 21, 2024 9:52 pm
Good to hear, Jim! Let us know if you have any other questions, and thanks for reaching out to us.
