I have siding doors with Arcadia locks from the late 60's. Some parts have gone missing. Can I install some replacement parts (same or different from original) from you? I will send you some pictures of existing set up.Please find enclosed some pictures.
The height of the lock proper is 3 and 3/16.
The enclosure is 5"
Thanks,
SWISCO

Quick Learner from USA
Apr 29, 2024 1:23 pm

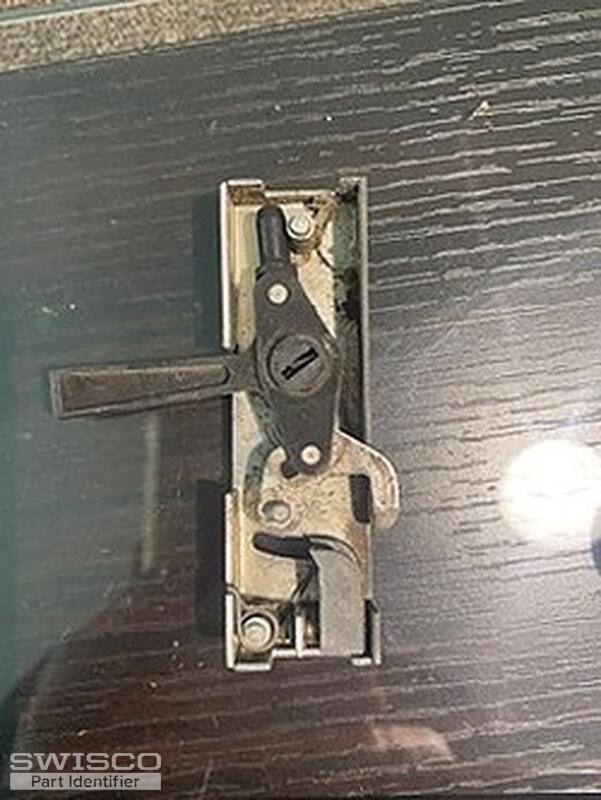

4 user uploaded images
2 Replies

Jasmine from SWISCO
May 1, 2024 4:01 pm


Thanks for reaching out! Your patio door mortise looks very similar in design to our 82-217A Patio Door Inside Latch. To determine if this is the right fit for your door, carefully look over the dimensions and compare them to your existing latch to determine if this would work as a replacement for you.
If you are looking to replace the handle set, I'll need to know the measurement for the distance between the installation holes from hole center to hole center.

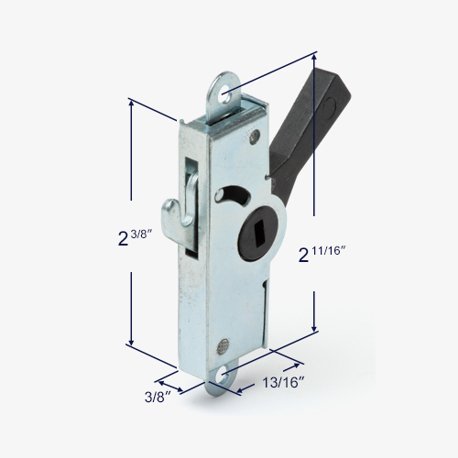

Alternate image for 82-217A
