Window balance from Traco.

A home owner from Hialeah Florida says:
February 11, 2022
Wondering if you had a part number or can make a pair of window balance from Traco. The metal channel is 24in long, 1/2 inch wide and 5/8 inch deep.
Thumbnail of the uploaded file named 16446121571624272709266679204193.jpg
Thumbnail of the uploaded file named 16446122517332622555462775974447.jpg
Thumbnail of the uploaded file named 1644612319369884460296306859111.jpg
Profile picture of Tom
Tom from SWISCO responded:
February 15, 2022

Hello! We can make this balance for you, but it will have to be a custom order due to the combination of nylon fittings you show. I believe these match our 19-041 (top) and 15-004 (bottom), but please refer to the dimensions shown below to confirm that they are in alignment.

Assuming that they are, I will also need to know the stamp printed on the metal channel and how many balances you needed altogether. Once I have that, I will email you a purchase ink and price quote that you can use to place an order on our site.

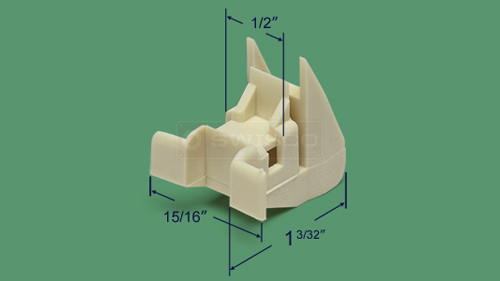

Dimensions for 19-041
Dimensions for 19-041
swisco.com
Winged Channel Balance Shoe, 1-3/32" Depth
Winged Channel Balance Shoe, 1-3/32" Depth
15-004
$0.74
Channel Balance Top, New Security
Channel Balance Top, New Security
19-041
$1.30
