Window screen corners for Acorn single hung windows

Start a new Discussion

Quick Learner from USA

Oct 6, 2021 9:41 am

Thanks

3 user uploaded images

9 Replies

Quick Learner from USA

Oct 6, 2021 5:37 pm

Are these available for purchase.
Will they fit my screens

Casey from SWISCO

Oct 12, 2021 10:27 am

Hello,

We'd be happy to help but we would need you to write out the exact thickness of the screen frame where the corner installs to narrow down your options. Unfortunately, it's tough to get accurate dimensions from photos. Thank you.

Quick Learner from USA

Oct 12, 2021 4:03 pm

Hi Casey

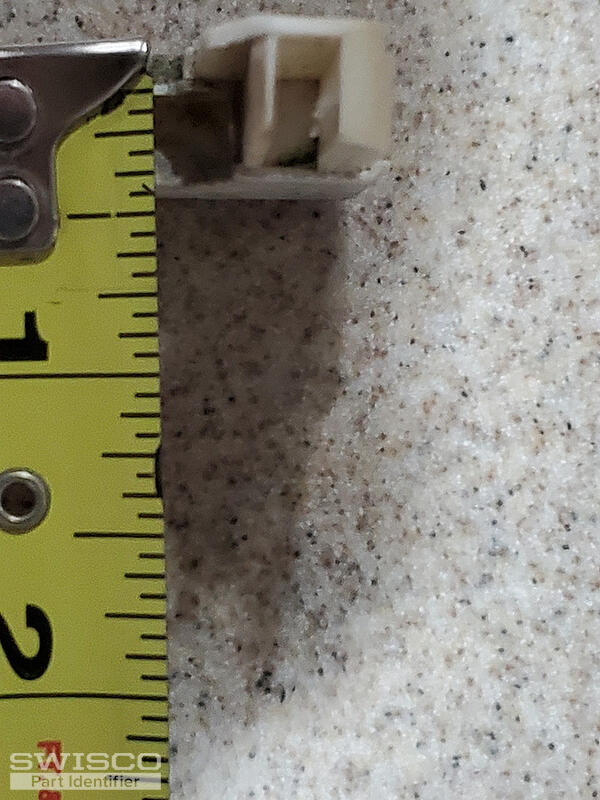

The thickness appears to be 3/8.

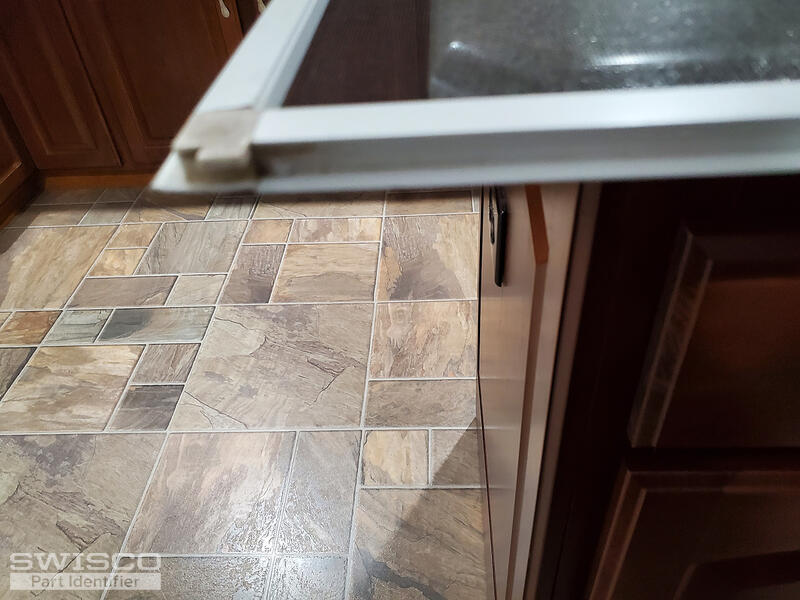

I've added some additional photos
Hope this helps

2 user uploaded images

Quick Learner from Riverhead NY

Oct 12, 2021 4:20 pm

I measured the screen where the 2 corner pieces came from and it measures 3/8
If possible could you send me one of each corner with lip and without lip as I need to replace 26 screens

Dave Sr. from SWISCO

Oct 15, 2021 10:12 am

Take a look at the 95-206 corner keys for the 3/8" thick screen frame. They appear to have that same shape that comes out at the top of the corner key. The plain corner that goes with it is the 95-205. I would suggest ordering a set to try out in your frame to confirm if they fit. You might need to do a little adapting to use them. Take a look and see what you think.

Quick Learner from Riverhead NY

Oct 15, 2021 1:24 pm

Thank you I will order a set for 1 screen

Quick Learner from Riverhead NY

Oct 27, 2021 10:57 pm

Thanks Dave
95-205 & 95-206 worked well just needed some slight filing .I will be ordering more for the complete restoration of my screens.
These 2 items work well with Acorn single hung windows
Thanxs Paul

Dave Sr. from SWISCO

Oct 28, 2021 8:42 am

We're glad to hear that the parts we recommended worked out for you. Please let us know if there is anything else that we can help you with.
