Window stops needed

Handy Person from New Castle, In

Oct 25, 2017 9:33 am

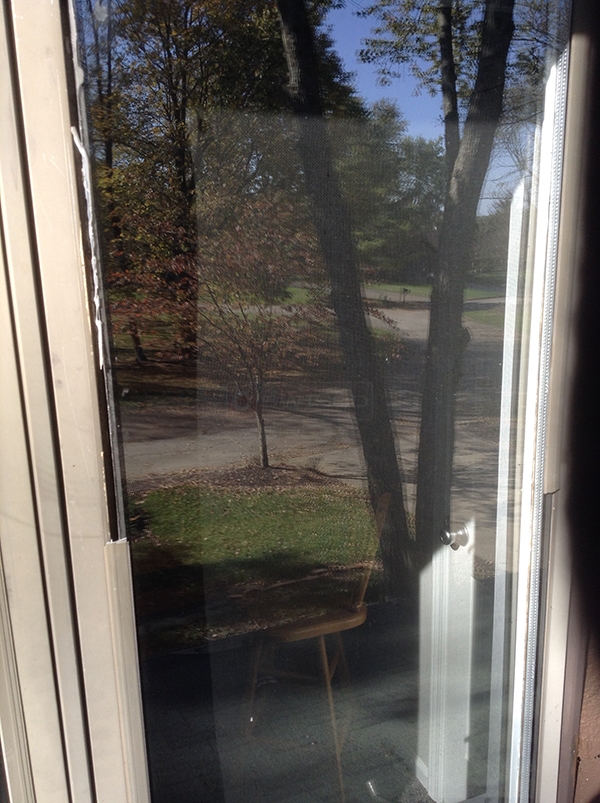

Please see the attached photo. Note that the trim, window stops, are off the window at the upper left and lower right of the window frame. I need to replace the trim/stops that have broken. To be sure that I have enough quanity and to address perhaps other windows I believe I need roughly 16 lineal feet.

User submitted a photo of window hardware.

4 Replies

Tom from SWISCO

Oct 31, 2017 12:22 pm

It looks like you might need the snap in glazing. In order to identify the right replacement glazing, I will need you to remove a clean and undamaged sample and show me a picture of its end profile. Knowing the size of the end profile would also be a huge help. In the meantime, you can see our entire selection here.

Quick Learner from New Castle, IN

Oct 31, 2017 1:20 pm

Ref. D98552

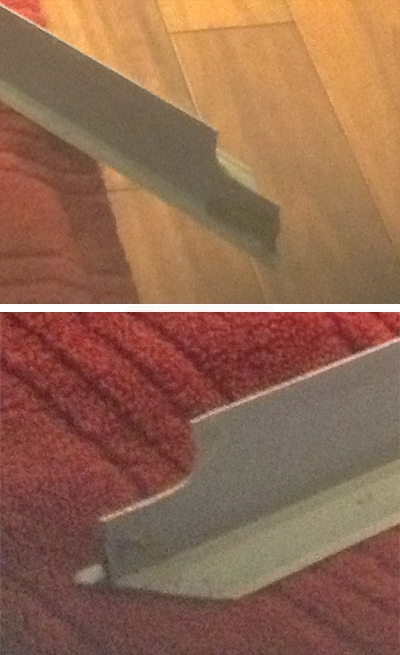

Here are some pictures of my snap in glaze that needs to be replaced. I looked at the pictures in the file and didn't see an exact fit however some may work in lieu of the original.
The size is 1" deep and 7/8" wide. I would appreciate your review and recommendation.

Dave Sr. from SWISCO

Nov 6, 2017 12:32 pm

I'm afraid we haven't been able to find an exact match for this glazing. Take a look at the 55-175 beading. It doesn't have the same "T" shape as yours, but the other dimensions seem to match up. Let me know what you think.
