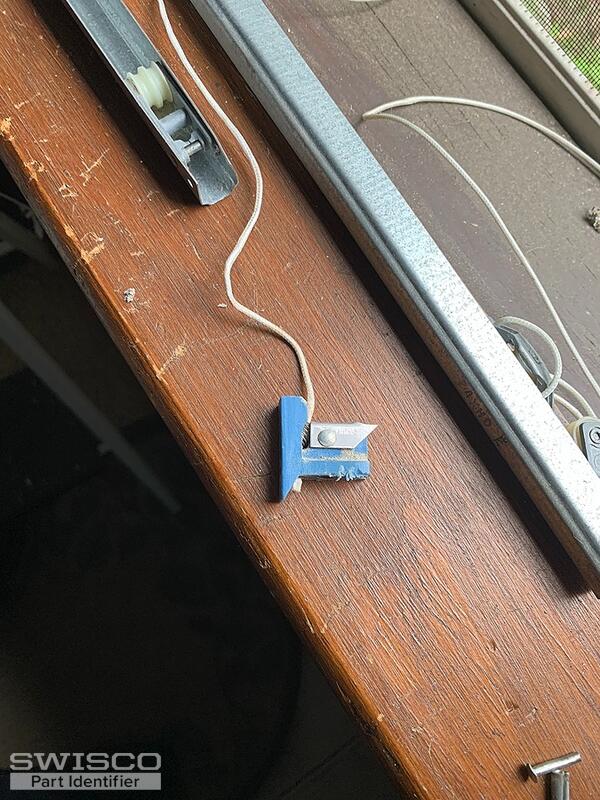

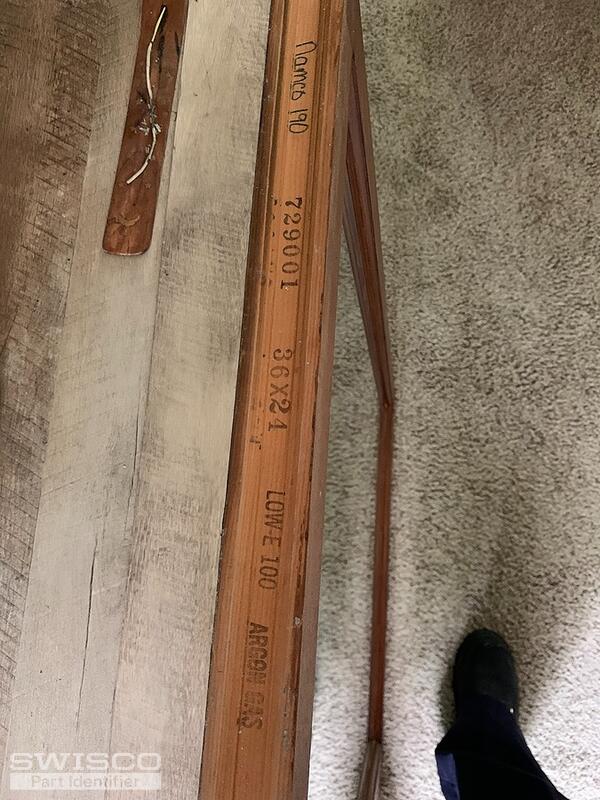

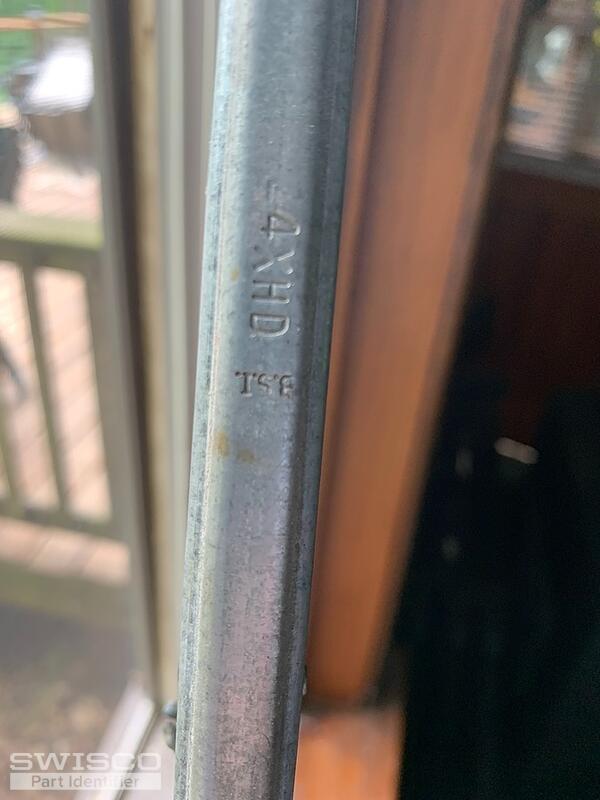

I am unable to determine the manufacture of my window, block and tackle channel is broken, not sure what to order for parts.The channel is 24" long and 1/2" wide raised center bevel. This a 36x24 double hung, single sash weighing 25lbs.

Thank you

Stephen

Thumbnail of the uploaded file named IMG_1243.jpeg
Thumbnail of the uploaded file named IMG_1247.jpeg
Thumbnail of the uploaded file named IMG_1248.jpeg
Thumbnail of the uploaded file named IMG_1250.jpeg
Thumbnail of the uploaded file named IMG_1253.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:

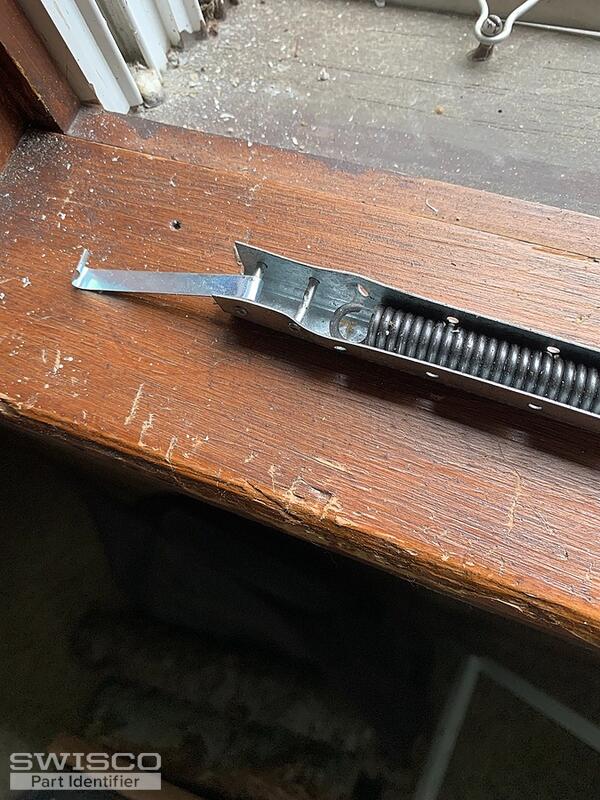

Thanks for reaching out! Your channel balance resembles our Series 751 Ribbed Channel tilt window balance. Since your channel is 24" long you'll need the S751-24 with a 23TG stamp (which can support a window weighing between 22 to 30lbs). The attachment at the top of the balance is the 19-030 long S-clip.

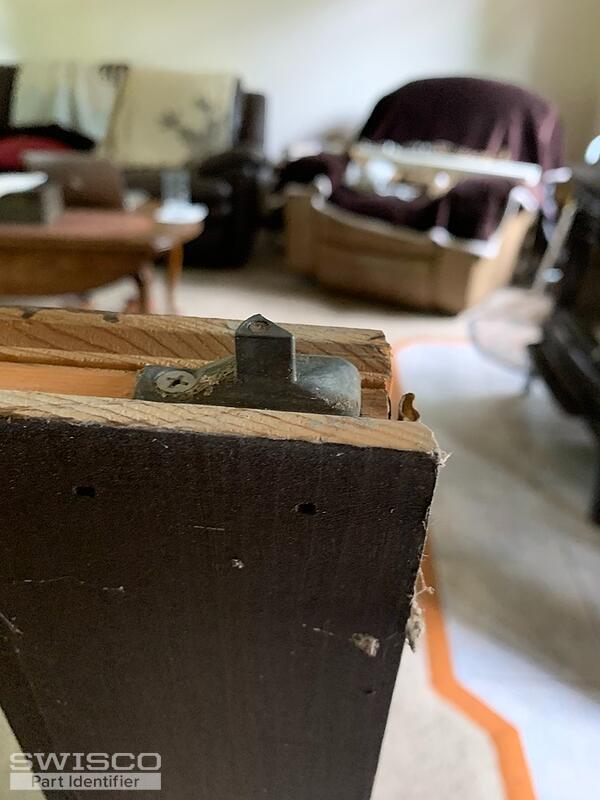

We do not carry an exact match for your cam pivots but our 26-150 cam pivot pair should work fine as a replacement. Look over the diagram below and compare it to your part.
