rubber stripping around casement windows

Quick Learner from Fernandina Beach FL

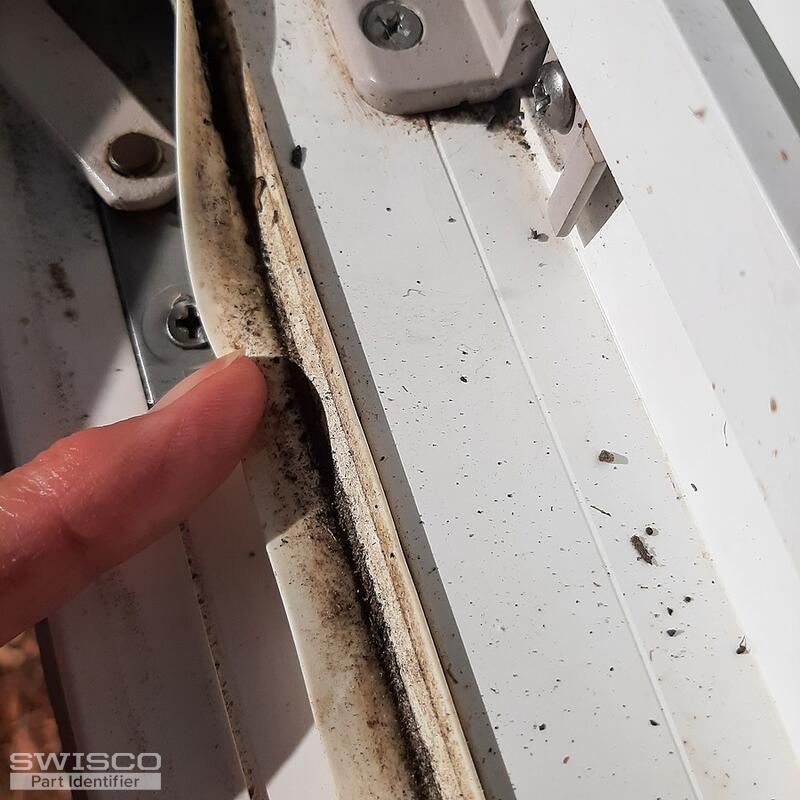

This rubber stripping around our casement windows is worn and sticky making it difficult to open and shut the windows. Can you identify a replacement?
2 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

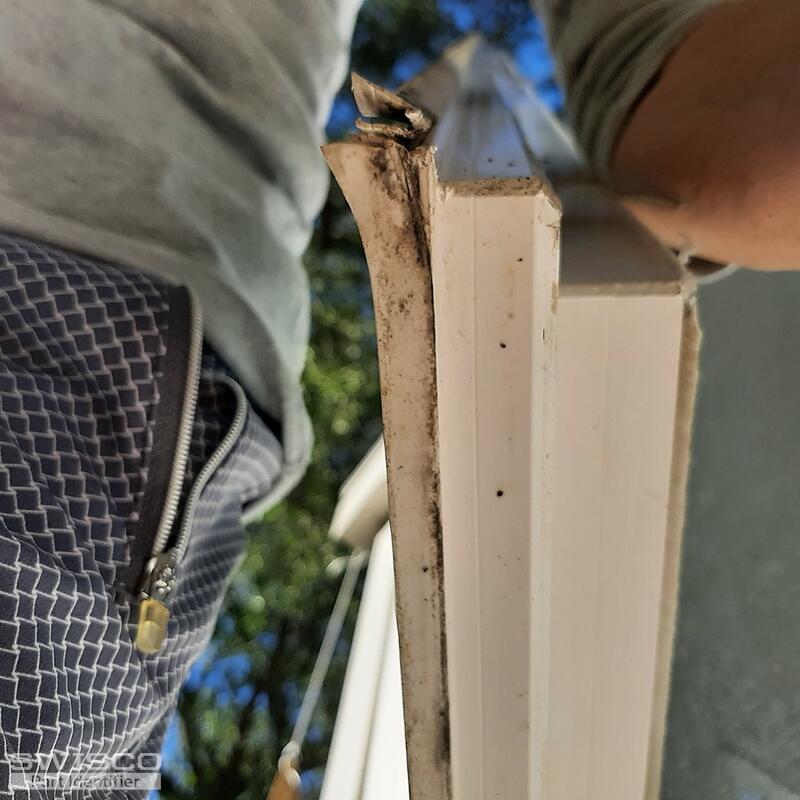

We may have a good match for you, but before I recommend anything I will need you to remove a small sample of the original and show me a clear picture of the end profile. The video below will go into more detail as to what I mean.

Quick Learner from Fernandina Beach FL
The widest part of this is 3/8 of an inch.
Tom
Tom from SWISCO
SWISCO
Expert

Thank you! We don't sell a seal in this exact shape, unfortunately, but our 58-053 is very similar. This has the same style kerf that pushes into the slot in the window, which is one of the most important features. The only major difference is that yours has a "V" shaped head while ours is a bubble. As long as the dimensions match up, however, then it should be fine. It will have the same coverage and will seal the elements out just as well.

Profile drawing of the 58-053 bubble seal.
Profile drawing of the 58-053 bubble seal.
