00128 - .0S operator handle, 02077 .operator arm

Professional from chicago, il
are these part available?
5 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

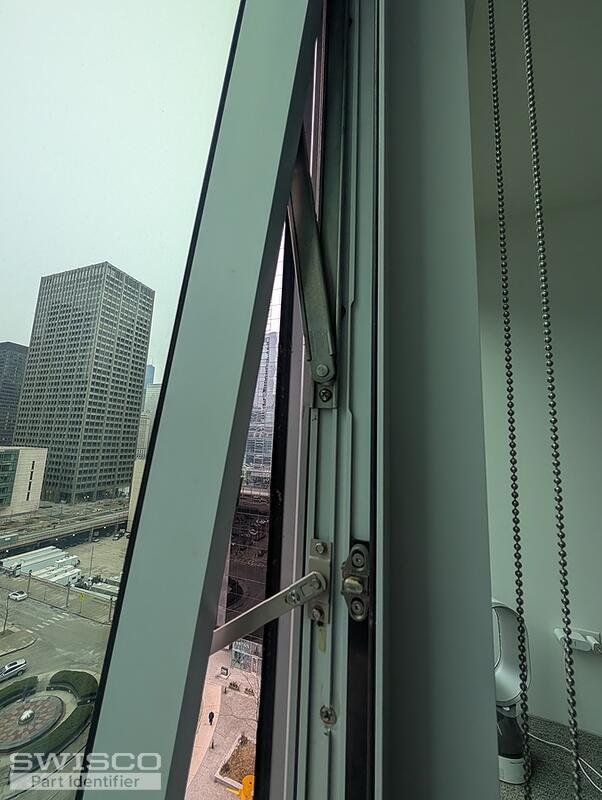

Looks like you're showing a few different parts here. I can make out a hinge, sash limiter, and lock.

Starting with the hinge, we sell several sizes that may replace this. Your post didn't list dimensions so I don't know what to recommend, but start with our 36-048. This has a 10" long base track, which is the most pertinent dimension. Note that both sides need to be replaced at the same time. You can't mix and match old and new hinges.

For the limiter, see our 39-398 and the shorter 39-398SS.

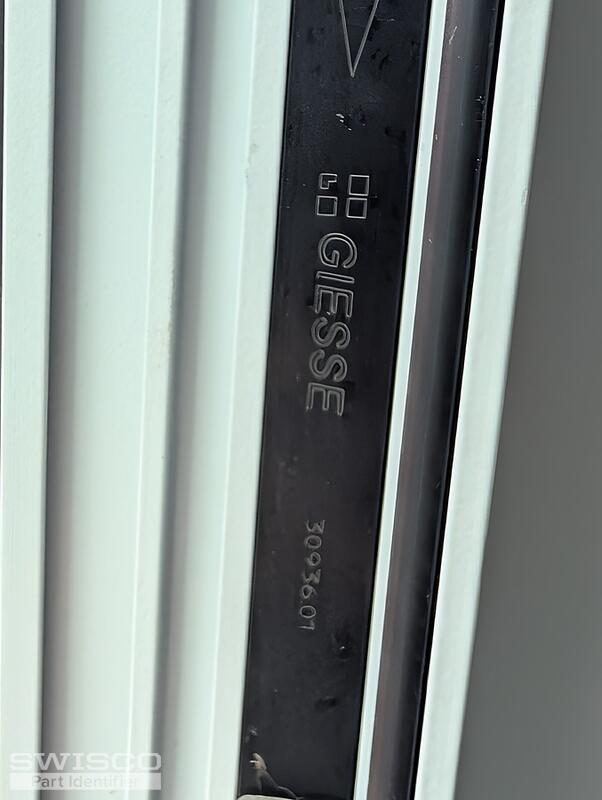

For the lock, this is unfortunately not a design I'm familiar with. Can you kindly confirm the name that's printed on it? The photo is a little too blurry to make out.
