1 x .340 x 2.450" white plastic screen corners

Quick Learner from Michigan

Aug 31, 2013 11:52 pm

Please review and advise our CAD pdf drawing. We can not seen to find these anywhere.
Thanks and God bless,
Larry
Mr. Fix-It Handyman

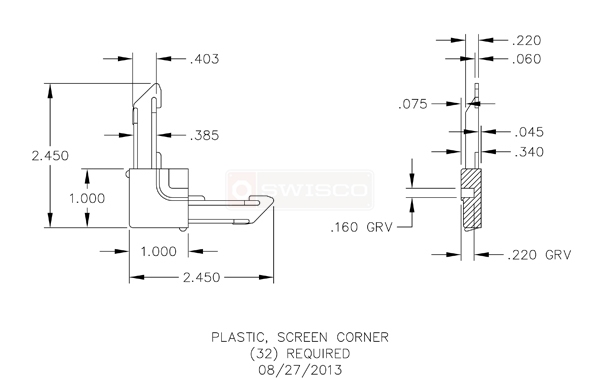

User submitted a diagram of a screen corner.

4 Replies

Casey from SWISCO

Sep 3, 2013 2:06 pm

Hey, Larry. How about our 95-187? Check it out and let me know if you agree.

Handy Person from Michigan

Sep 3, 2013 3:39 pm

Hi Donna,
Thanks for getting back with us so fast! These seem to look correct but what is the over-all length of them? Let us know.
Thank you and God bless,
Larry
Mr. Fix-It Handyman

Casey from SWISCO

Sep 5, 2013 9:00 am

The entire length of the p art is approximately 2-1/16". That said, I'm thinking that the overall length will not matter. As long as it fits into the current frame and the square is the same size, it should hold well once the screen mesh is rolled in.
