10 2 HU CMC 2 Sash tensioner

Quick Learner from Nampa Idaho
May 6, 2024 4:07 pm

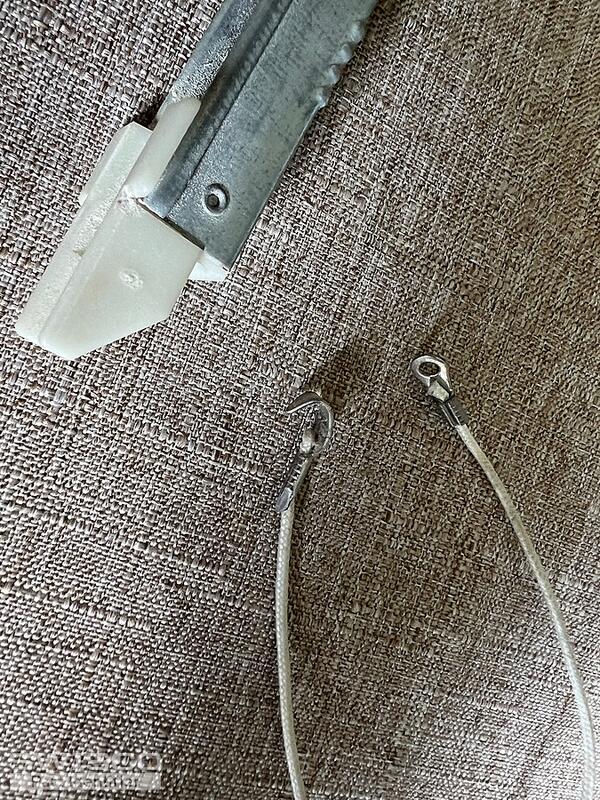

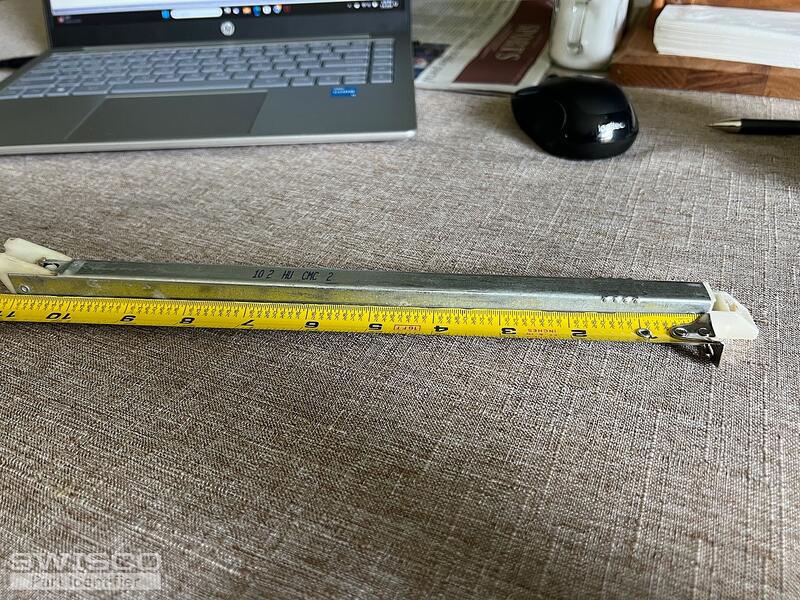

Need 2 of these for a vinyl window with no name on it. String broke on one side. The only letters on the metal are 10 2 HU CMC 2, both ends have Wings on the plastic ends. Ted

IMG_1587 IMG_1582 IMG_1581 IMG_1578 IMG_1588
5 user uploaded images
3 Replies
Tom
Tom from SWISCO
May 7, 2024 2:57 pm
SWISCO
EXPERT

Thanks for your photos. Based on what I see here, you have either our S380-11 or S385-11, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Quick Learner from Nampa Idaho
May 8, 2024 1:14 pm
My sash is 6.5 LB will the 1010 option work or do I need the 1020 ? It is a small 20"x 13" sash
Tom
Tom from SWISCO
May 8, 2024 3:30 pm
SWISCO
EXPERT

If your sash is over 6 pounds, then I'd go with the 1020 option. This carries 6 through 9 pounds, which fits your sash weight perfectly. The 1010 option would fall under your stated weight.
