10-In channel balance needed
Quick Learner from California
Aug 2, 2024 1:57 pm

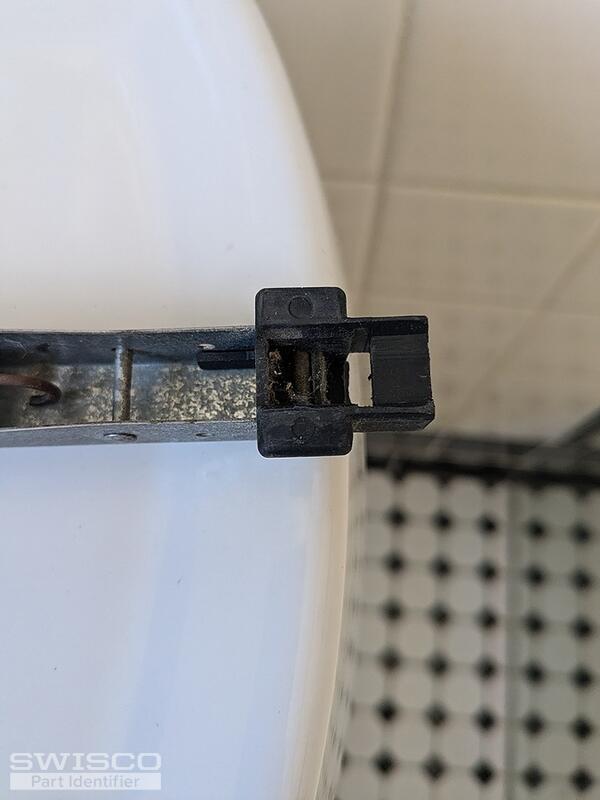

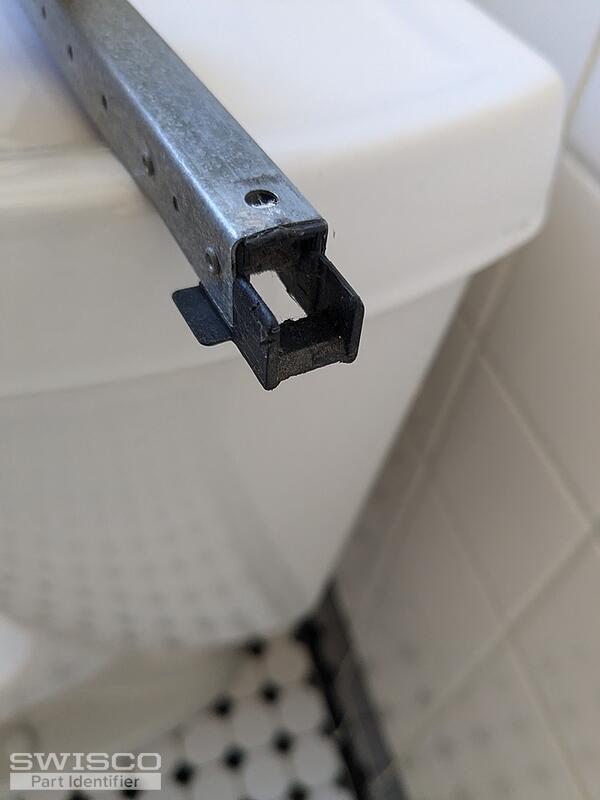

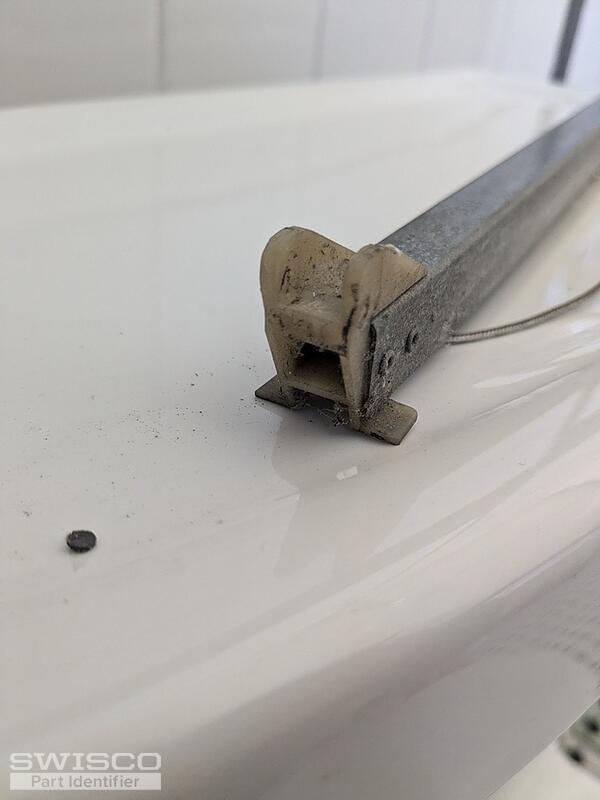

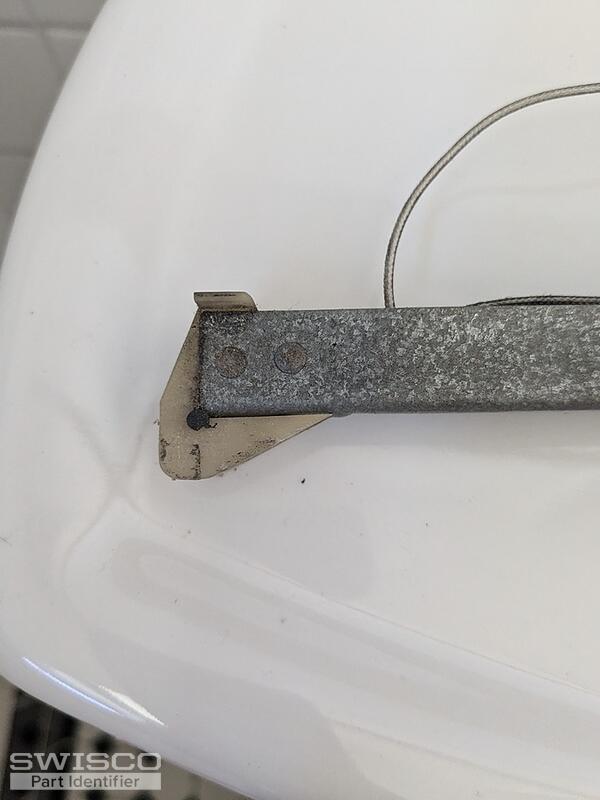

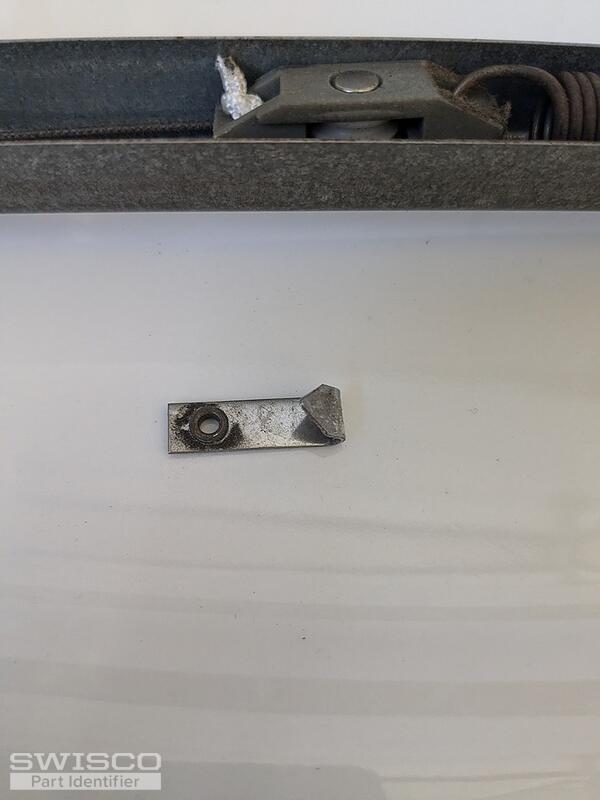

Attached is the channel balance part that I need replaced. 10 in metal tube, with each end indicated. The stamped number is 1530 , with some other letters next to it that look like B.S.I. Hopefully you can identify it. I would need a new pair for my window. Thanks
5 user uploaded images
2 Replies
Lauren from SWISCO
Aug 5, 2024 11:42 am
Hello, thank you for posting,
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
My concern is the length of the metal channel excluding the attachments. Are you able to double check this measurement? With a 1530 stamp, the metal channel should measure 16", not 10". Please let me know!
Comparison of the S378, S380 and S385 balance shoes.
