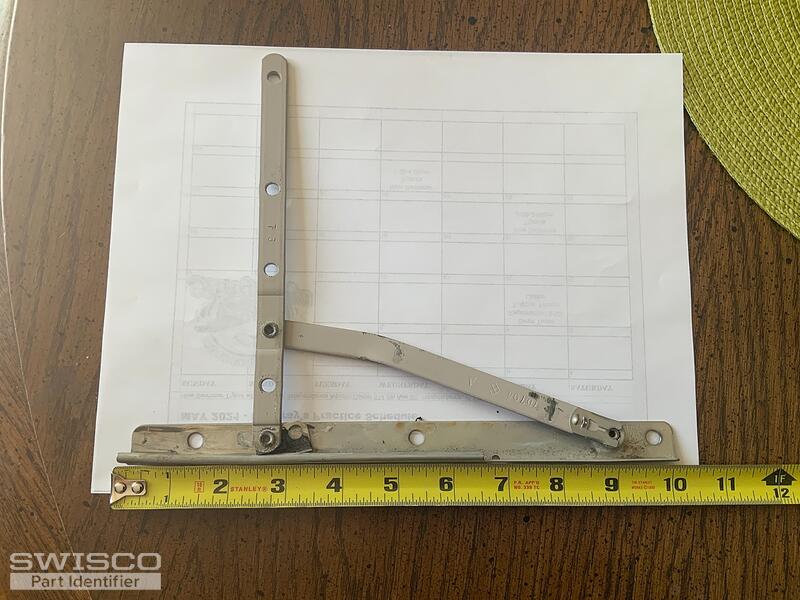

I am looking for this casement hinge. It has 7D704 stamped on one arm from Truth. The arm that goes to the stud is longer than most I am finding on the site.
The wind caught this one and bent things up a little so I need to replace.
Any help is appreciated!
10" casement window hinge
Handy Person from Iowa
May 13, 2021 4:01 pm
4 user uploaded images
6 Replies
Emily from SWISCO
May 14, 2021 2:40 pm
Hi there!
Take a look at our 36-048 10" hinge set. Look over our dimensions and see if this matches up for what you need.
Handy Person from Iowa
May 14, 2021 8:53 pm
Emily
Thanks but the one arm is longer than 5". It is around 7" long and pivots off a the 3rd hole up on the slider arm.
Do you have anything with that longer arm.
Thanks but the one arm is longer than 5". It is around 7" long and pivots off a the 3rd hole up on the slider arm.
Do you have anything with that longer arm.
Emily from SWISCO
May 17, 2021 9:44 am
Our 36-048 has a 7-5/8" arm as shown below. It looks like your current one may match this but you will have to double check just to be sure.
Detail of 36-048
Handy Person from Iowa
May 17, 2021 5:49 pm
Emily
Sorry for the confusion. The angled arm is the one I was talking about. It is longer
Sorry for the confusion. The angled arm is the one I was talking about. It is longer
Emily from SWISCO
May 18, 2021 9:09 am
Ahh, I see what you mean. My apologies!
That measurement won't matter, you will just have to drill new holes. Keep in mind to replace the top and bottom hinges at the same time as well.
