1001 Pivot Bar with housing

Home Owner from Woodbridge, VA
Aug 14, 2022 2:39 pm

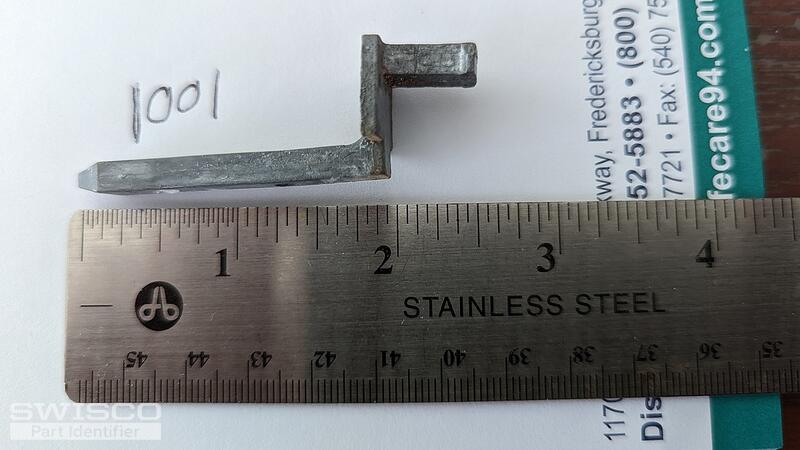

Pivot Bar is approximately 2.5" long and has "1001" stamped on it.

I would like to purchase approximately 10 pivot Bars.

The windows are plastic or PVC. What should I use to lubricate the sides and insides, so the windows travel up and down easier.

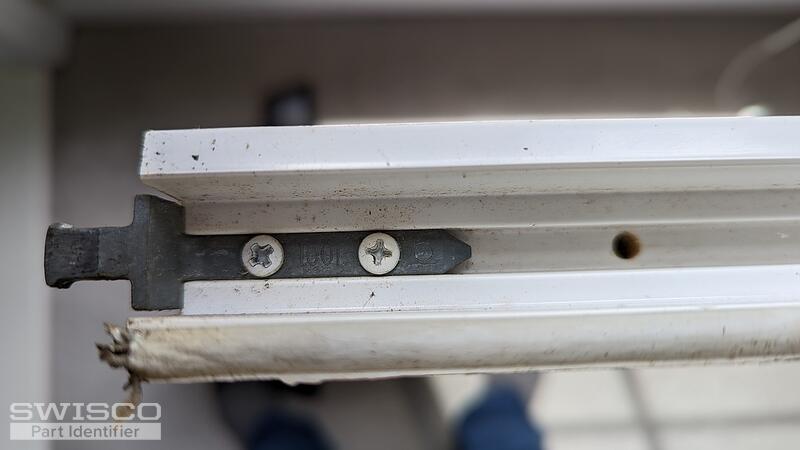

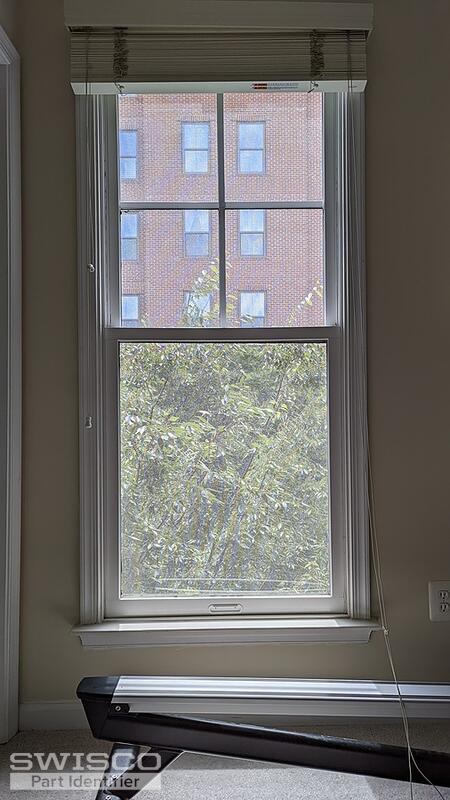

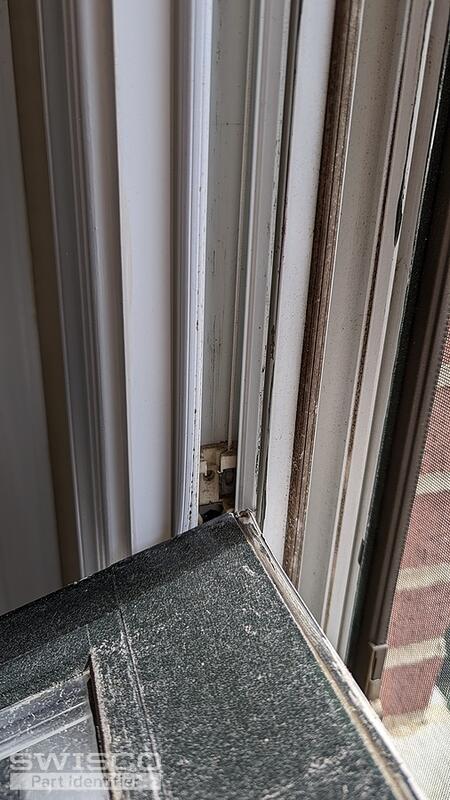

Inner Frame Pivot Bar Removed Pivot Bar Window
4 user uploaded images
1 Replies
Tom from SWISCO
Aug 17, 2022 8:38 am

I've seen this pivot bar a few times in the past, but it is unfortunately not something we're able to supply.

While it may not seem like it, I actually think a straight pivot bar like our 26-360 can work for you. That offset your original has isn't necessarily a deal breaker, even though it is pretty big. The 26-360 should be compatible with your pivot shoe, too, so really you just need to make sure that at least one of the installation holes are in alignment. Review our dimensions below to confirm.

Alternate image for 26-360
Alternate image for 26-360
