1066_Window balance

Home Owner from USA

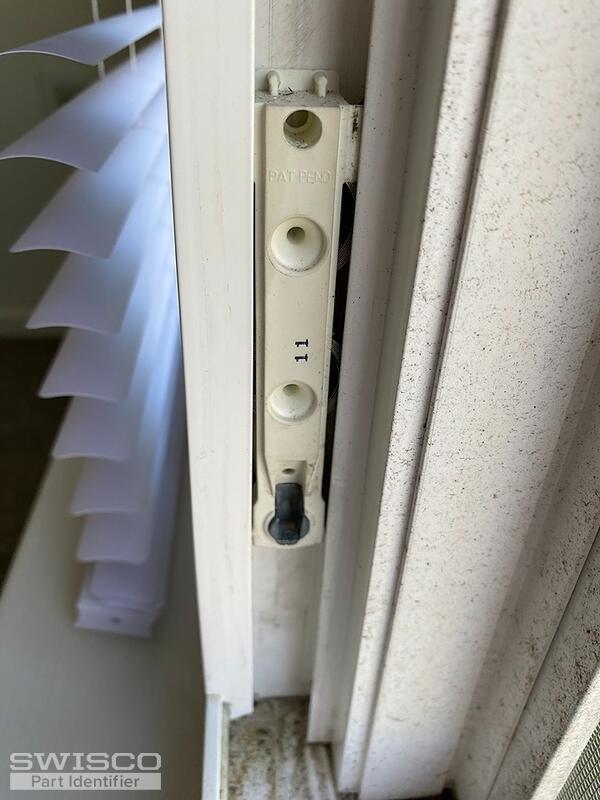

We have a few windows that need window balances replaced. Attached are photos of the balance we currently have. Do you sell a product to replace the balances we currently have? Please find the attached photo of a working balance with out the window sash installed.

John

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

It's tough to be sure with your coil assembly still installed but take a look at the 15-252 dual support, which holds two Series 160 coils. Take a look and review the specifications shown on our product pages, along with the related items, to confirm if these parts would work for your repair. Thanks for posting!

Home Owner from USA
I will verify the parts you suggested with what I have in place. The part I have in place have 11 stamped on them. Do I purchase two 10 lbs coil springs or two 5.5 lbs springs for each side?
Casey
Casey from SWISCO
SWISCO
Expert

Two of the S160-5 coils would support a total of 11 pounds on each side since they support 5-1/2 pounds each.
