11 4 F5 Caldwell channel window balance

Question

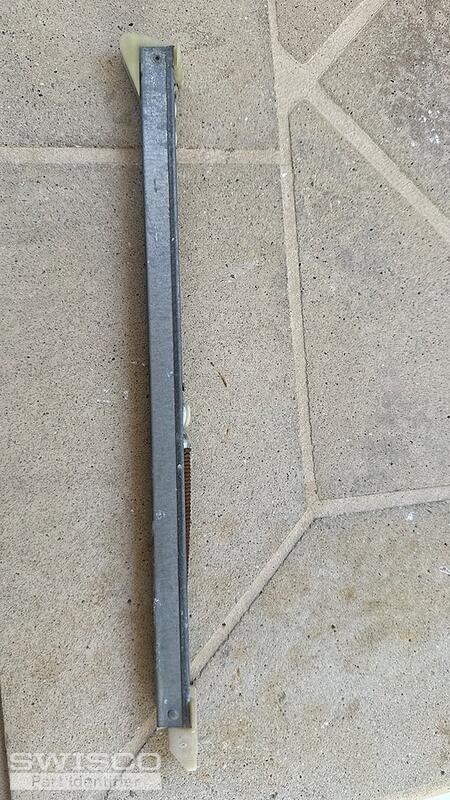

Need two of these to replace worn out window balances in the shower master bedroom. Small vent type window
The channel measures 1/2 " if that's any help. Thank

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-12 or S385-12 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 1140 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
