110106 90510 2454 Pella Mortice

Quick Learner from Ohio

Hi I have quite an old Pella storm door and I need a replacement mortice lock. inside the door frame was this number 110106 90510 2454.

I can send a photo if needed. The lock has a handle & cylinder lock with a turnknob.

Hope this helps, many thanks, Mike

4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but we would need to see photos of your assembly, along with written-out dimensions, to compare to our inventory. Thank you!

Quick Learner from Ohio

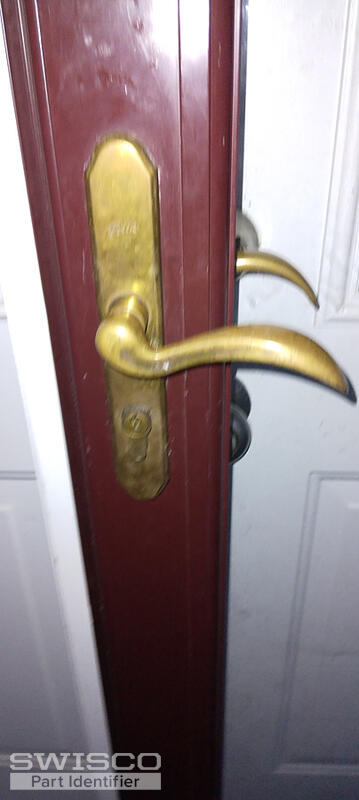

Hi & thanks for getting back to me. I will include photo's in this email. I have bought a new handle set from Lowes which is in pewter color. The old lock was brass which I will include in a photo.

I do need the cylinder keyed lock with inside turn knob too.

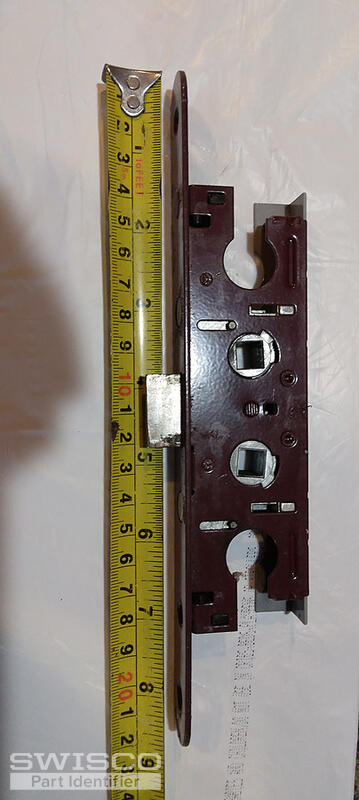

It is 8.5 inches long. Lock is 5.5 inches & 1.5/8 inches deep.

Thanks for your help on this matter.

Mike

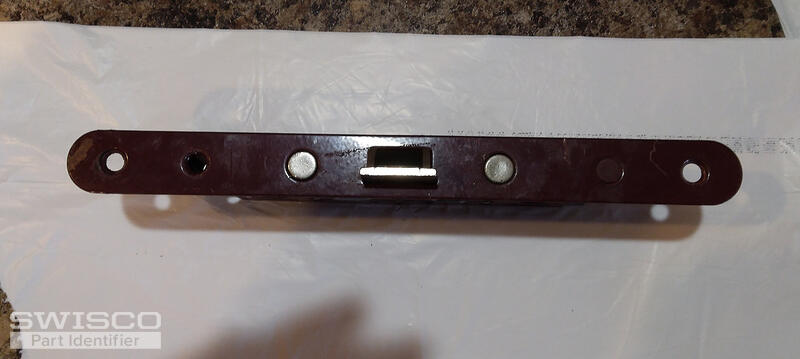

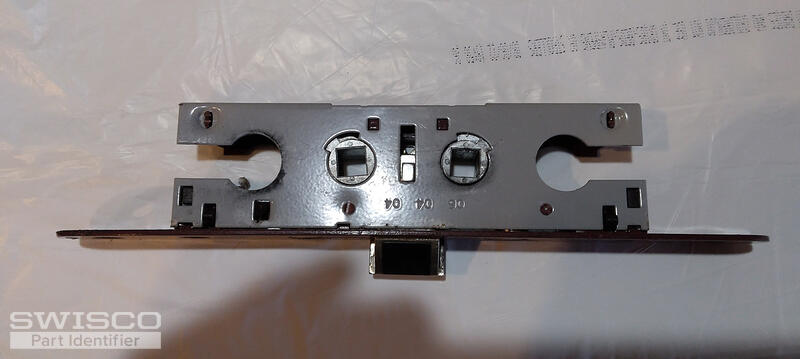

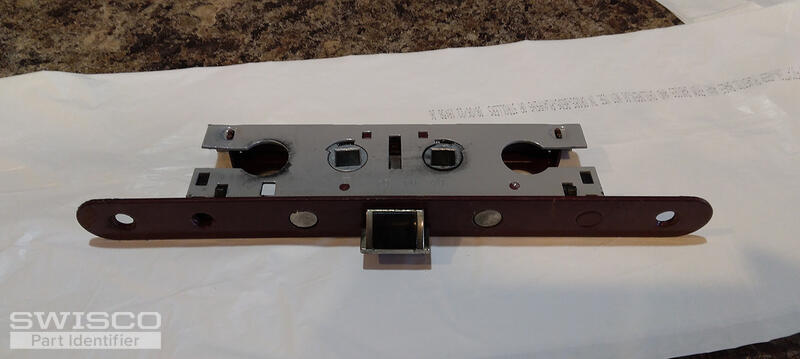

5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your photos look like a match to the 40-191 Pella mortise lock. We also offer the 40-199 keyed lever set. The thumbturn that comes with the handle set is not available separately, but the 40-123 or 40-129 may be compatible depending on how the specifications match up to your original part. Take a look and see what you think.

Alternate image for 40-191
Alternate image for 40-191

Alternate view for 40-123
Alternate view for 40-123

Dimensions for 40-123
Dimensions for 40-123

Alternate image for 40-129
Alternate image for 40-129
