These are from a milgard single hung window.
Markings:
23 9 CW CMC 8

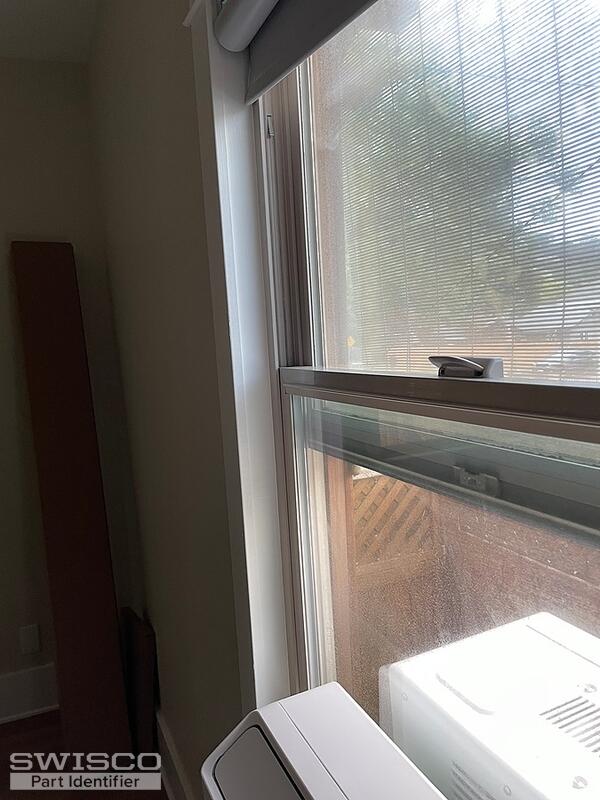

I can't show them installed as they have come out, but have photo'd the window
Please advise which I should order? - Thanks!
1/2" Wide Channel Balances for non-tilt windows
Quick Learner from Los Angeles CA
May 16, 2025 10:17 pm
5 user uploaded images
8 Replies
Emily from SWISCO
May 20, 2025 1:57 pm
Hi there!
Take a look at the S380-24 or S385-24 channel balances. The best match will depend on the depth of the bottom shoe, as shown below.
Can you weigh the window sash on a scale and tell us the precise weight? The 23 9 stamp is from an older rating system that we don't use, so we need the weight to determine the proper stamp.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from Los Angeles CA
May 21, 2025 6:52 pm
Hi -

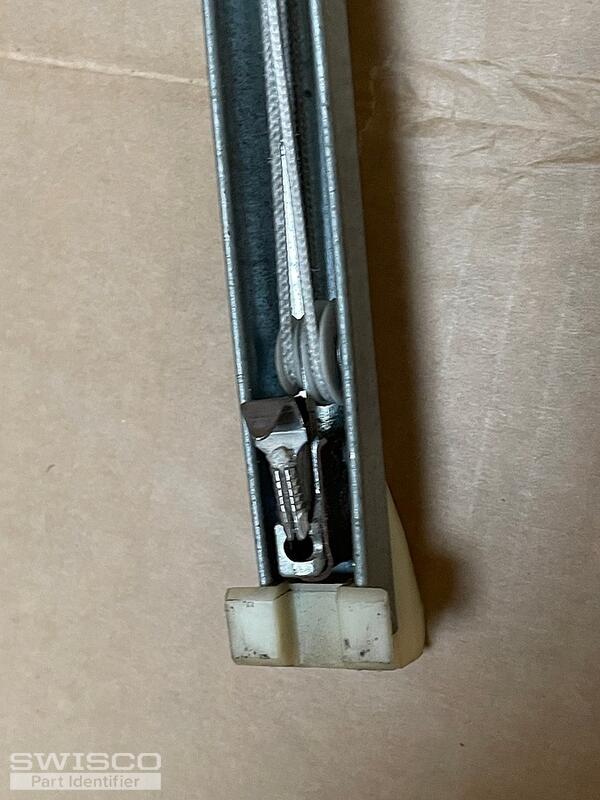

The width of the bottom shoe piece is 1 inch. So that means its the S380?
Do you mean weigh the actual window? I don't have a scale unfortunatley so am unable to.
The width of the bottom shoe piece is 1 inch. So that means its the S380?
Do you mean weigh the actual window? I don't have a scale unfortunatley so am unable to.
Quick Learner from Los Angeles CA
May 21, 2025 7:02 pm
Ok - I see why I need it when I went to order the cahnnel balance : )
Does it matter if I order one over weight?
Does it matter if I order one over weight?
Quick Learner from Los Angeles CA
May 21, 2025 7:22 pm
I contacted Milgard they said the 23 9 bit is the relevant part for weight and that my channel balancer supports up to 32llbs. So would I be ok to order the 2365 Series 380 24 inch balancer?
Emily from SWISCO
May 22, 2025 8:51 am
Yes, you'd want the S380-24 since the bottom shoe is 1" deep. However, we can't be certain which of the stamp options is best for your window without knowing the sash weight. If the window weights exactly 32 pounds, you could select the 2365 stamp option.
However, if the window doesn't fall within the 30 to 34-pound weight range, the window will be difficult to close.
Quick Learner from Los Angeles CA
May 22, 2025 10:02 am
Ok - thanks. I'll see if I get can get a scale and weigh the window.
Emily from SWISCO
May 22, 2025 1:11 pm
No problem at all. Please don't hesitate to reach out if you need anything else!
