1/2 " channel balance id

A quick learner from daytona,fl says:
July 24, 2018
have 5 windows with 23" long balancers and 16 windows with 18.5" balancers
can you id them and are the replacements available ??

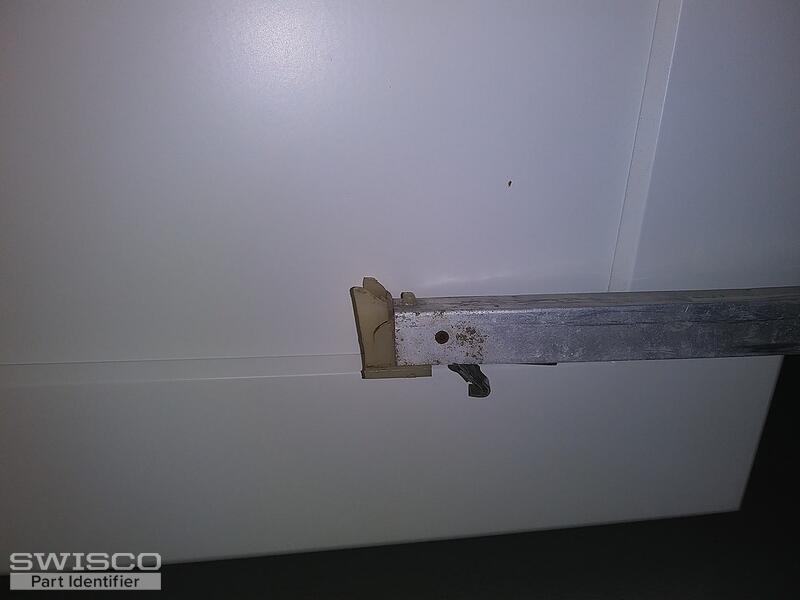

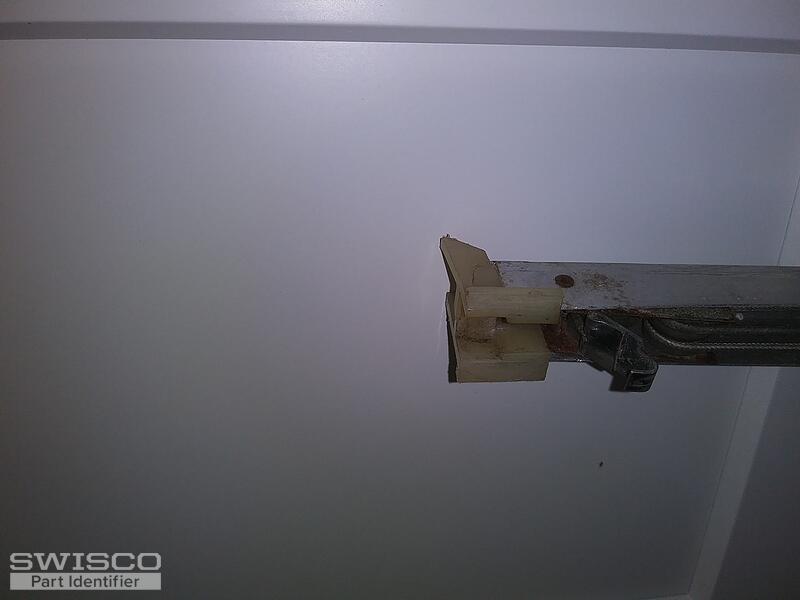

the first 2 pictures are the top,the next 3 are the bottom
the plastic is 1" wide
thanks
MIke
Profile picture of Paul
Paul from SWISCO responded:
July 31, 2018

We can replace these balances, but they will have to be specially made. I believe they will use a 19-035 top attachment and 15-007 bottom attachment. Before we can go any further, can you tell me the stamps printed on both the 23" balance and 18.5" balance? Can you also confirm you only need two balances per window? Once we have this information, we'll email you a special order link and price quote for each.
A quick learner from daytona,fl says:
July 31, 2018
i could not find anythng stamped on the balancers i saw,
will go and check some more ,will get back to you tommorrow.
and yes do need 2 balancers per window
thanks
Mike
Profile picture of Tom
Tom from SWISCO responded:
July 31, 2018

Great, thanks! If your balances don't have stamps, we'll need to know the exact weight of each of the two different sized sashes you're replacing. Let me know!
A quick learner from daytona,fl says:
August 1, 2018
the 23" sash wieght=9Lbs,balancer stamp-141
the 18.5 sash=8lbs,stamp-131
Profile picture of Tom
Tom from SWISCO responded:
August 7, 2018

Great, thanks! I'll email you a custom order link and price quote for both right now.
Channel Balance Shoe, Pan Am
Channel Balance Shoe, Pan Am
15-007
$1.54
Channel Balance Top, Pan AM
Channel Balance Top, Pan AM
19-035
$2.63
