1/2" non-tilt channel balance

Start a new Discussion

Quick Learner from South Florida

Oct 9, 2021 3:29 pm

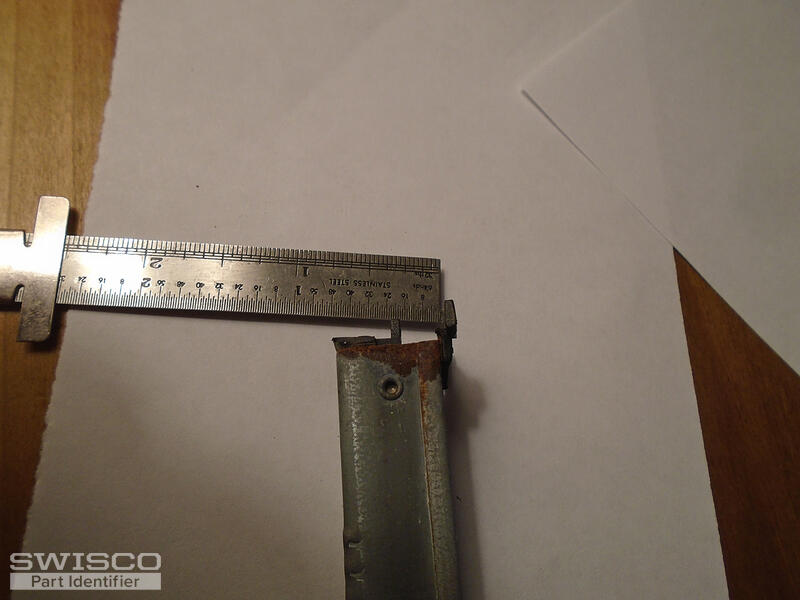

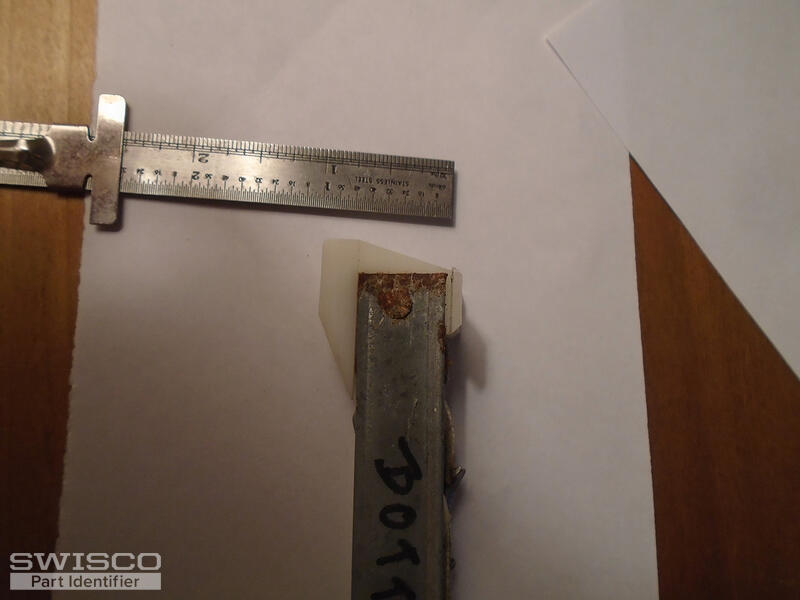

First is length 18". Stamped 17 1 D I
Second is length 30" NO markings.
Both have same plastic ends.

5 user uploaded images

4 Replies

Bob from SWISCO

Oct 15, 2021 9:43 am

Thanks for posting. For the 18" balance, you'll need balances stamped 1710 with the 19-042 Top and 15-005 Bottom attached. None of our stock balances use this configuration, but we can easily provide it for you via custom order. I am sending you an email with a purchase link for two(2) of these balances right now.

For the 30" balances with the same configuration, please give us the exact weight of the window sash that uses these balances. We can then work out the stamp these balances should have (that designates their strength). I will then send you a quote for those as well.

Quick Learner from south Florida

Nov 16, 2021 7:48 am

Originals are all 1/2" Caldwell Manfu. non-tilt side load window balance
Per your previous email tops are 19-042. Bottoms are 15-005
I would like to order the following:

2 stamped 23-2 24" long
2 stamped 23-3 24" long
6 stamped 29-2 30" long

Bob from SWISCO

Nov 18, 2021 12:58 pm

Thanks for posting again. I just sent you an email with three purchase links: one to order six of the balances stamped 2920; a pair of the balances stamped 2320 and a third for a pair of the balances stamped 2330. All of these balances will have the 15-005 Bottom and 19-042 Top fittings attached. Let me know if you have any questions prior to placing this order. Many thanks.
