1/2" wide channel balance

A home owner from Brush Prairie, WA says:

I have 27" long (steel part) balances. They are stamped with the number 2640.

They are for single hung sash windows. They resemble your S370. I would really

like to get some replacements. Please advise on what to order.

Thank you,

Tom

Profile picture of Tom
Tom from SWISCO responded:

We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings. The video below will go into more detail.

A home owner from Brush Prairie, WA says:

Hi Tom,

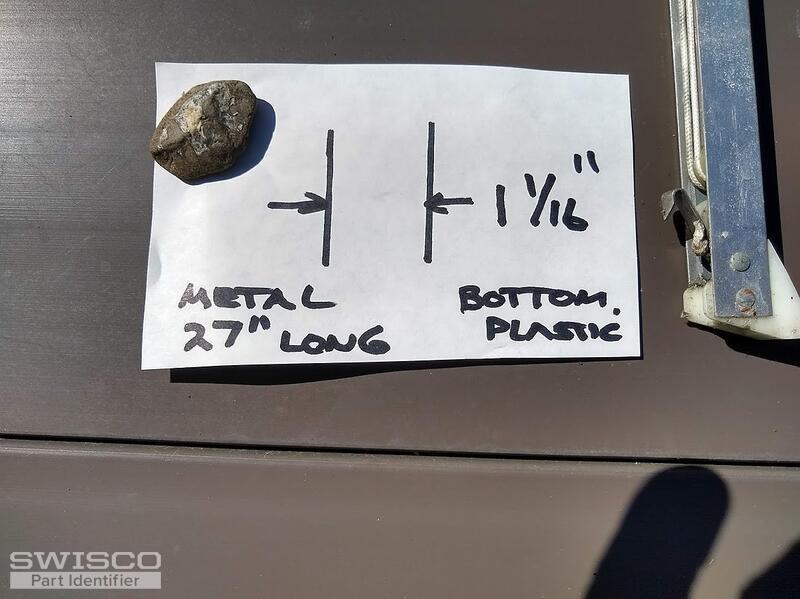

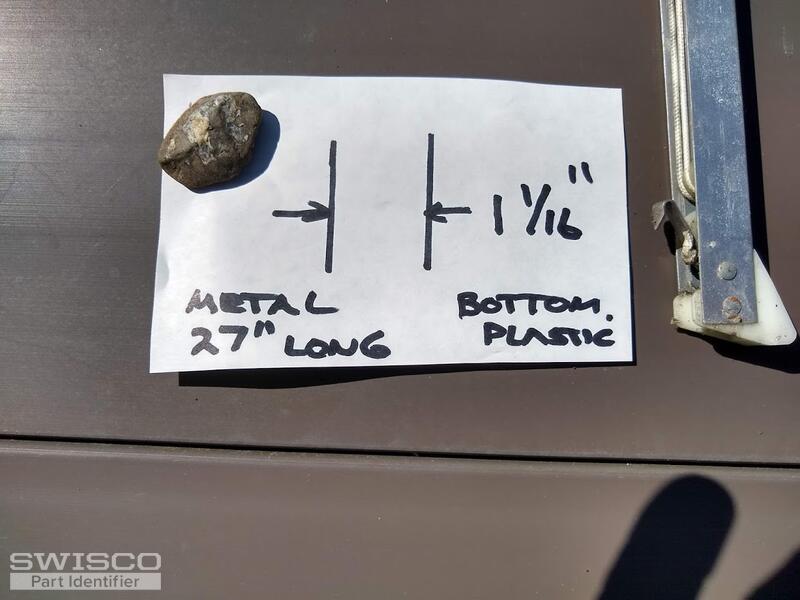

Attached photos of my 27" long (metal to metal) balances.

Hope this works.

Thank you,

Tom

Thumbnail of the uploaded file named IMG_20210527_161323519_HDR.jpg
Thumbnail of the uploaded file named IMG_20210527_161334230_HDR.jpg
Thumbnail of the uploaded file named IMG_20210527_161336352_HDR.jpg
Thumbnail of the uploaded file named IMG_20210527_161410614_HDR.jpg
Thumbnail of the uploaded file named IMG_20210527_161413899_HDR.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you so much, this information is exactly what we needed. I believe you want the S385-27 channel balance. This shoe is 1-3/32" deep, not 1-1/16", but I think that yours likely was once 1-3/32" and just wore down from years of use. I see it all the time.

Please let me know if you had any other questions!

A home owner from Brush Prairie, WA says:
Hi Tom,

The S385-27 appears to come with a winged bottom shoe. I saw some
balances with a 15-001 shoe (1 1/16" wide), that looks more like mine.

What do you think?

Thanks,
Tom
Profile picture of Tom
Tom from SWISCO responded:

I'm so sorry for the mixup. I actually thought your bottom shoe had wings, based on these images, but I guess it was just a trick of the angle. If it doesn't, then you want the S395-27 instead. This has a 19-005 top and 15-001 shoe. Let me know what you think!
