1/2" x 30" Stamped A2930

A home owner from Miami, FL says:
December 29, 2020
Will need 6 of these.
Thumbnail of the uploaded file named IMG_0871.JPG
Thumbnail of the uploaded file named IMG_0872.JPG
Thumbnail of the uploaded file named IMG_0873.JPG

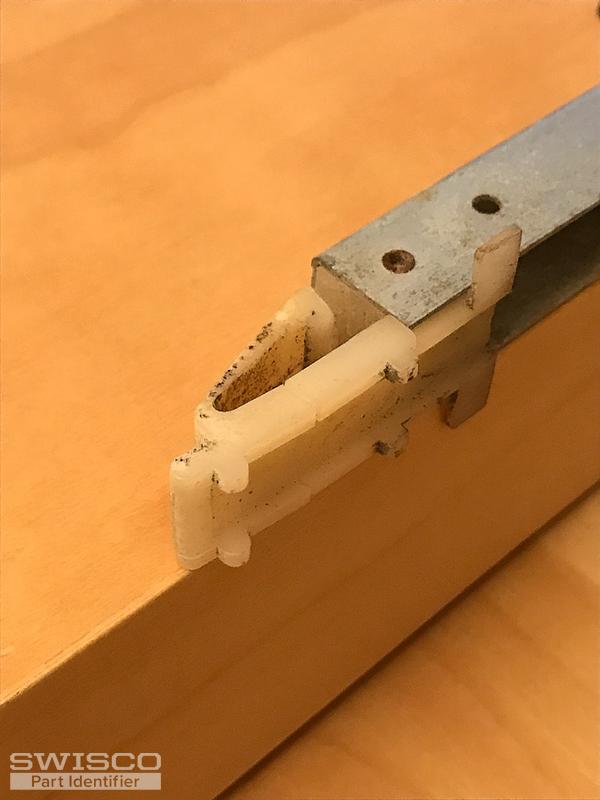

Thumbnail of the uploaded file named IMG_0877.JPG

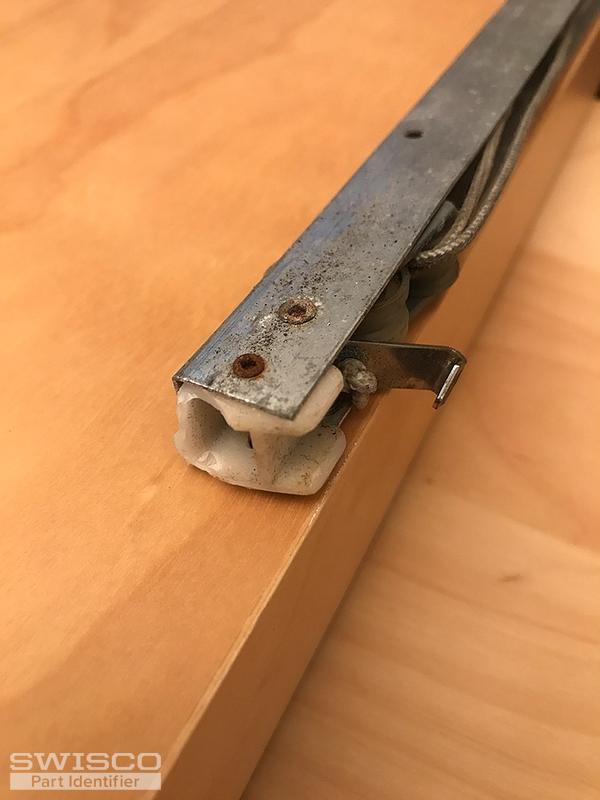

Thumbnail of the uploaded file named IMG_0881.JPG
Profile picture of Tom
Tom from SWISCO responded:
December 31, 2020

We can supply this balance, but it will have to be a custom order due to that top fitting of yours. That's the 19-039, which is not sold on any stock assemblies. We have to make it in-house.

Before we go any further, though, I will need you to confirm what the bottom nylon fitting is. There are two options: the 15-001 and the 15-002 The only difference between them is their depth, which you can see on each product's respective store page. Please review the dimensions we show there and let me know which one to go with. After that, I'll email you a purchase link and price quote for 6 balances.
A handy person from Miami says:
January 5, 2021
The bottom is the 1" depth 15-002.
Profile picture of Tom
Tom from SWISCO responded:
January 5, 2021

Thanks! I'll send that out to you right now.
Channel Balance Shoe, 1-1/8" Depth
Channel Balance Shoe, 1-1/8" Depth
15-001
$0.74
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
Top Balance Attachment, Jones
Top Balance Attachment, Jones
19-039
$1.54
