1310 Channel Balance

Handy Person from CA

Oct 16, 2023 2:28 pm

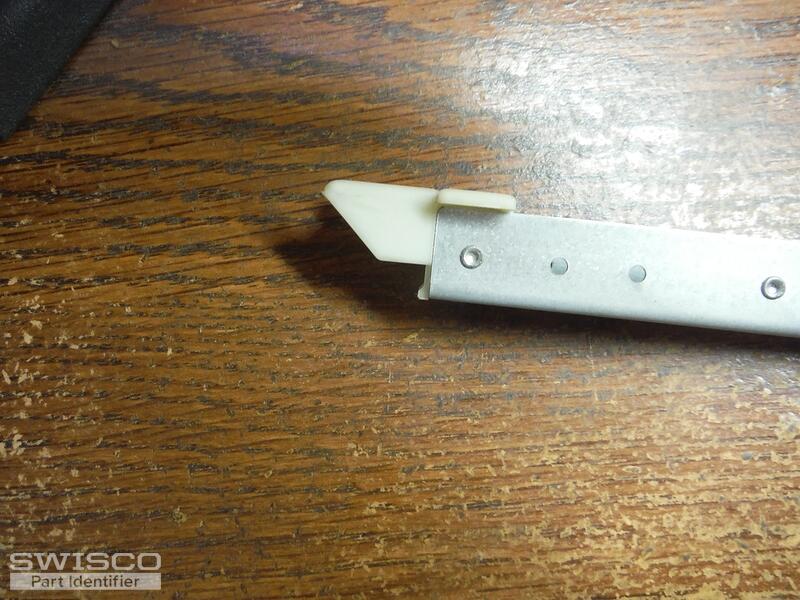

String broke on channel Balance. Marked 1310 BSI or BS1 - ends pictured as below. Would like to purchase set of both left and right sides. Located at zip 95709. Thank you. Lee

4 user uploaded images

1 Replies

+ Add a Comment

Casey from SWISCO

Oct 17, 2023 11:22 am

EXPERT

Hello,

With this combination of attachments, you could have either the S380-14 or S385-14 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 1310 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
