14 2 FX CMC 11 Balance

A quick learner from Torrance, CA says:
October 15, 2021

Hi,

I need to replace the balances on my bathroom window.

The code on the back of the balance is:

14 2 FX CMC 11

I'm not sure which balances I should order.

The length of the balance is 15".

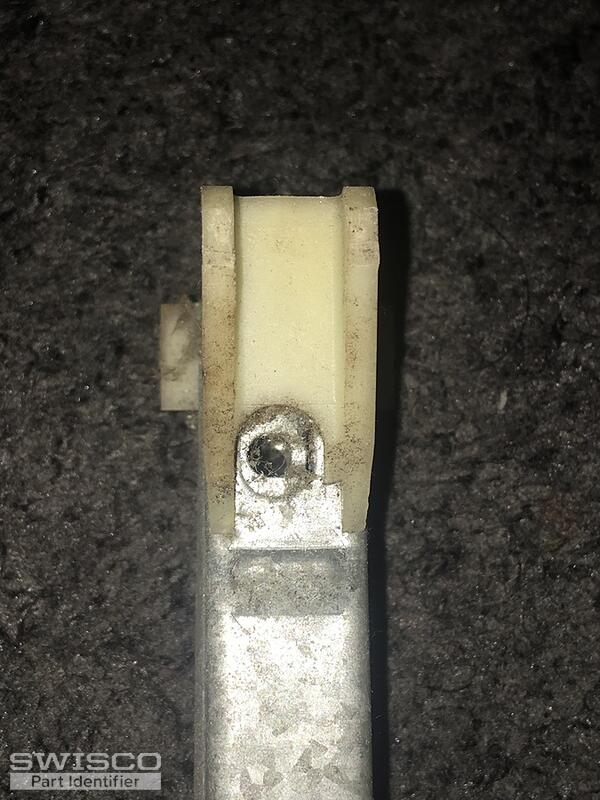

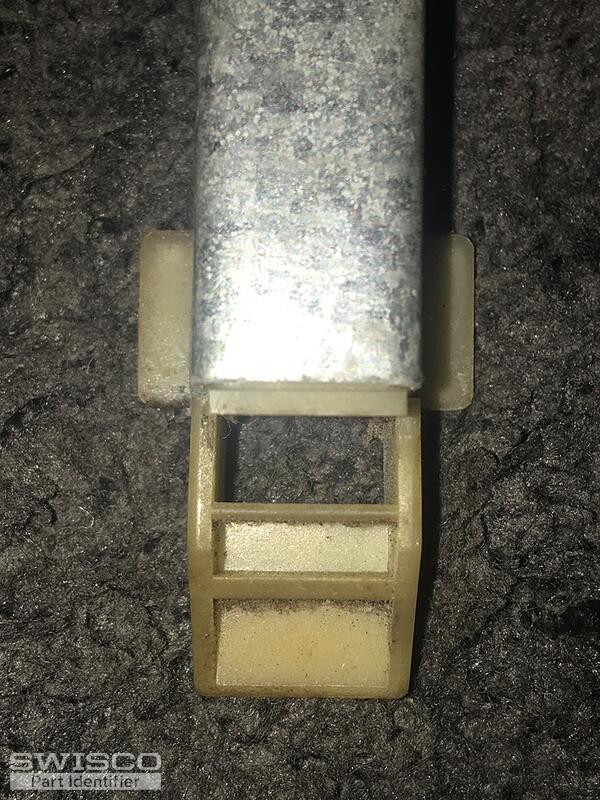

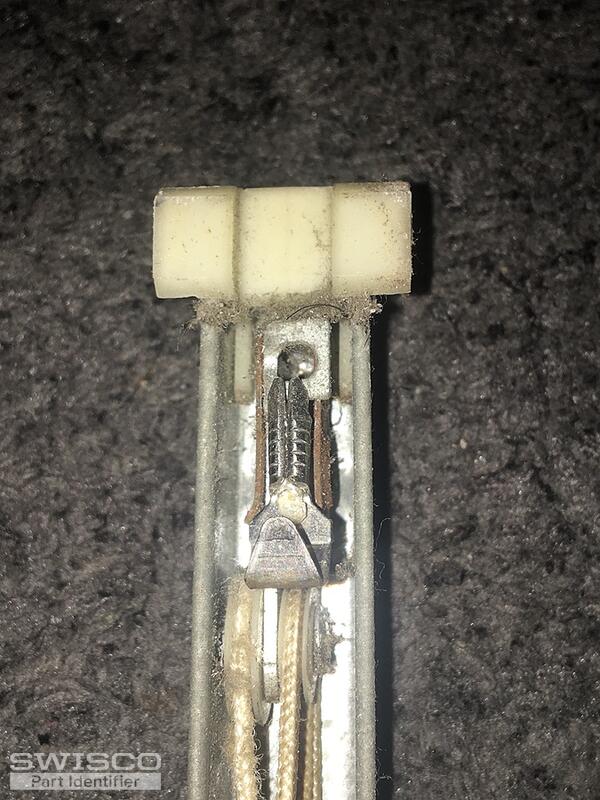

I have included pictures of both ends, front and back and a close up of the hook.

Appreciate the help,

Thanks jared

Thumbnail of the uploaded file named 22929781-B346-445E-9C66-FC7EC4E937BC.jpeg
Thumbnail of the uploaded file named 21E48558-FEAA-427F-8107-BDE1977B8628.jpeg
Thumbnail of the uploaded file named 628F956C-A9DD-49EF-A479-31927506B999.jpeg
Thumbnail of the uploaded file named 8E28F0EE-F144-4C65-B8B7-84D5033851E7.jpeg
Thumbnail of the uploaded file named DA0B6168-8312-4F43-8886-1648AEF98675.jpeg
Profile picture of Casey
Casey from SWISCO responded:
October 20, 2021

Hello,

With this combination of attachments, you could have either an S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1420 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
15" Series 380 Channel Balance
15" Series 380 Channel Balance
S380-15
$9.34
15" Series 385 Channel Balance
15" Series 385 Channel Balance
S385-15
$9.34
