14-3 BE5 CMC 75

Quick Learner from California

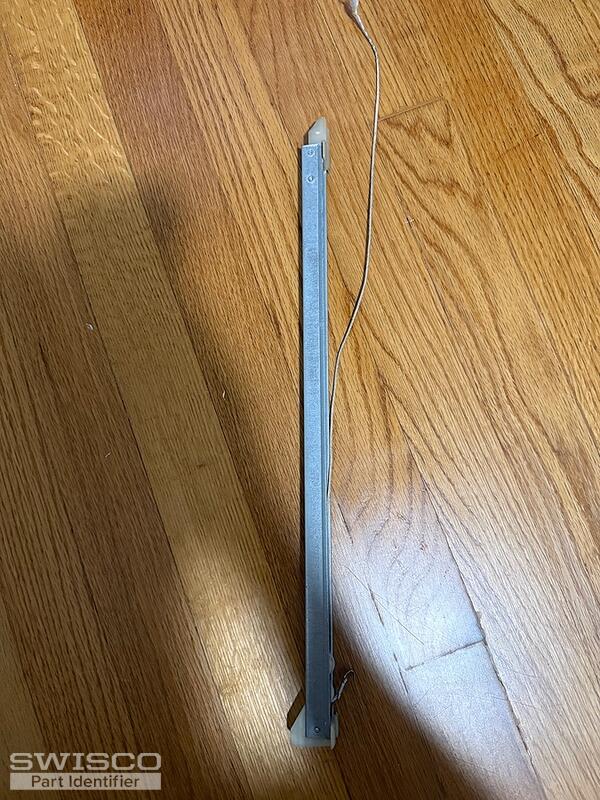

Trying to figure out what will be the best match to my 14-3 BE5 CMC 75 balance. Wondering if anyone has any suggestions?

4 user uploaded images
5 Replies
Quick Learner from California
Mercer window
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Thanks for reaching out to us. Your balance is a match for the S380-15 or S385-15, depending on the depth of the bottom shoe. Measure as shown below to determine the best match. You can also select the 1430 stamp option for the replacement balances.

Please let us know if you have any questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Quick Learner from California has
Thanks for responding, Emily. After measuring, I have the 1 3/32 model.

Emily
Emily from SWISCO
SWISCO
Expert

In that case, you'd want the S385-15 with the 1430 stamp option.

However, before placing your order, can you also show us a photo of the inside of the balance's metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. You'll have to use an undamaged balance as a reference.

My apologies for not asking for this before!
