14-9 single hung 15" channel

Question

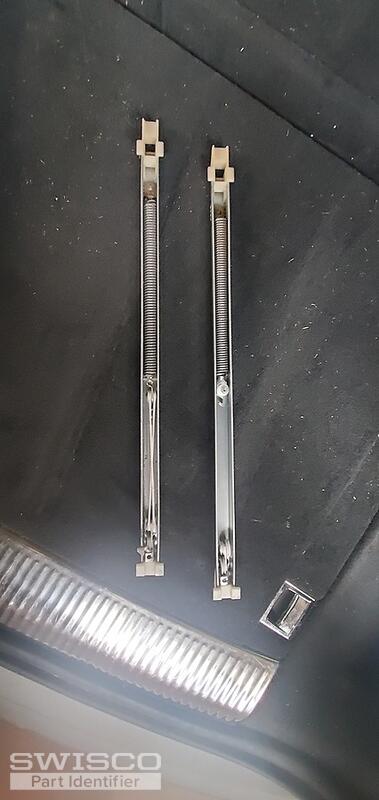

Window track - stamp 14-9 (a.k.a. stamp 1490) single hung 15" channel block and tackle window balance with side load sash

Block and Tackle Window Balances (a.k.a. Channel Balances)

Wings - small plastic attachments at the ends

Side Load Sash (not Tilt Sash)

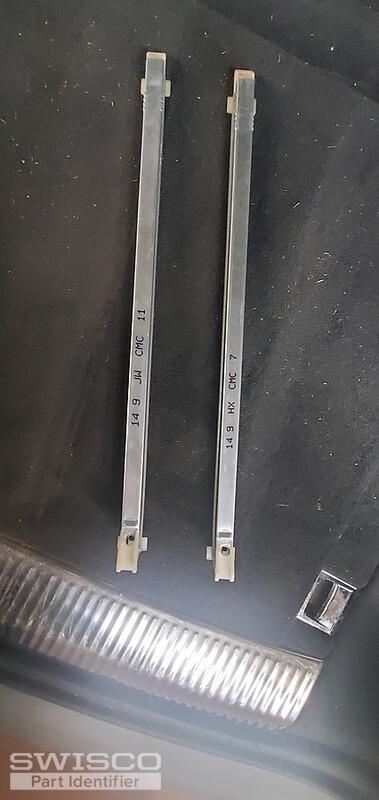

14 9 JW CMC 11
14 9 HX CMC 7

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
