15-045 shoe won't fit, too fat

A quick learner from Missouri says:
September 17, 2020

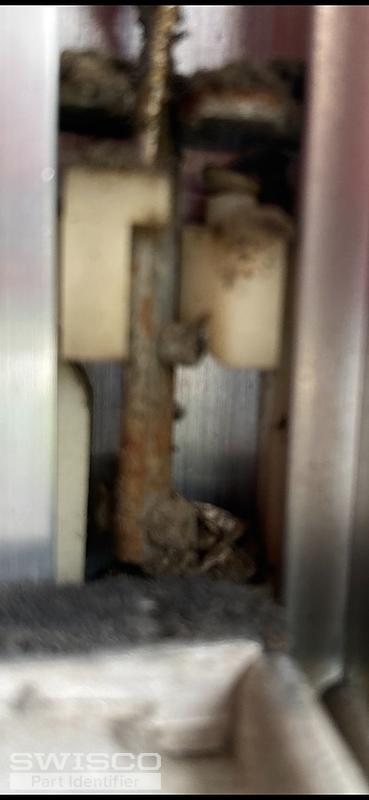

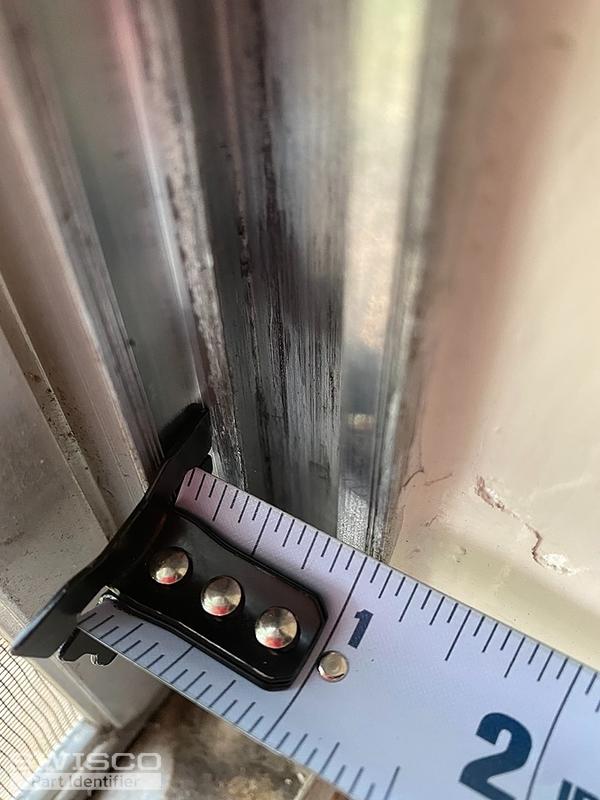

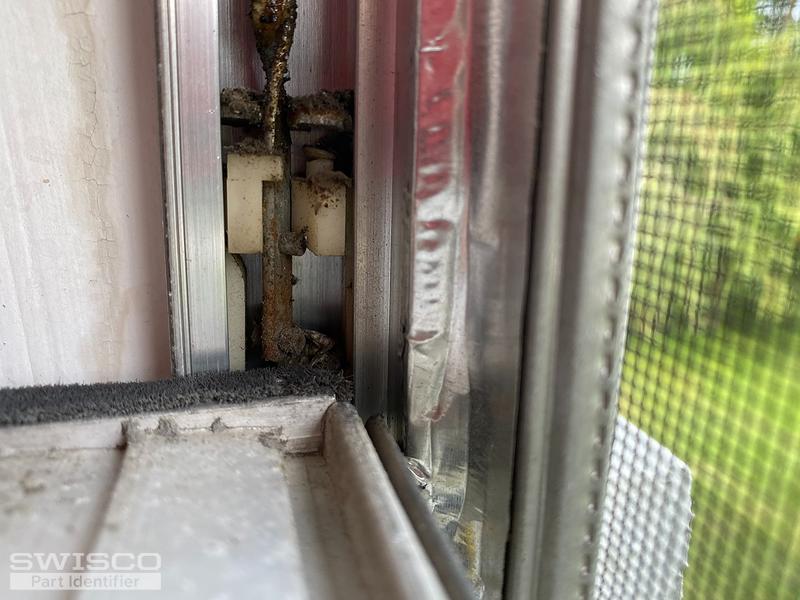

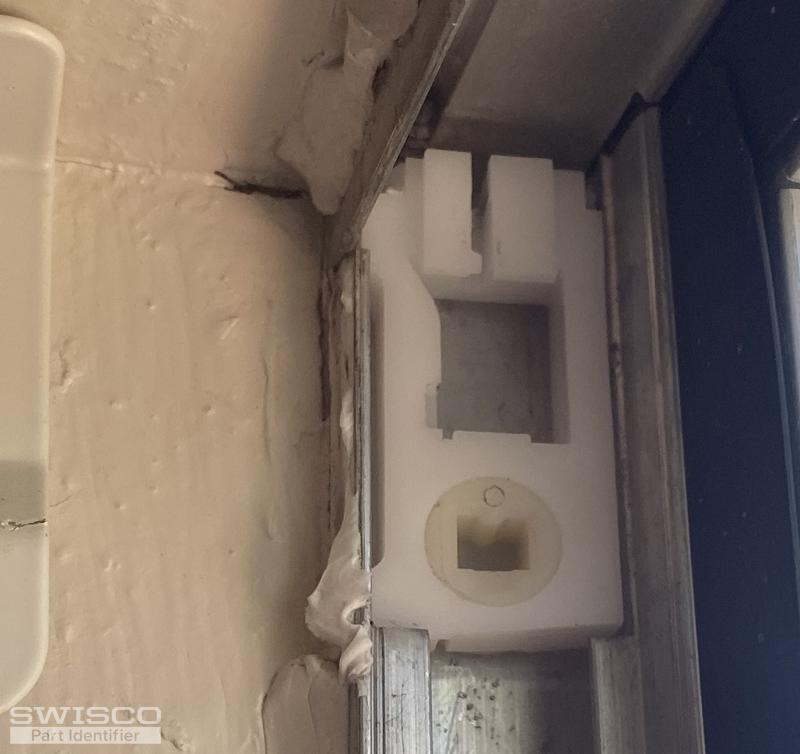

I bought the 15-045 shoes but they won't fit into my jamb channel. Do you have anything thinner?


Thumbnail of the uploaded file named Hee 1.jpg
Thumbnail of the uploaded file named Hehaa 4.jpg
Thumbnail of the uploaded file named HeHaaw 3.jpg
Thumbnail of the uploaded file named HeHaaw 2.jpg
Profile picture of Bob
Bob from SWISCO responded:
September 22, 2020

Sorry to hear that the 15-045 didn't work for you. We also carry the 15-134 and 15-173, which are incrementally less wide at 31/32". But both are still at least 3/8" thick (the 15-173 is 9/16" thick). Take a look and see what you think.
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-045
$1.85
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
