15 1 FS caldwell

A quick learner from california says:
16 inch end to end of metal piece
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting! Were you looking for a replacement channel balance? If so, I'm afraid that this stamp doesn't tell us much. It only indicates the calibration of the spring.

In order to identify your Series, we'll need to see a clear picture of the top and bottom nylon fitting. That will allow us to match up the combination of fittings to something in our inventory.

Please make sure that your pictures are as clear as possible and that the hardware shown is whole and undamaged. It's very difficult to ID damaged hardware.

A quick learner from california says:

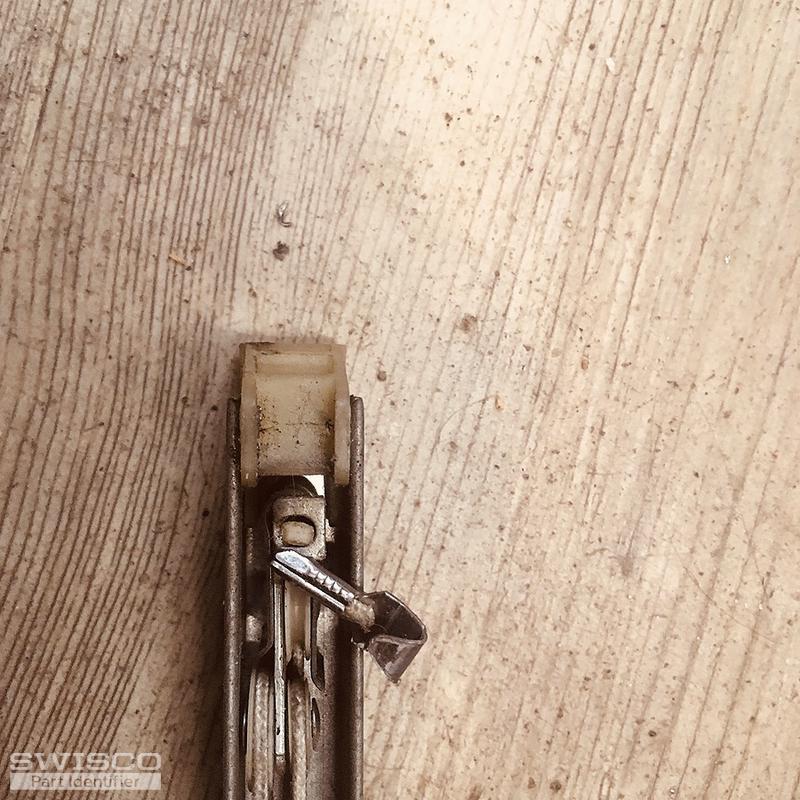

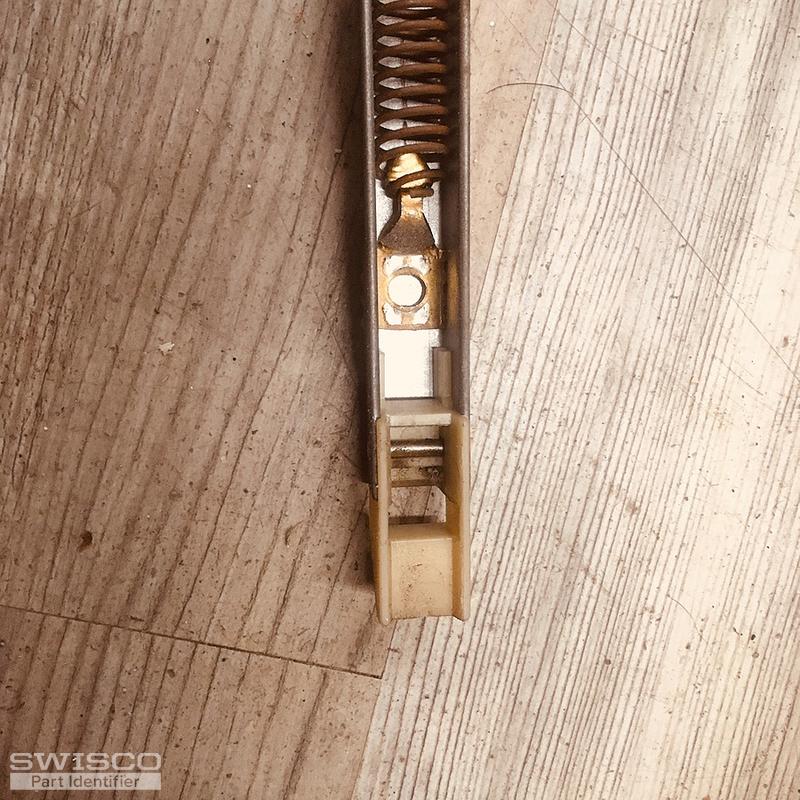

Here are the pics you requested
Thumbnail of the uploaded file named 87217A3D-09CE-4E3D-BCA3-C5EFF69B3911.jpeg
Thumbnail of the uploaded file named B932463E-BFB6-4CBE-A4E2-8ECA6E91983F.jpeg
Thumbnail of the uploaded file named CEBF16CC-C9F2-4681-B897-8EB3769A1C9D.jpeg
Thumbnail of the uploaded file named AE7ECC42-1B45-47D0-ADFC-8B50BD9C7D23.jpeg
Thumbnail of the uploaded file named 0798A3C2-4AB7-4F03-9E86-F86F4559DDEC.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Perfect, these are exactly what I need to see. I was able to narrow it down to two possible replacement balances: either our S390-16 or S351-16. The only difference between these two assemblies is the depth of the bottom fitting, so you'll have to measure yours to confirm the better choice between them.

Regardless of which one you go with, I'd also recommend the 1510 stamp option when prompted.

A quick learner from california says:
thank you for your help
