15 4 JR CALDWELL

Start a new Discussion

Quick Learner from CALIMESA, CALIFORNIA

Sep 29, 2022 4:45 pm

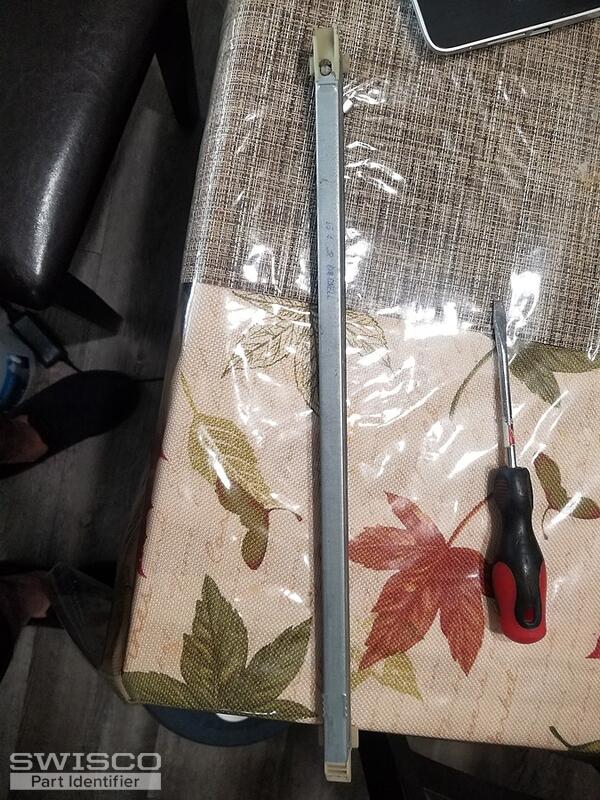

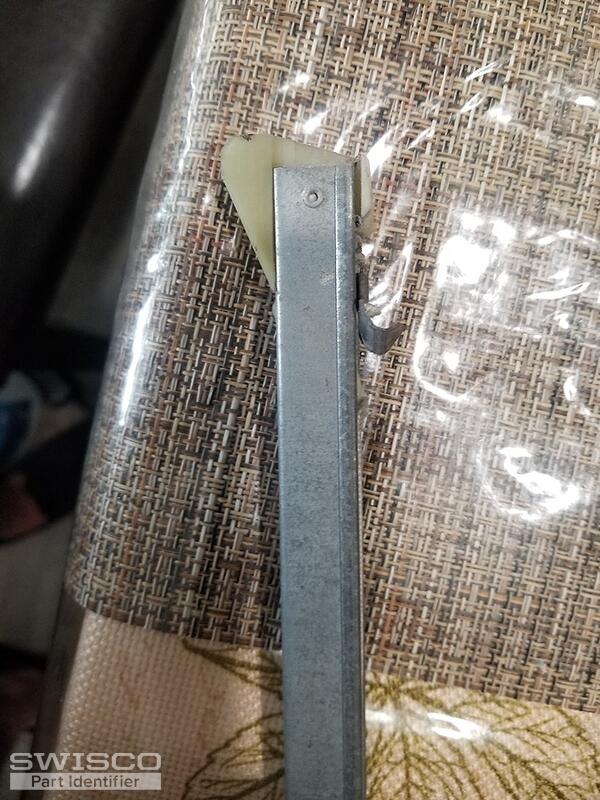

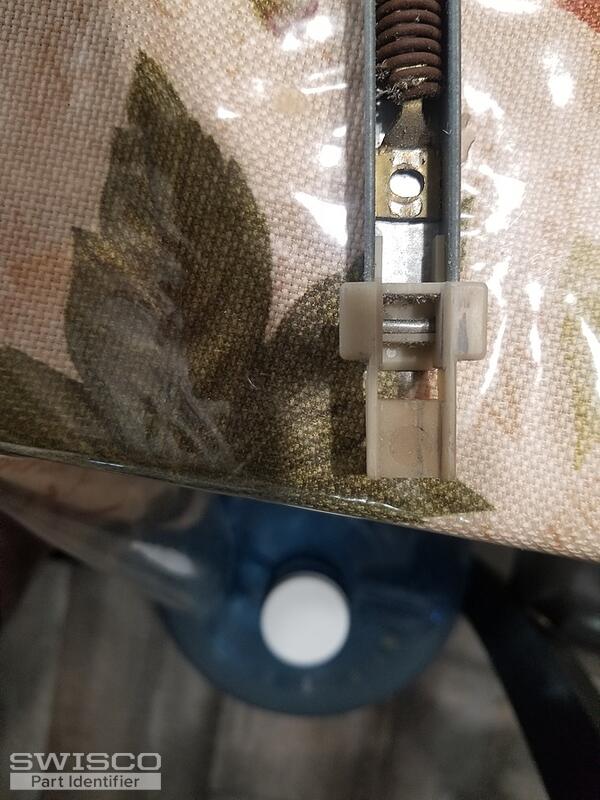

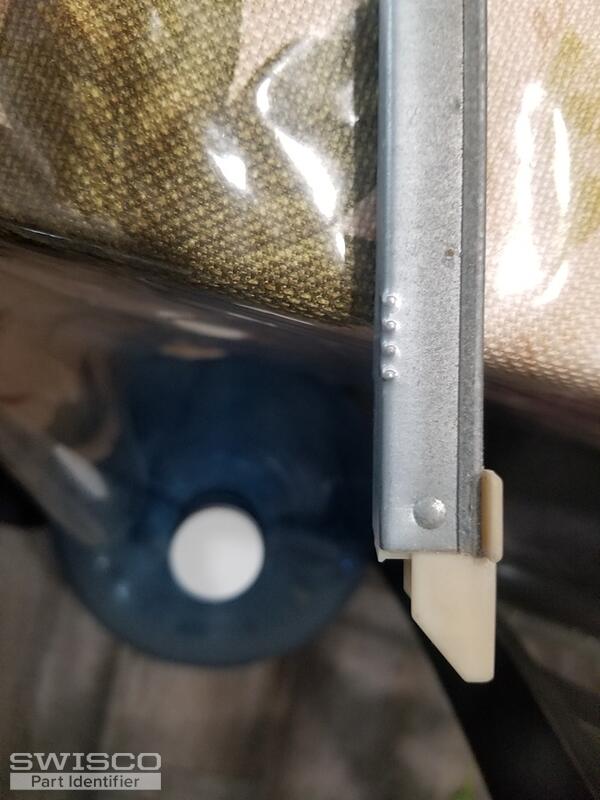

I NEED TO ORDER TWO REPLACEMENT CHANNELL BALANCE FOR MY WINDOW.

4 user uploaded images

3 Replies

Quick Learner from CALIMESA, CALIFORNIA

Oct 3, 2022 3:52 am

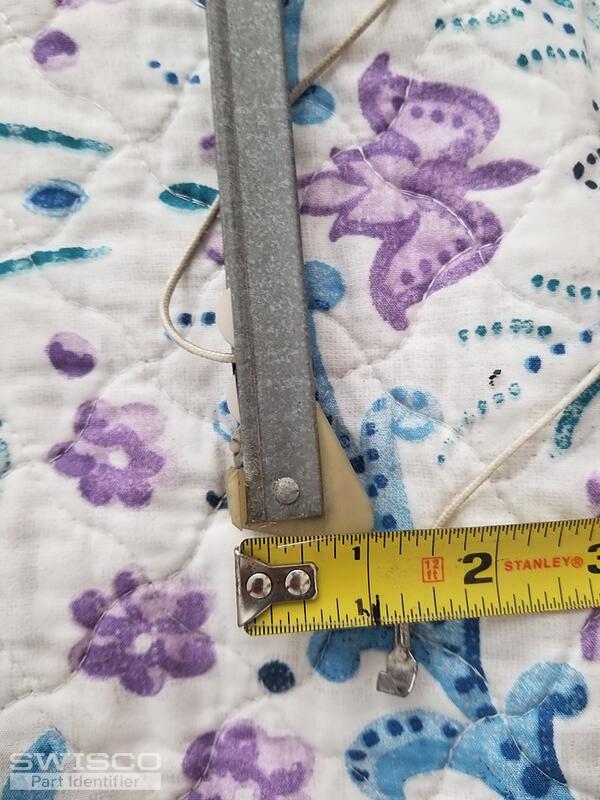

The balance measures 16 inches and has numbers 15-4 JR Caldwell

4 user uploaded images

Casey from SWISCO

Oct 4, 2022 1:57 pm

Hello,

With this combination of attachments, you could have either an S380-16 or S385-16 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 1540 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
