15 inch Balance

Quick Learner from Portland, OR
Apr 29, 2024 12:31 pm

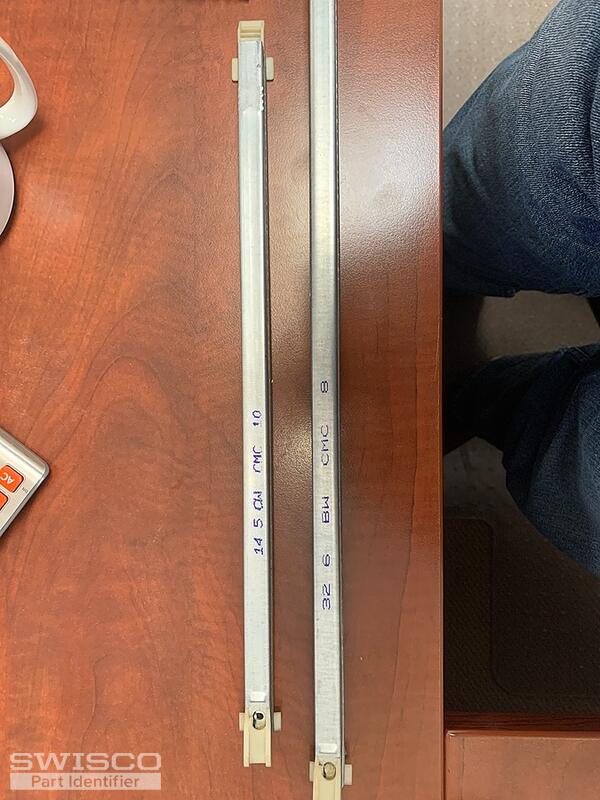

Metal length 15 inches. Marked with "14 5 CW CMC 10".
IMG_3844[1] IMG_3846[1] IMG_3850[1] IMG_3848[1]
4 user uploaded images
4 Replies
Quick Learner from Portland, OR
Apr 29, 2024 12:34 pm

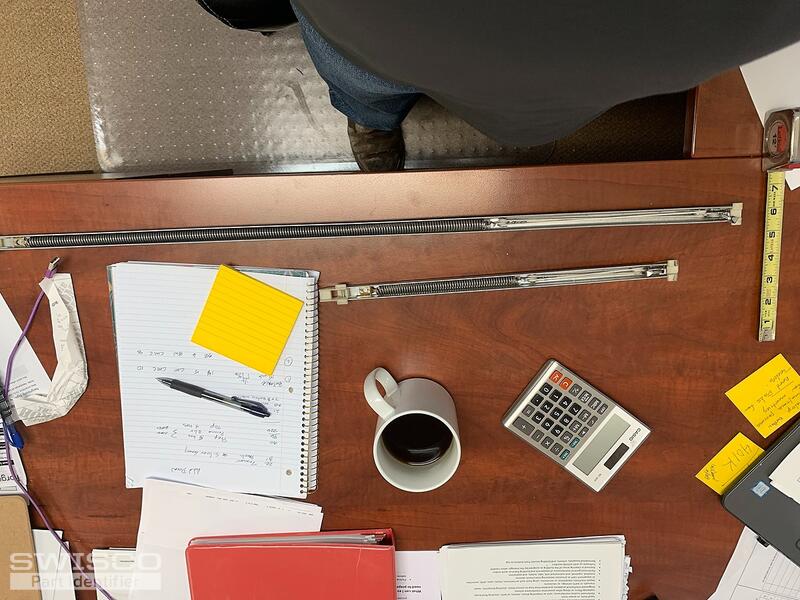

1/2 inch metal measuring 33 1/8 inch long. Marked with "32 6 BW CMC 8".
IMG_3844[2] IMG_3846[1] IMG_3850[1] IMG_3848[1]
4 user uploaded images
Jasmine
Jasmine from SWISCO
Apr 30, 2024 3:21 pm
SWISCO
EXPERT

Hey there,

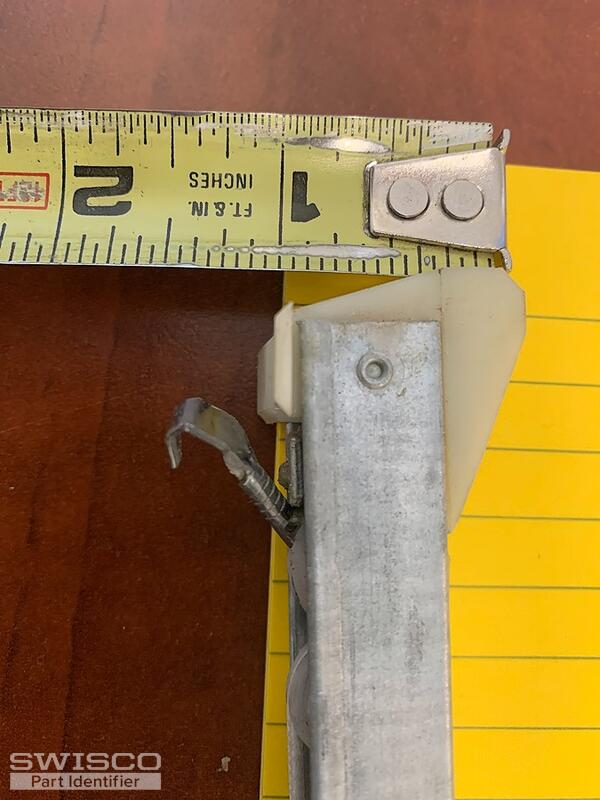

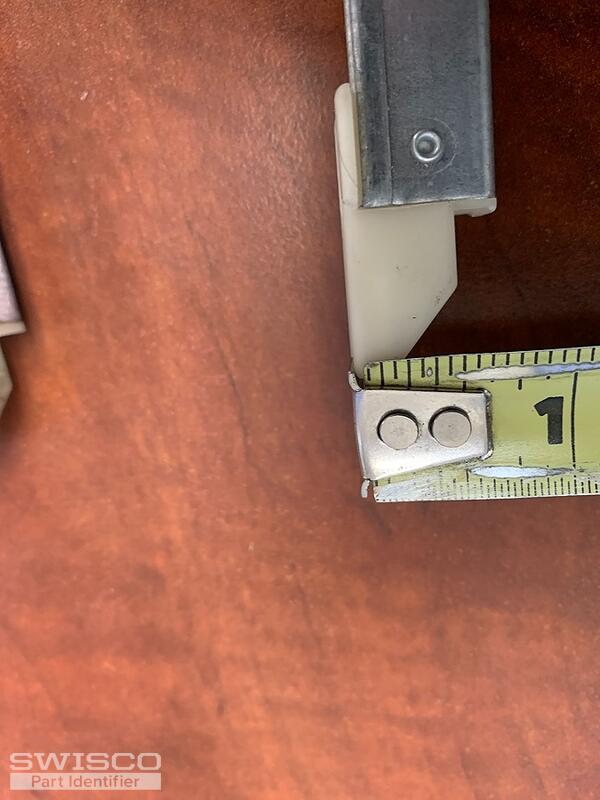

Thanks for writing in! Your channel balances look like they can be replaced with either the Series 380 Channel Balance with a 1" shoe or the Series 385 with a 1-3/32" shoe. To confirm which series you need for your replacements, you'll need to double check the measurement for the depth of your bottom shoe. Unfortunately, I cannot identify it based on the photo the measuring tape.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

For the 15" balance, you'll need to select the 1450 stamp. Regarding the other balance, I would suggest double checking the length of the metal channel, it should be 33"; for this one you'll need to select the 3260 stamp option.


Quick Learner from Portland, OR
Apr 30, 2024 10:00 pm
Thank you. I ordered balances. Again, Thank you.
Jasmine
Jasmine from SWISCO
May 1, 2024 8:46 am
SWISCO
EXPERT

I'm happy to help! Please don't hesitate to reach out with any other hardware repair projects you may have.

Have a great day!
