15" window track off of a philips window
Quick Learner from Eugene OR
Nov 11, 2020 2:34 pm

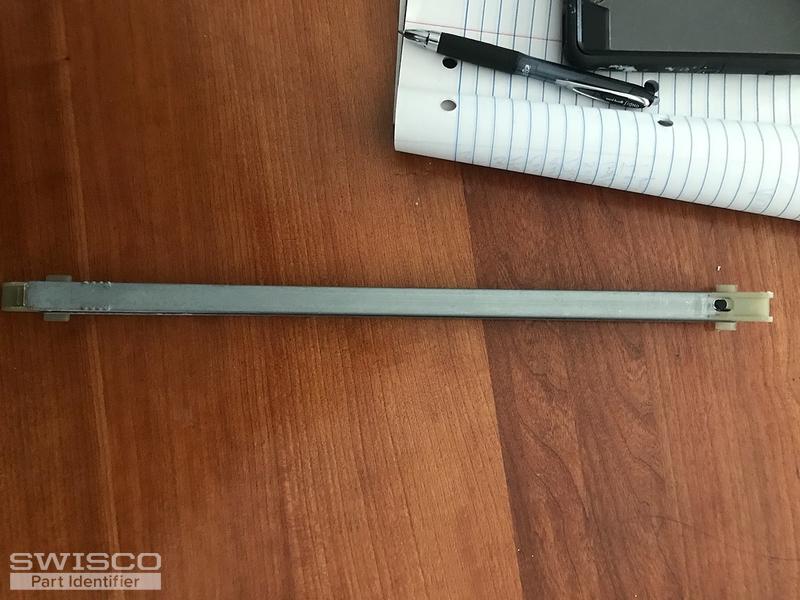

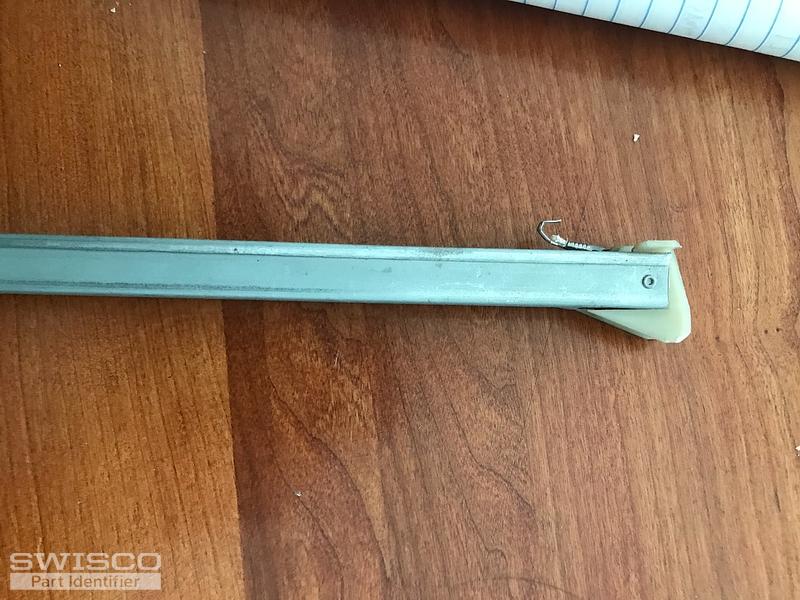

15" channel balance off of a philips window. 4 little dots at base of rod
5 user uploaded images
2 Replies
Casey from SWISCO
Nov 16, 2020 3:42 pm
With this combination of attachments, you could have either an S380-15 or S385-15 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
