15891/NAMI Patio Door/NFRC ADW-M-396 Product 311/312 Vinyl Sliding Glass Door Finless Installation 311,312

Home Owner from Toms River, New Jersey

Jul 7, 2023 12:49 am

I would like to order a replacement handle/lock kit. Kindly advise if the same is available with your company, or where the same can be purchased. The above information was on a gold foil adhesive sticker found on the jam, above the left patio door.

5 Replies

Home Owner from Toms River, New Jersey

Jul 7, 2023 12:56 am

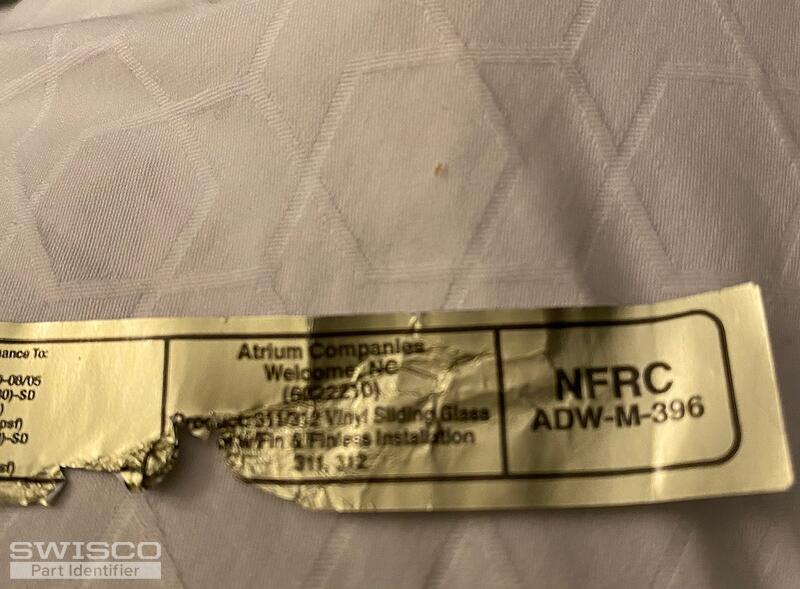

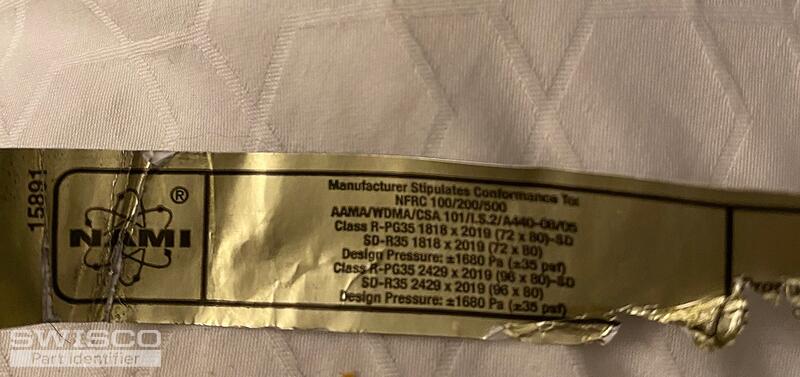

See photos of the gold foil adhesive sticker.

2 user uploaded images

Lauren from SWISCO

Jul 7, 2023 10:49 am

Hello, thank you for posting,

Unfortunately we are not able to cross reference the information provided. To further review, are you able to show us pictures of the original handle set and lock? From there we can narrow down our selection to determine if we can offer a suitable replacement option. Thank you!

Home Owner from Toms River, New Jersey

Jul 9, 2023 10:59 am

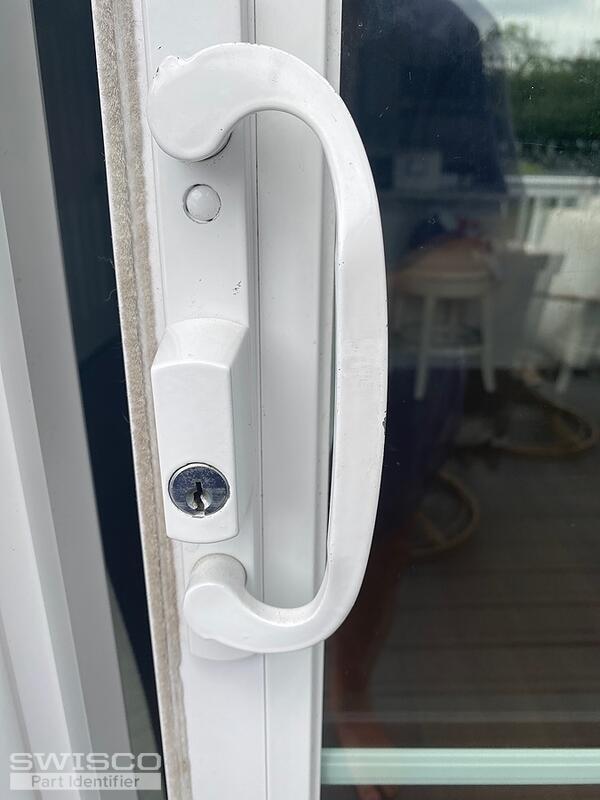

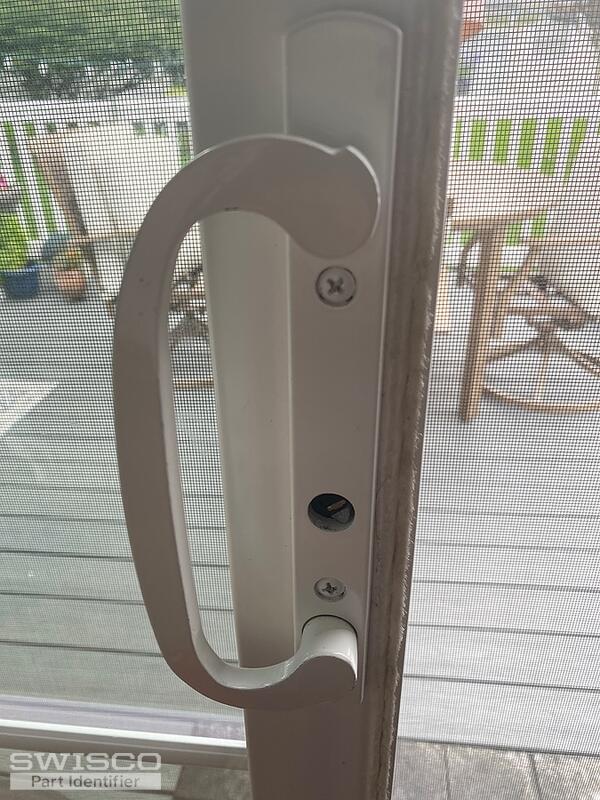

Photos of the handle.

2 user uploaded images

Lauren from SWISCO

Jul 10, 2023 7:56 am

Thank you for the additional pictures,

Please start by reviewing the 82-086 handle set that has a 3-15/16" installation hole spacing from center to center. If you only need a new locking lever, also review the 82-107 latch lever kit.

Take a look and let us know if you have any additional questions. If you also need a new internal mortise lock, we will need to see pictures. Thank you!
