Need replacement for a channel sash balance that is very similar to the 350 Series.

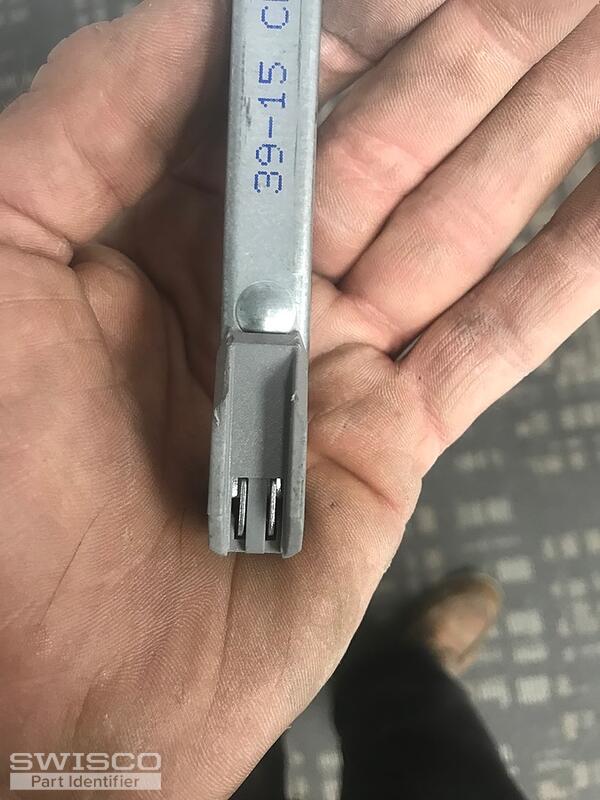

It is a 1/2" channel x 40" long. The printing on the channel is "39-15 CP5 CMC 1", and the spring (coil inside a coil) is color coded with an Orange dot and a White dot.
The top is very similar to your 19-002, per given dimensions, unsure of complete visual approval.

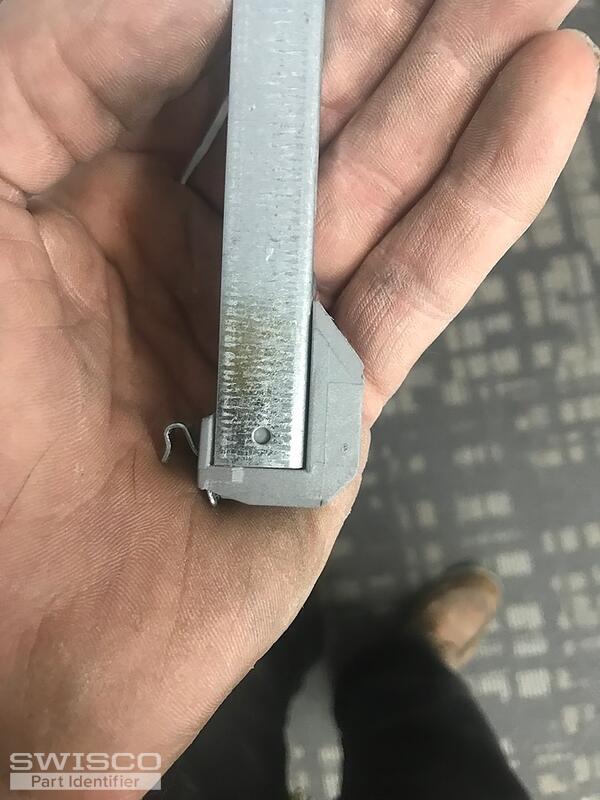

The bottom is close to your 15-004 shoe. The heel to toe is 1-3/32" but my wing span is only 11/16" instead of the 15/16".
The double pane window aluminum sash size is 31-1/2" wide x 42" tall.
There are two removal clips at the frame sash guide for each sash side. This might be an indication there is an option for 2 Channel balances, providing the need for the 11/16" shoe wing dimension.
159Main - Single Hung Aluminum Double Glazed Windows
Professional from Akron, OH
Aug 4, 2022 12:40 pm
5 user uploaded images
2 Replies
Tom from SWISCO
Aug 9, 2022 11:27 am
Hello! We can supply this balance, but it will have to be a custom order due to its unique configuration. The Series 350 cannot replace this, nor can any other standard product in our inventory.
What I'll do now is email you a purchase link and price quote that you can use to add 2 of these to your cart. You can then checkout as normal. These balances come premade and are ready to install out of the box.
Please let me know if you had any questions!
