Window Balance 16 3 ES CALDWELL

Quick Learner from Round Lake Beach, IL

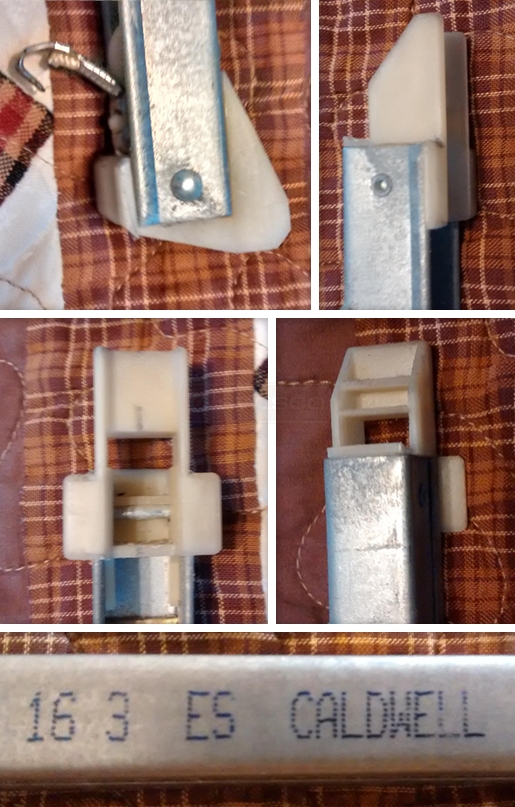

The window balance metal structure is 17" inches long with nylon type cordage. The cordage broke and I'm in need of replacements but am having a difficult time locating a direct replacement. My broken window balance has 16 3 ES CALDWELL marked on the metal portion.

Channel Balance
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert
This is S380-17 or S385-17 with a 1630 stamp option. Measure like below to choose which one. 1" shoes belong to Series 380 and 1-3/32" shoes belong to Series 385. A 1630 stamp option can hold between 12 and 14 pounds of sash.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
