16" Channel Balance marked with "15 2 ET CMC 4"

Quick Learner from Las Vegas, NV

Oct 15, 2021 10:23 pm

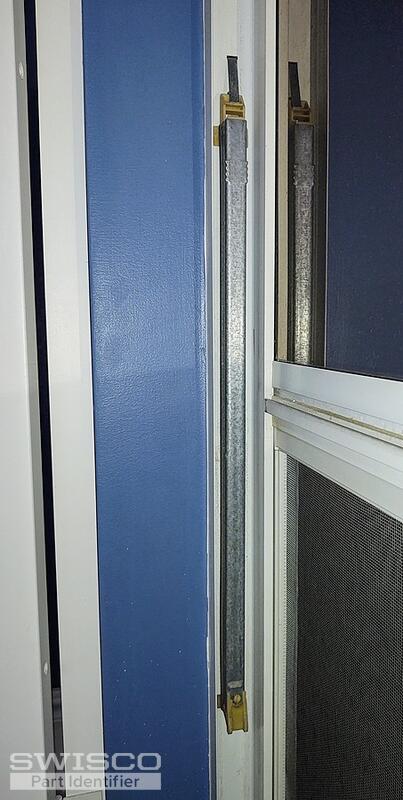

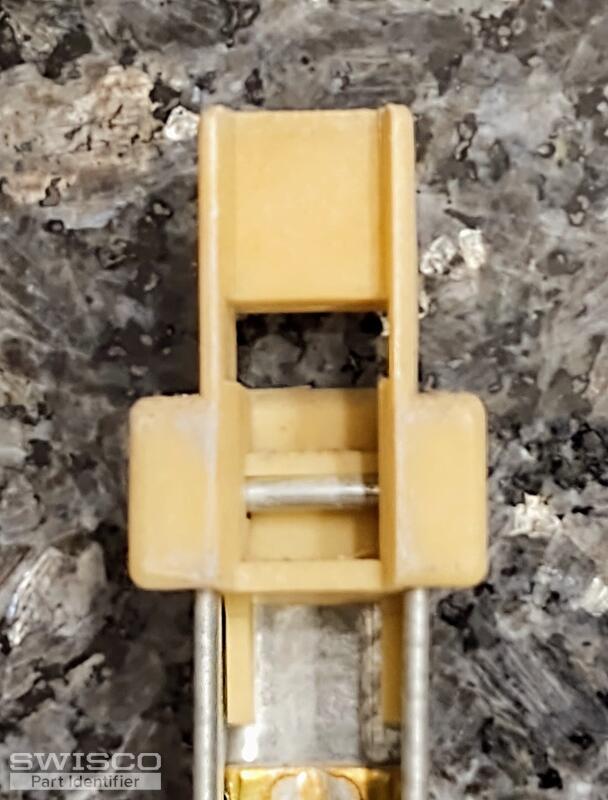

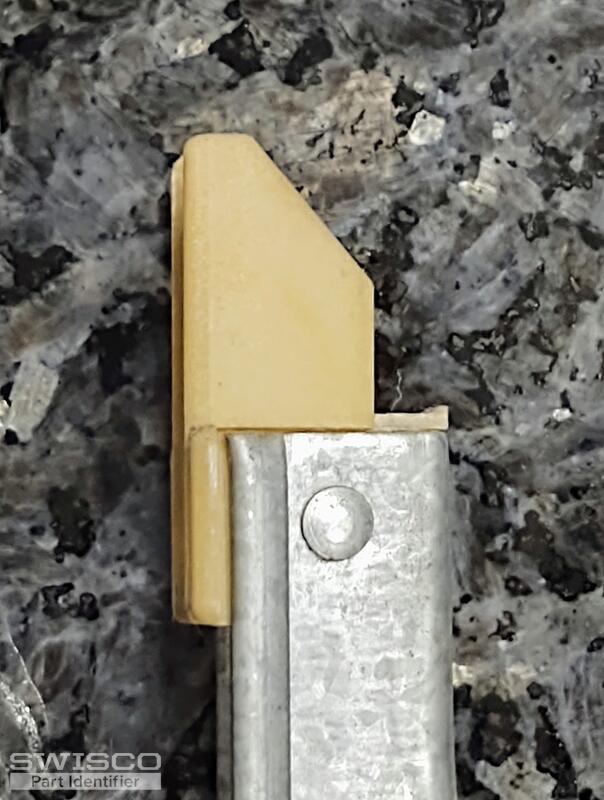

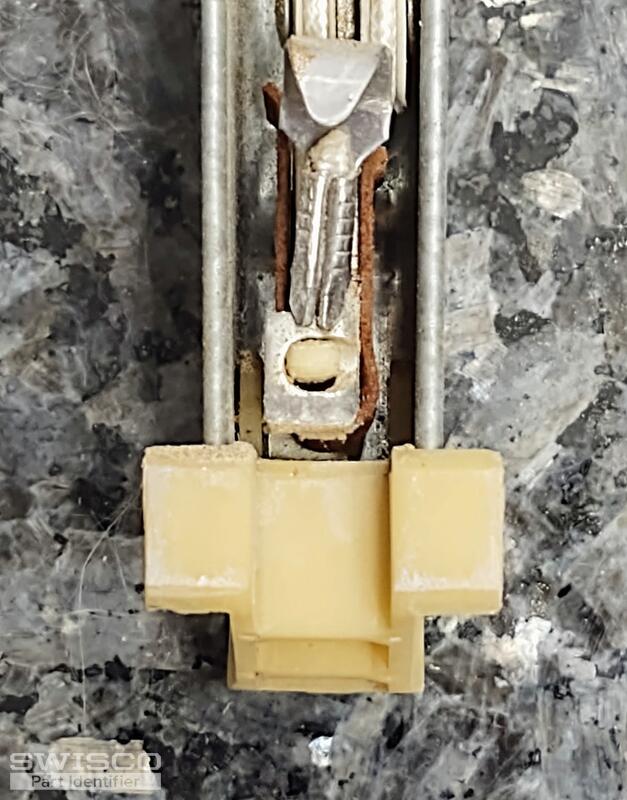

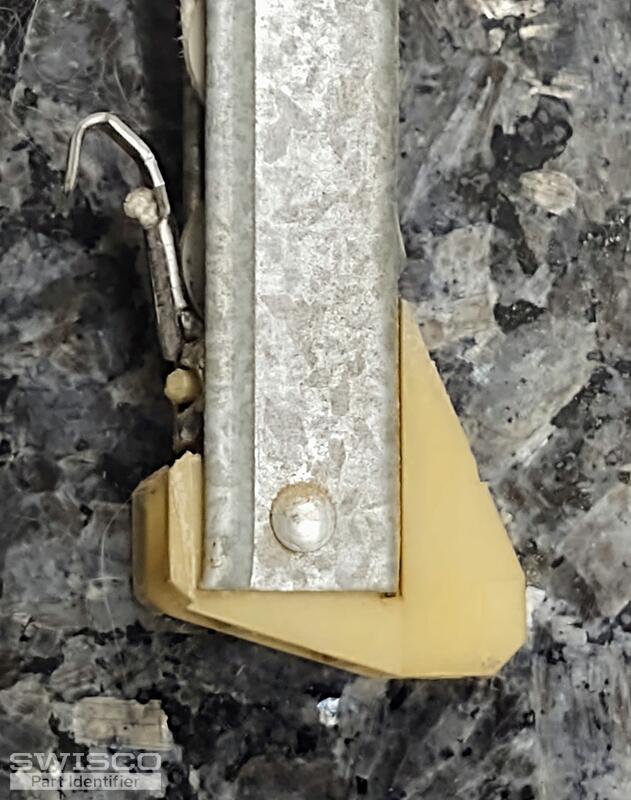

I'm trying to match up the channel balances to what I've already got installed. Enclosed are pictures and the markings on the old balances. Thanks, Jason.

5 user uploaded images

3 Replies

Quick Learner from Las Vegas, NV

Oct 15, 2021 11:00 pm

I'm thinking that I am going to need the 16" Series 385 Channel Balance with option 1520. When I measured the shoe it is about 1 1/16" with some noticeable wear on the sliding surface.

Casey from SWISCO

Oct 20, 2021 3:09 pm

Hello,

Based on your end attachments, you could have either the S380 or S385 but if your bottom shoe is over 1" deep, I agree that the S385-16 with a 1520 strength option would be the way to go. As you mentioned, the shoe can wear down a bit over time from rubbing on the window jamb. Thanks for posting!
