16 Inside pull standard. Patio doolock

Home Owner from Perth Scotland UK

Oct 3, 2020 6:43 am

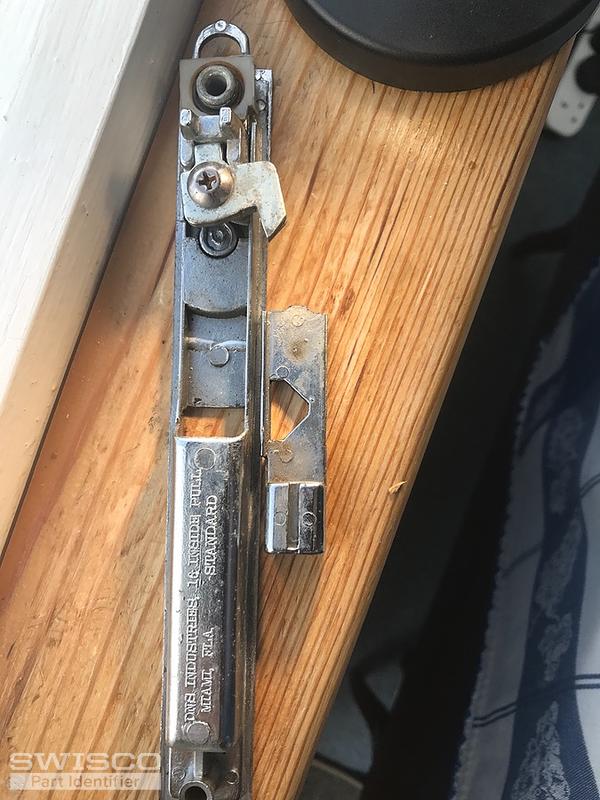

Fracture of inside plate which locks and unlocks the mechanism

Or a complete new fitting of the same dimensions to fit into the door

If you can suggest or help I would be most grateful

Thank you

2 user uploaded images

8 Replies

Bob from SWISCO

Oct 7, 2020 8:20 am

See our 82-002 or 82-008, depending on the orientation of that locking tooth. Look over the dimensions and see if one of these handle sets could work for you.

Home Owner from Perth Scotland UK

Oct 8, 2020 6:29 am

Thank you very much indeed for your response

It is much appreciated

Really to check dimensions please....

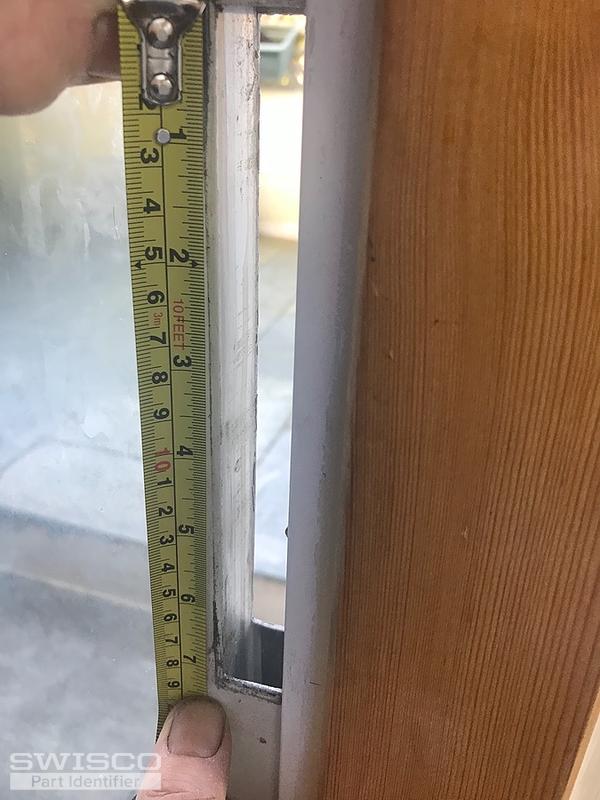

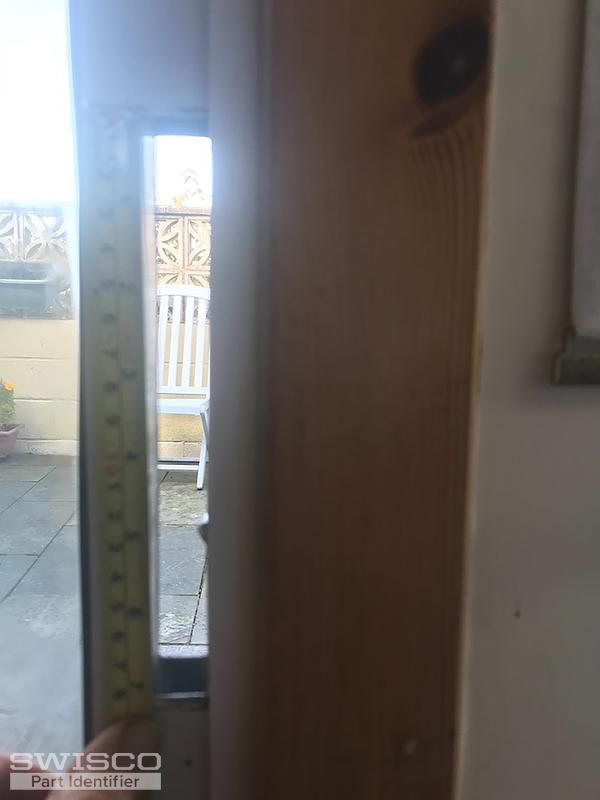

The hole in the sliding door is 7 1/8 inches by 3/4 inch and the existing lock fitting is

7 3/8 by 7/8 inch

The measurement from screw hole to screw hole is 6 5/8 inches

Does that seem ok for replacement to you?

I do understand the existing one is really ancient,..... like me

Thank you again

Chris

4 user uploaded images

Bob from SWISCO

Oct 8, 2020 8:27 am

The hole spacing is what's most important here. I am pretty confident that the 82-002 will work for you in this case. The 82-008 might as well, but note that its locking tooth is pointed 'downwards', while yours is upwards as with the 82-002. Adjusting the keeper could make up for this, but in general I like going with a replacement that has the original configuration just to be safe. Let me know what you think.

Home Owner from Perth Scotland UK

Oct 8, 2020 11:48 am

I don't know if you received my response which I just sent just now but just to thank you for your help
I have ordered the82-002 and I'm sure that will resolve my problem
.......and as I said good luck with everything in these difficult times

Chris Andrews

Bob from SWISCO

Oct 8, 2020 12:57 pm

Hey Chris, thanks for letting me know. Let us know how you make out, and hope you and yours are safe as well.

Home Owner from Perth Scotland UK

Nov 3, 2020 5:32 am

I just want to thank you for your help and attention.
What fantastic service I received from you.

Just a small problem but your assistance resolved it and I am delighted
Thank you so much
Chris

Bob from SWISCO

Nov 4, 2020 10:00 am

Chris, thank you for your very kind words. We're always glad to help. Let us know if you need anything else, and many thanks for your business.
