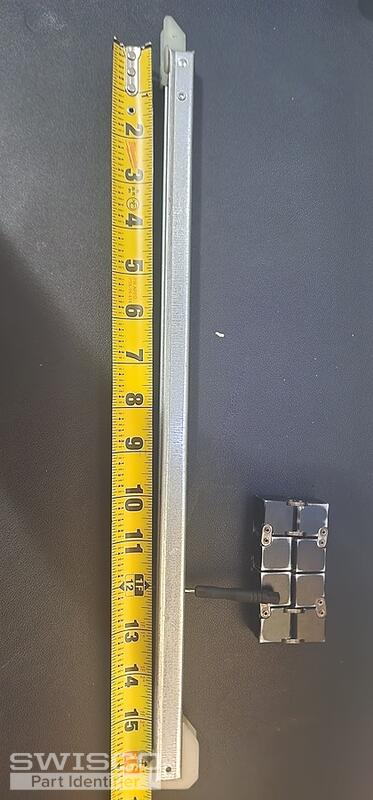

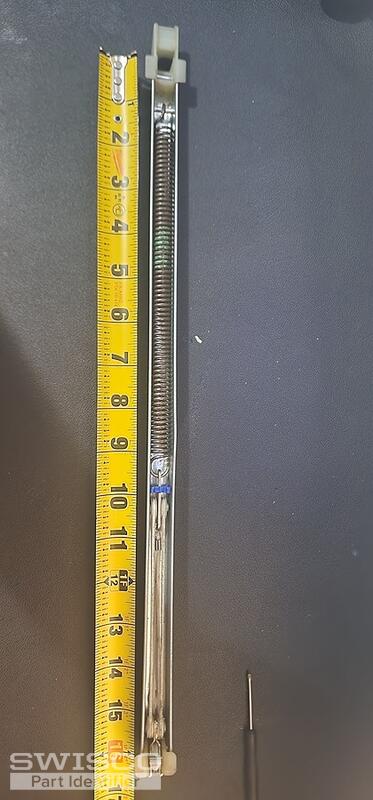

From metal to metal 16 inches.
There are no visible stamps to help identify the window balance.

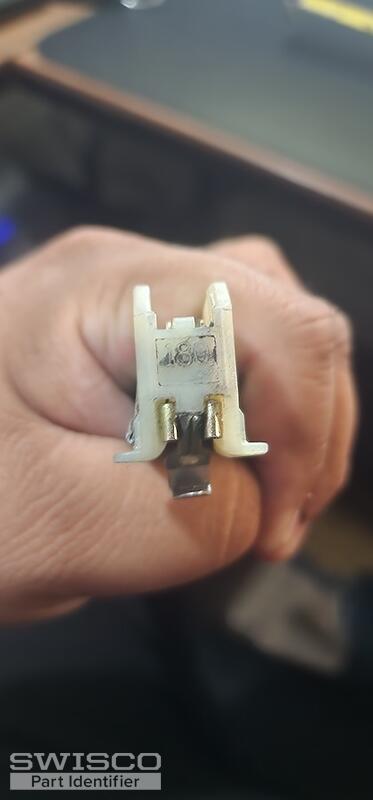

Only a 180 value is molded on the plastic on the bottom of the balance.
16" Window Balance need help identifying
Friend from San Diego
Dec 4, 2023 1:55 am
5 user uploaded images
3 Replies
Friend from San Diego
Dec 4, 2023 2:17 am

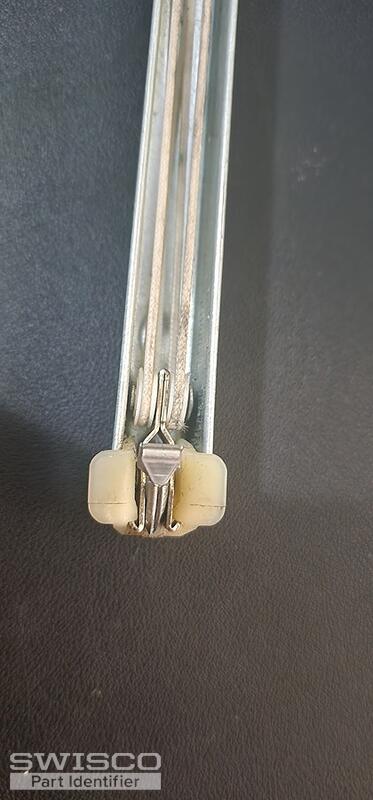

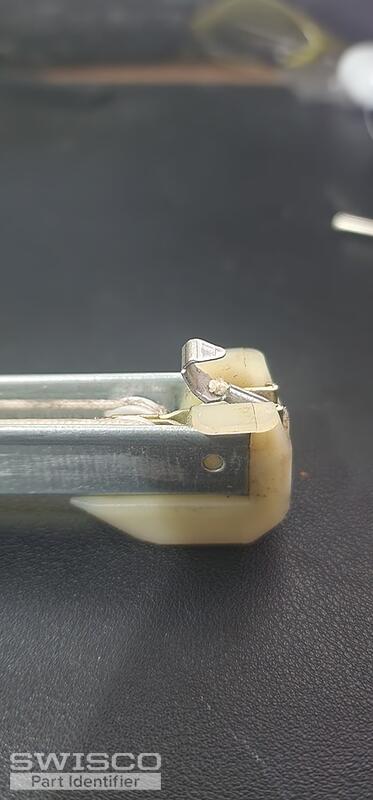

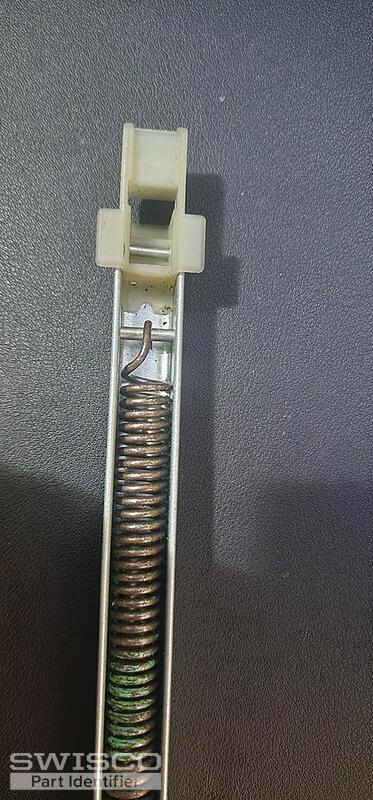

Added imaged of the stamp 180 value on the plastic. Also 2 full length images including a better image of the hook.
4 user uploaded images
Casey from SWISCO
Dec 4, 2023 4:08 pm
Hello,
We can supply your replacement balances but it will need to be a custom order due to the extended travel pulley system and unique combination of end attachments. There should be numbers stamped on the metal channel that we will need to determine the spring strength needed for your replacements. If not, we'll need to know the exact weight of your window sash that the balances support. We'll also need to know the number of balances that you need, with the minimum being two. Thank you.
